PIAGGIO X9 Evolution 500 - Page 90

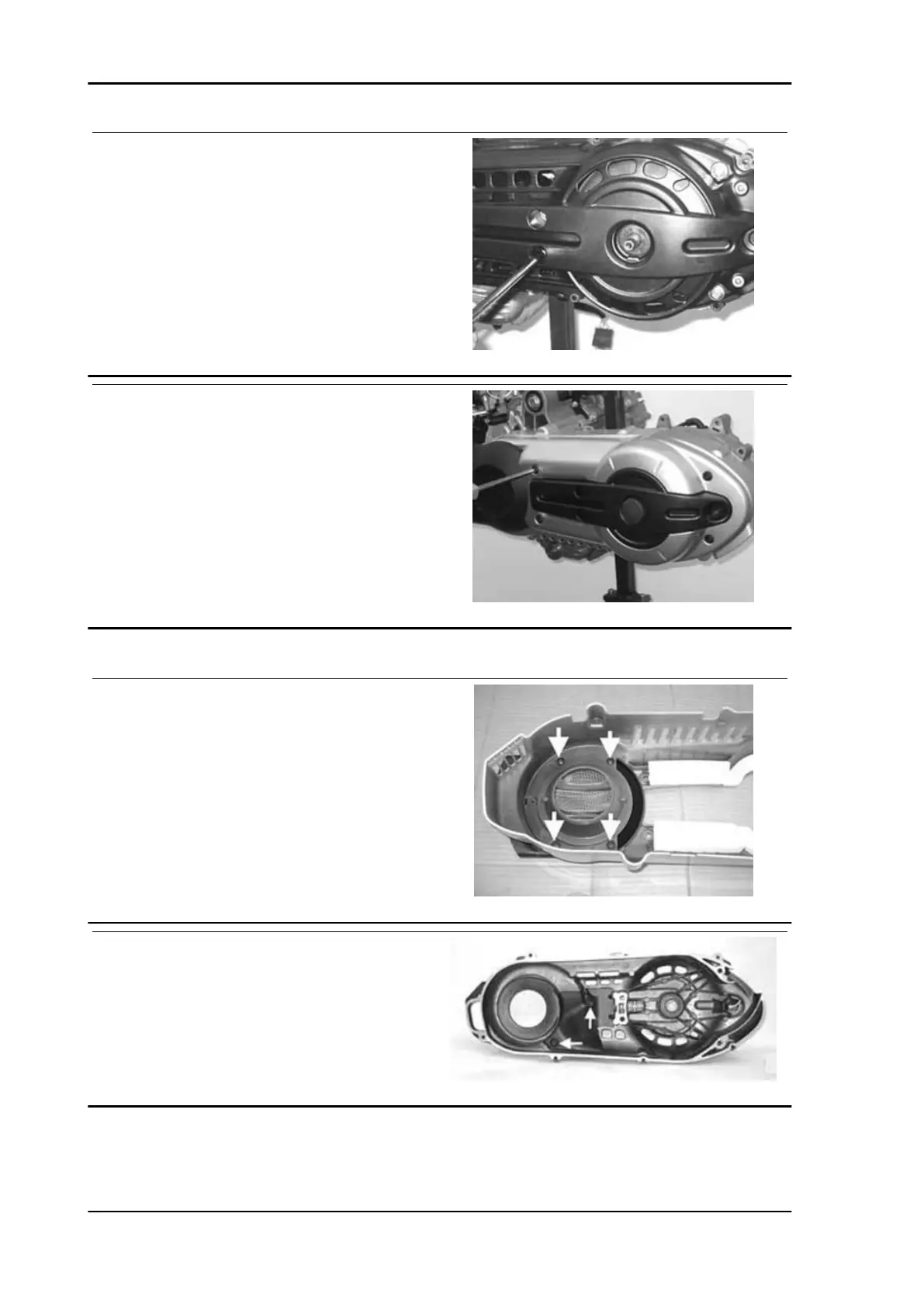

- Remove the four M8 screws.
- Remove the transmission cover.
- Check that the bearing rotates freely, otherwise
replace it.
- Loosen the 4 fastening screws
- Extract the outside plastic transmission cover.
Air duct
- Remove the external transmission cover.
- Unscrew the 4 fastening screws shown in the fig-
ure to remove the external air conveyor.
- Remove the transmission cover.
- Unscrew the two screws shown in the figure to
remove the air conveyor.
Locking torques (N*m)
Air conveyor screws 11 ÷ 12
Engine X9 Evolution 500
ENG - 90
