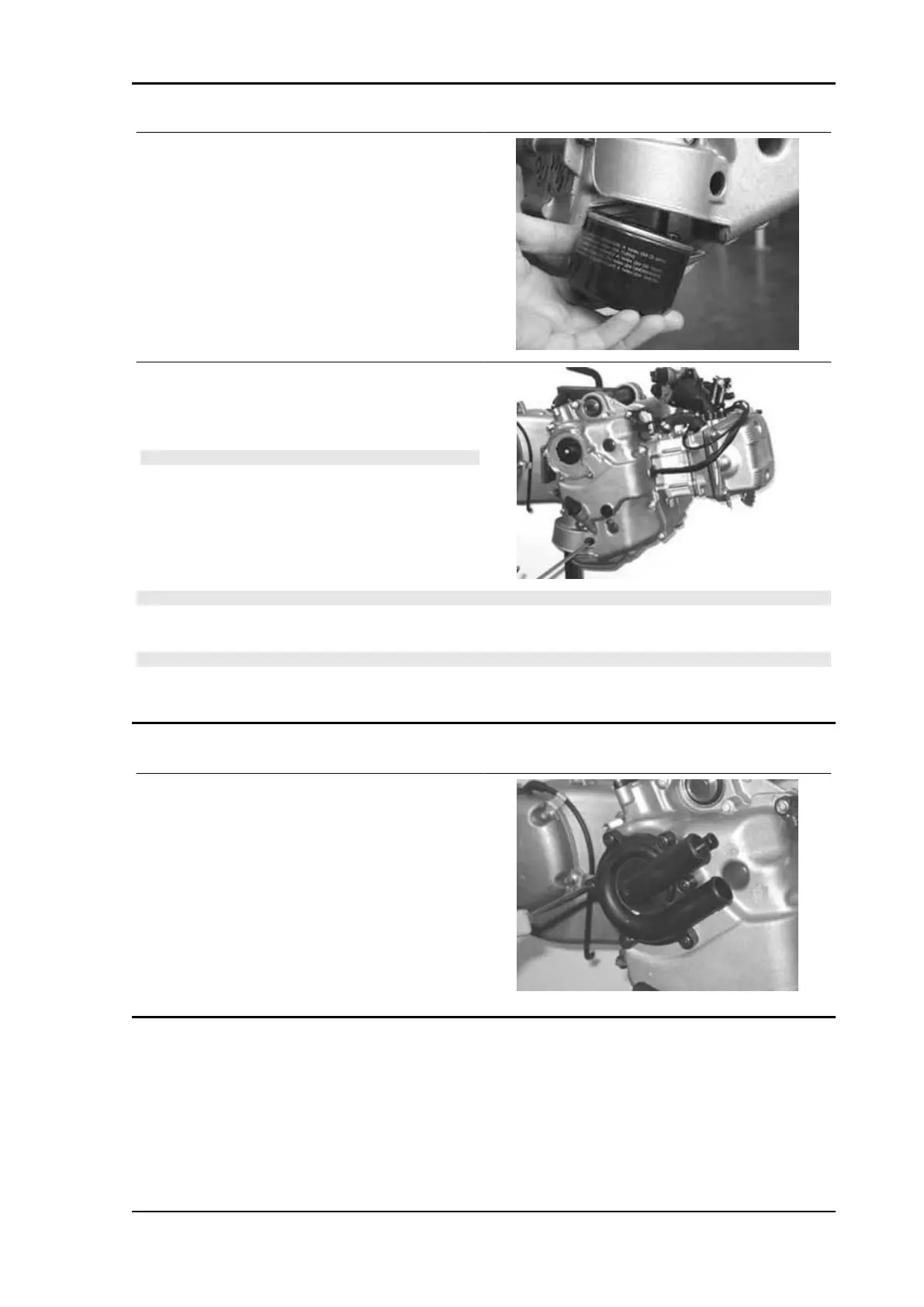

PIAGGIO X9 Evolution 500 - Page 115

- Remove the oil filter using a filter tape or shaped
cup wrench.
- Loosen the 14 fastening screws.
- Remove the flywheel cover with the relevant gas-
ket and the cooling system sleeve support.
N.B.
THE SCREWS ARE OF 4 DIFFERENT LENGTHS. NOTE
THE RELEVANT POSITIONS.
CAUTION
REMOVE THE COVER AVOIDING ANY POSSIBLE INTERFERENCE BETWEEN STATOR AND
ROTOR.
CAUTION
BE CAREFUL TO PREVENT SLIPPAGE OF THE BY-PASS VALVE AND OF THE RELEVANT
SPRING.
Removing the flywheel cover components
- Loosen the six mounting screws and remove the
water pump cover.
X9 Evolution 500 Engine
ENG - 115
