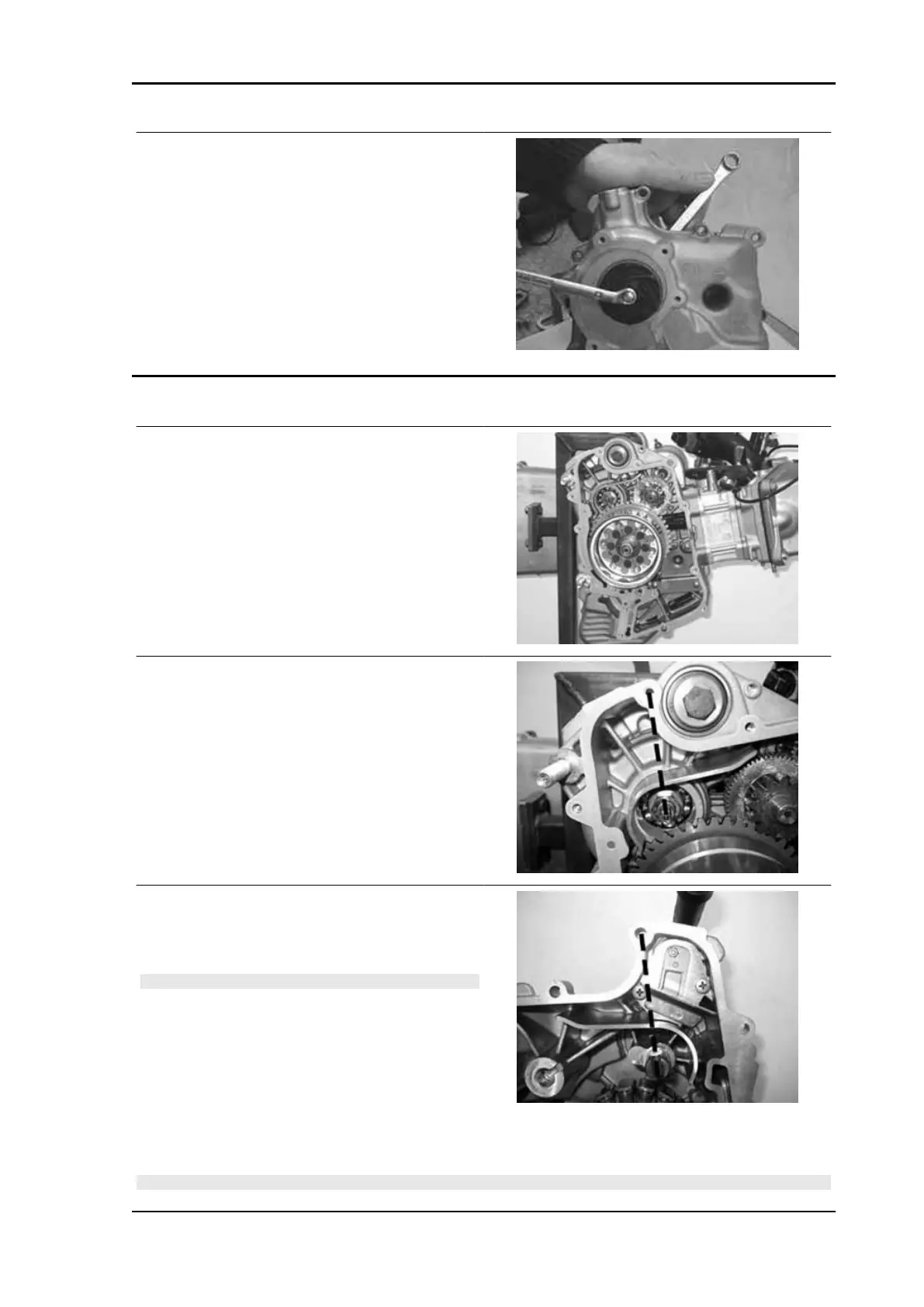

- Screw the impeller and tighten to the prescribed
torque.
Locking torques (N*m)
Water pump impeller 4 ÷ 5
Refitting the flywheel cover
- Install a new gasket on the engine crankcase.
- Check the presence of the three centring dowels.
- Turn the crankshaft in order to align the counter-
shaft movement sensor with a reference point on
the crankcase (see figure).
- Repeat the alignment for the water pump crank-
shaft using the same reference point on the en-
gine.
N.B.
THIS PREPARATION IS USEFUL PARTICULARLY IN THE
EVENT OF REPAIRS WITH THE WATER PUMP COVER IN-
STALLED.
- Install the flywheel cover on the engine, paying attention to avoid interference between the stator and
rotor.
WARNING
X9 Evolution 500 Engine
ENG - 125
