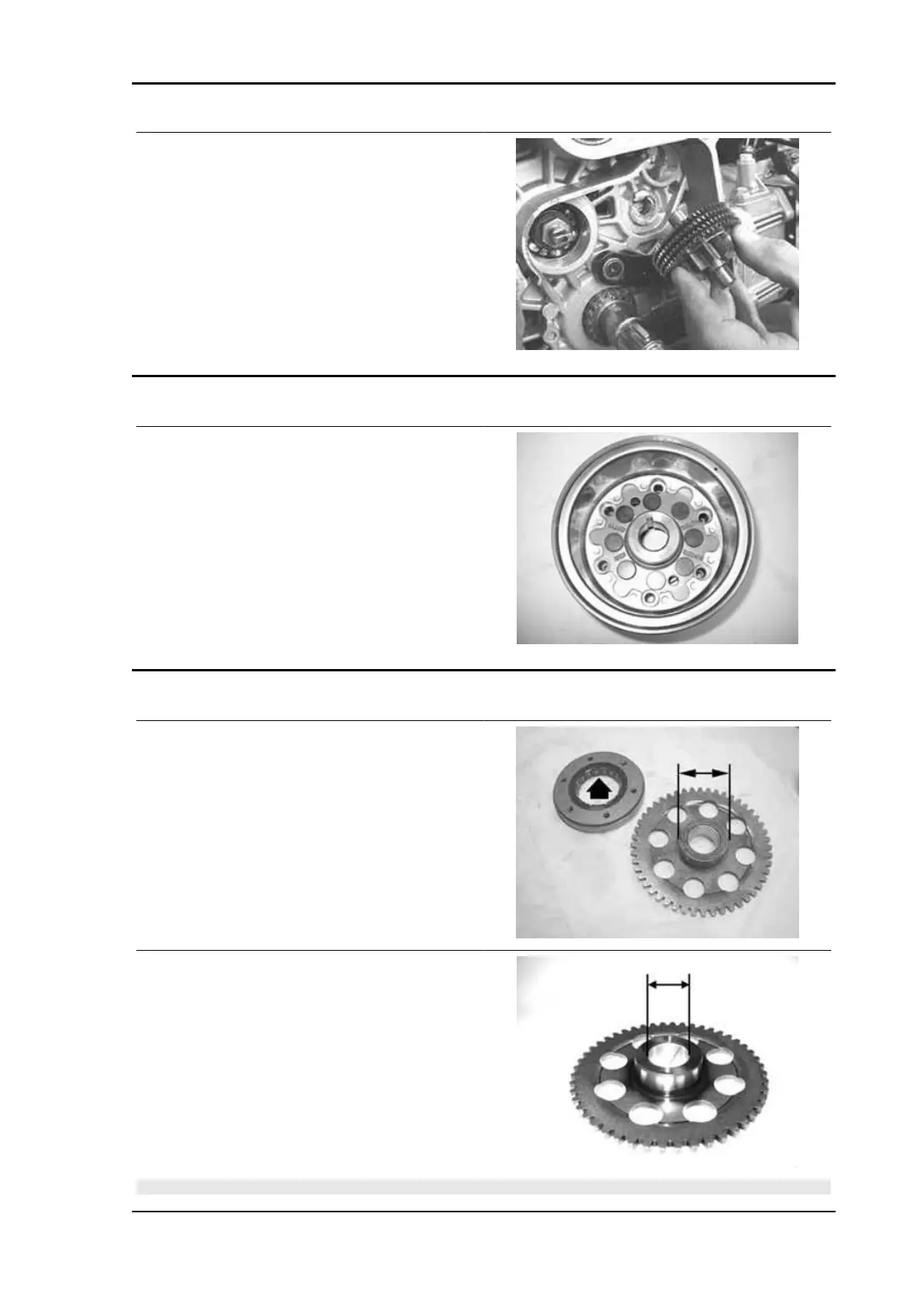

- Extract the intermediate gear provided with tor-
que limiter.
Inspecting the flywheel components
- Check the integrity of the magnets.
- Check that the magnet support cage is free from
deformation or cracks.
- Check that the flywheel splines exhibit no loos-
ening.
Starter gear rim
- Check that there is no wear or abnormal impres-
sions on the "rollers" of the freewheel and on the
surface of the starter ring gear hub.
- Check the hub outside diameter.
Characteristic
Hub outside diameter:
Diameter 45.665 + 0.008 +0.005 mm
- Check the inside diameter of the bushing of the
starter gearing.
- Check that the toothing is not worn.
Characteristic
Inside diameter of the bushing:
Diameter 27 + 0.020 +0.041 mm
N.B.
