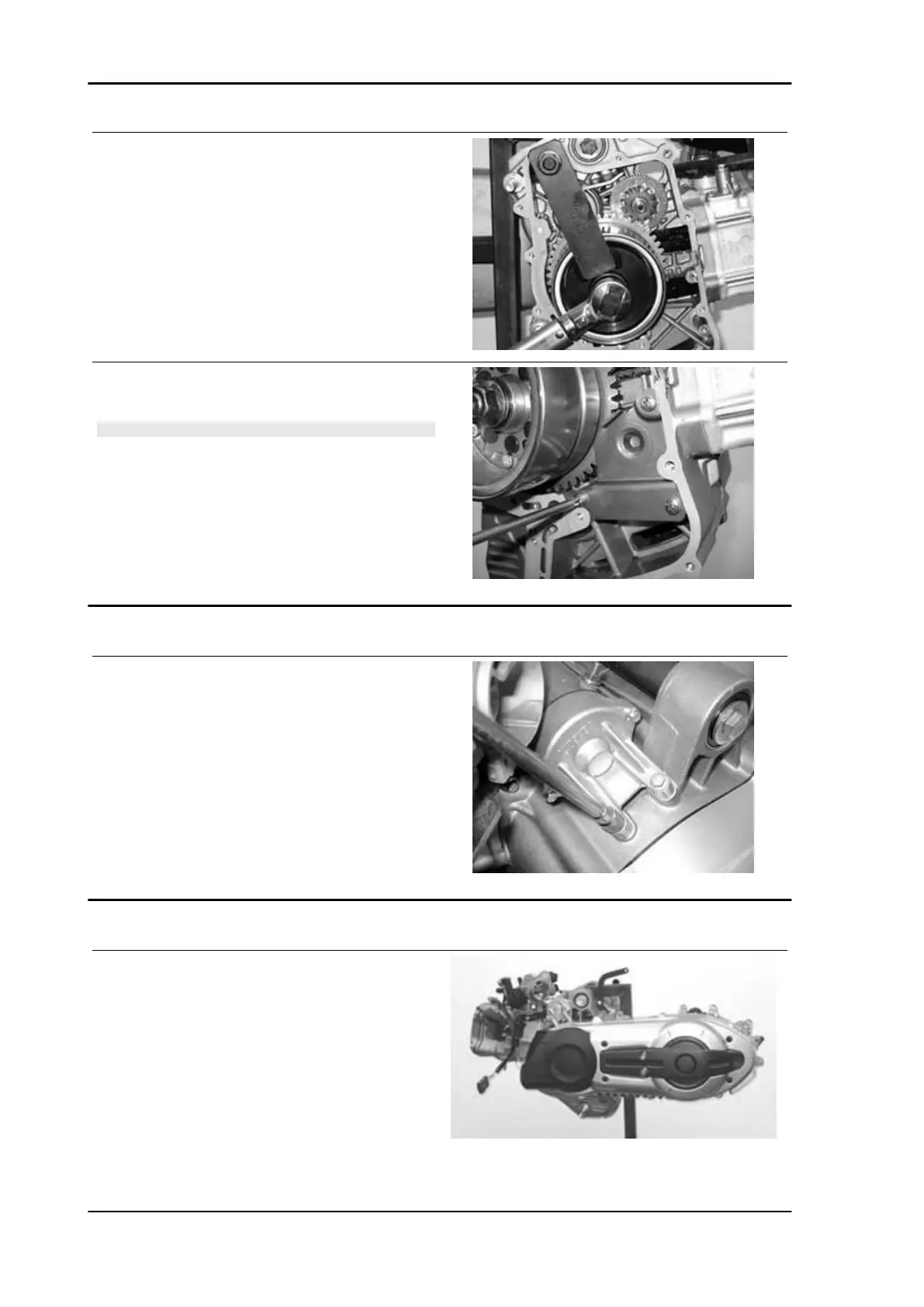

- Tighten the flywheel lock nut to the prescribed
torque.
Locking torques (N*m)
Flywheel fixing nut 115 - 125
- Install the chain guide retain plate tightening the
3 screws to the prescribed torque.
N.B.
BEFORE TIGHTENING THE SCREWS, MOVE THE START-
UP RIM IN CONTACT WITH THE CRANKCASE AND CHECK
THAT IT IS FREE TO ROTATE IN ANTICLOCKWISE DIREC-
TION.
Locking torques (N*m)
Chain guide sliding block retain plate fasten-
ing screws 3 ÷ 4
Refitting the starter motor
- Check that the O-ring is in good working order
and lubricate it.
- Insert the starter motor.
- Tighten the 2 fastening screws to the prescribed
torque.
Locking torques (N*m)
Starter motor screws 11 ÷ 13
Cylinder assy. and timing system
- Remove the external and internal transmission
cover.
Engine X9 Evolution 500
ENG - 138
