- Disconnect the HV cable from the spark plug.
- Disconnect the alternator cable from the electrical system of the scooter.
WARNING
BE VERY CAREFUL WHEN HANDLING FUEL.
CAUTION
WHEN INSTALLING THE BATTERY, ATTACH THE POSITIVE LEAD FIRST AND THEN THE NEG-
ATIVE LEAD.

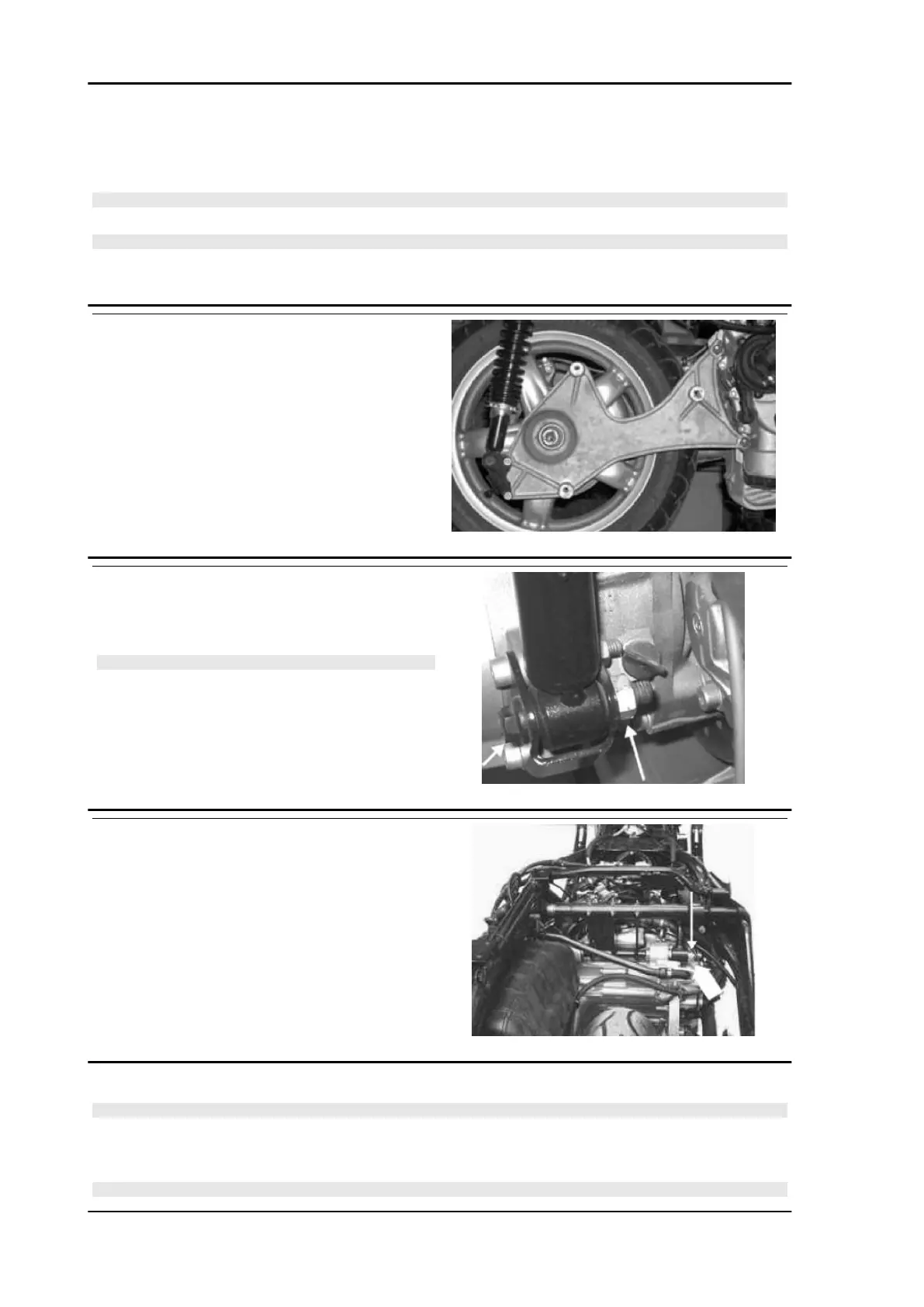

Removing the support arm
- Release the lower fixing bolt of the right shock
absorber from the support arm.
- Loosen the 2 screws fixing the arm to the engine.
- Remove the shim adjustment and release the
wheel axle nut; to prevent rotation, use the integral
brake keeping the LH lever pulled.
- Remove the support arm.
Removal of the lower bolt from LHS shock-ab-
sorber
- Remove the bolt shown in the figure.
N.B.
TO REMOVE THE SHOCK ABSORBER SUPPORT, RE-
MOVE THE TWO NUTS FROM THE BRAKE CALIPER SIDE
AND EXTRACT THE SCREWS.
Engine - swing-arm bolt removal
- Suitably support the engine.
- Remove the nut shown in the figure.
- Extract the pin.
- The engine can now be removed.
- Perform the operations for removal in the reverse order according to the proper tightening torques.
CAUTION
BE VERY CAREFUL NOT TO REVERSE THE TWO ACCELERATOR CONTROL TRANSMISSIONS.
CHECK THAT WITH VALVE IN ABUTMENT AGAINST THE REGISTER THERE IS A SMALL
CLEARANCE.
N.B.
Engine from vehicle X9 Evolution 500
ENG VE - 86
