Piazzetta E902 - Flue Gas Outlet

IMPORTANT INFORMATION:
- Pipes with diameter 14 cm;
- 5 cm must be deducted for each joint;
40 min.
I
nflammable or heat
s
ensitive surface
W
all rose
P
ipes
20
2
0
20
FLUE
E
D
F
C
H
DT2030739-00
F
ig. 25
9
5
TR100
DT2030060-00
T100
9
5
DT2030256-00
T50T50
90
DT2030201-00
2
5
2
5
C
6
DT2030200-02
Approx. calculation of height “F”
Example on stove e902 with a single one-metre pipe“T100” and one elbow “C6”
92 + 100 - 5 + 25 = 212
C (Stove joint) Pipe length Pipe joint Elbow C6 F
Make the hole for connection to the flue at a height of 212 cm
Then fix the wall connector pipe and the trim collar. (Fig. 24)
Approx. calculation of the section of vertical pipe knowing “F”
Example on stove e902 with F = 270 cm
270 - 92 - 25 + 5 = 158
F C (Stove joint) Elbow C6 Pipe joint Pipe length
Use 2 T100 pipes to obtain a 158 cm pipe.
The 100 cm pipe should be cut to 63 cm as 158-95* = 63
Cut the pipe from the spigot end
*95 cm is the length of the 100 cm pipe less the joint.
TABLE TOP FLUE GAS OUTLET (Measurements in cm)
Model Measurement C Measurement D
e902 92 43
e905 62 41
1.1 NORMATIVE DI RIFERIMENTO
DT2011633-0
1.10 Flue gas outlet
Ensure that everything is installed in a workmanlike manner.
The measurements shown in the figures are approximate,
since appliance installation is envisaged in a place where
the floor is level and the wall at right angles to the floor.

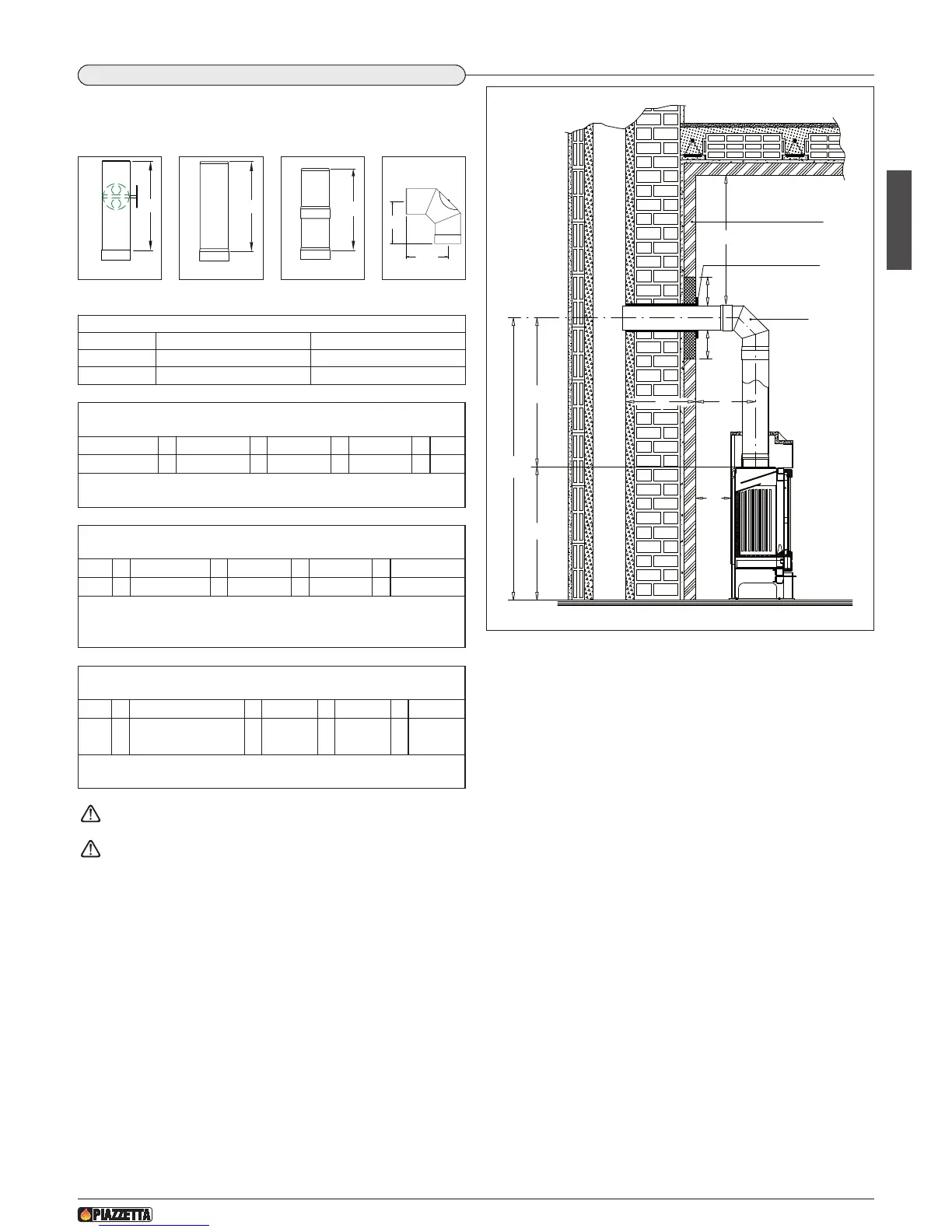

TOP FLUE GAS OUTLET (Fig. 25)
Approx. calculation of the section of horizontal pipe knowing “E”
Example on stove e902: E = 50 (cm)
50 + 43 - 25 + 5 = 73
E
D (Distance between
wall/vertical pipe axis)
Elbow C6 Pipe joint Pipe length
One 100 cm pipe “T100” should be cut to 73 cm
Cut the pipe from the spigot end
H07020660 / DT2000245 - Rev. 03
33
