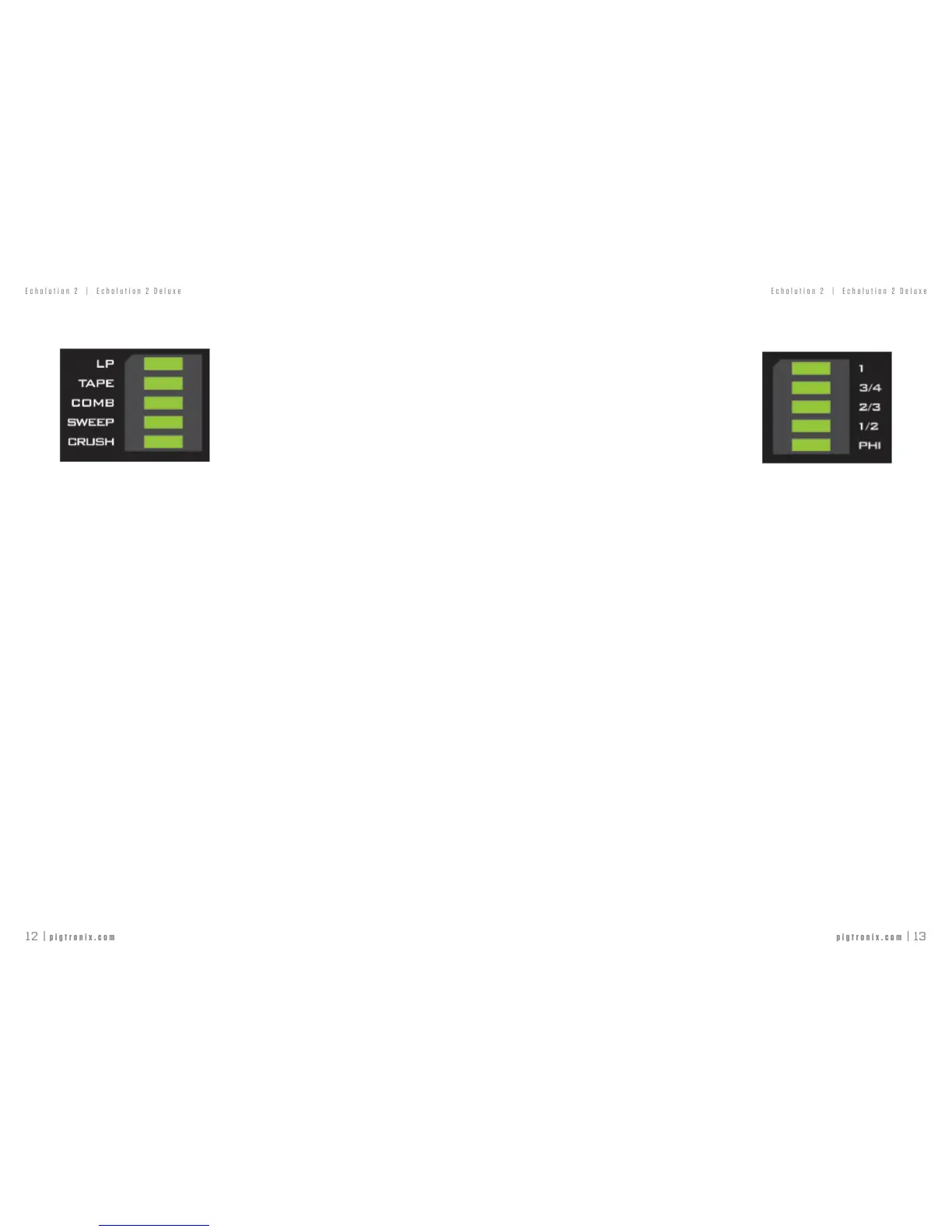

TOUCH SWITCHES — FILTERS
SHORT PRESScyclesbetween:
LP(LowPassFilter)
TAPE(AnalogTapeemulator)
COMB(AllPassCombFilter)
SWEEP(ResonantSweep)
LP+SWEEP
TAPE+SWEEP
COMB+SWEEP
NOFILTER
WhenCOMBorSWEEPisactive,thoseltersareanimatedataratedeterminedbytheLFO
SPEEDknob.TryusingtheLFOSYNCtoTAPfunctionforsomeincrediblesynchronizedlter
anddelayeffects(SeeTouchSwitches:LFOWaveformsformore).
LONG PRESSturnsontheCRUSHlter.Thisisaproprietarybitcrusher/destruction
lterthatsmashestheaudiointhedelaylineaccordingtohowloudtheinputsignalis.
Note:OntheE2FILTERPRO,CRUSHisreplacedbyHALO.
BOOT OPTION: PHASE INVERSIONofthedelaysignalatOutput2
canbetoggledbyHOLDINGtheFILTERswitchduringtheboot-upprocess.
TOUCH SWITCHES — MULTI-TAPS
SHORT PRESScyclesbetween:
1-delayoutputmatchesthetaptempo/delaytime
¾-delayoutputis¾ofthetaptempo/delaytimevalue
2/3
-delayoutputis
2/3
ofthetaptempo/delaytimevalue
½-delayoutputis½ofthetaptempo/delaytimevalue
PHI-delayoutputis0.382ofthetaptempo/delaytimevalue...thissignaturefeature
createsrhythmicechopatternsbasedonthemathematicsoftheGoldenRatio.
LONG PRESS‘locks’thecurrentlyselectedtapoptionandaddsasecondtap.The
lockedtapremainsatthepreviouslychosenvalueandthesecondtapwillnowmovewith
eachSHORTPRESS,cyclingthroughtheavailableremainingoptions.
WhentwotapsareactiveaLONGPRESSgetsridofthesecondtapand‘unlocks’thersttap.
BOOT OPTION: DELAY OUTPUT BOOSTincreasestheMAXvalue
oftheMIXknobto+6dBabovetheinputsignal.ThiscanbetoggledbyHOLDINGtheTAPS
switchduringthepower-upprocedureoftheE2.
