Example 1: Basic shuttle working

2 vehicle phases, 2 approaches, 1 head per approach

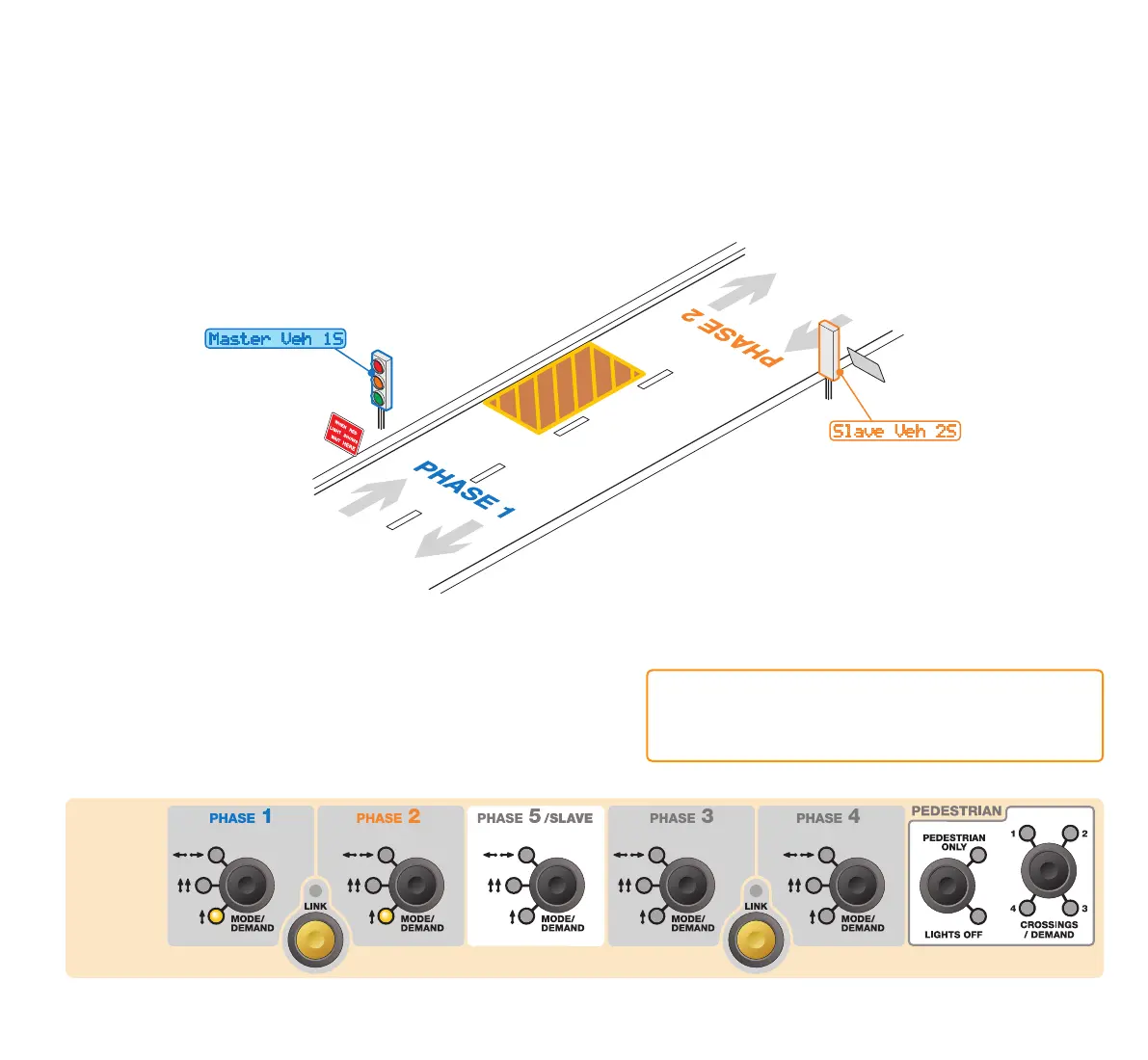

This example shows a carriageway controlled by two single-

approach phases, each with one signal head.

Master

phase

modes

Note: All junction layout examples given in this document

are meant for rough guidance only. Please refer to

Highways Agency speciﬁcations for actual signal, sign

and cone placements for any particular junction types.
