Pike Evolution Series - System Installation; Setting Up Signal Heads

5
Installation
Setting up the signal heads
1 Set up the signals with the appropriate traffic management
scheme for the prevailing roadwork site conditions.
Recommended references
The latest issues of:
• ‘Theuseofvehicleactuatedportabletrafcsignals’
(the‘PinkBook’)
• ‘Safetyatstreetworksandroadworks’
(the‘MaroonBook’)
• ‘Trafcsignsregulationsandgeneraldirections’
(TSRGD) Chapter 8

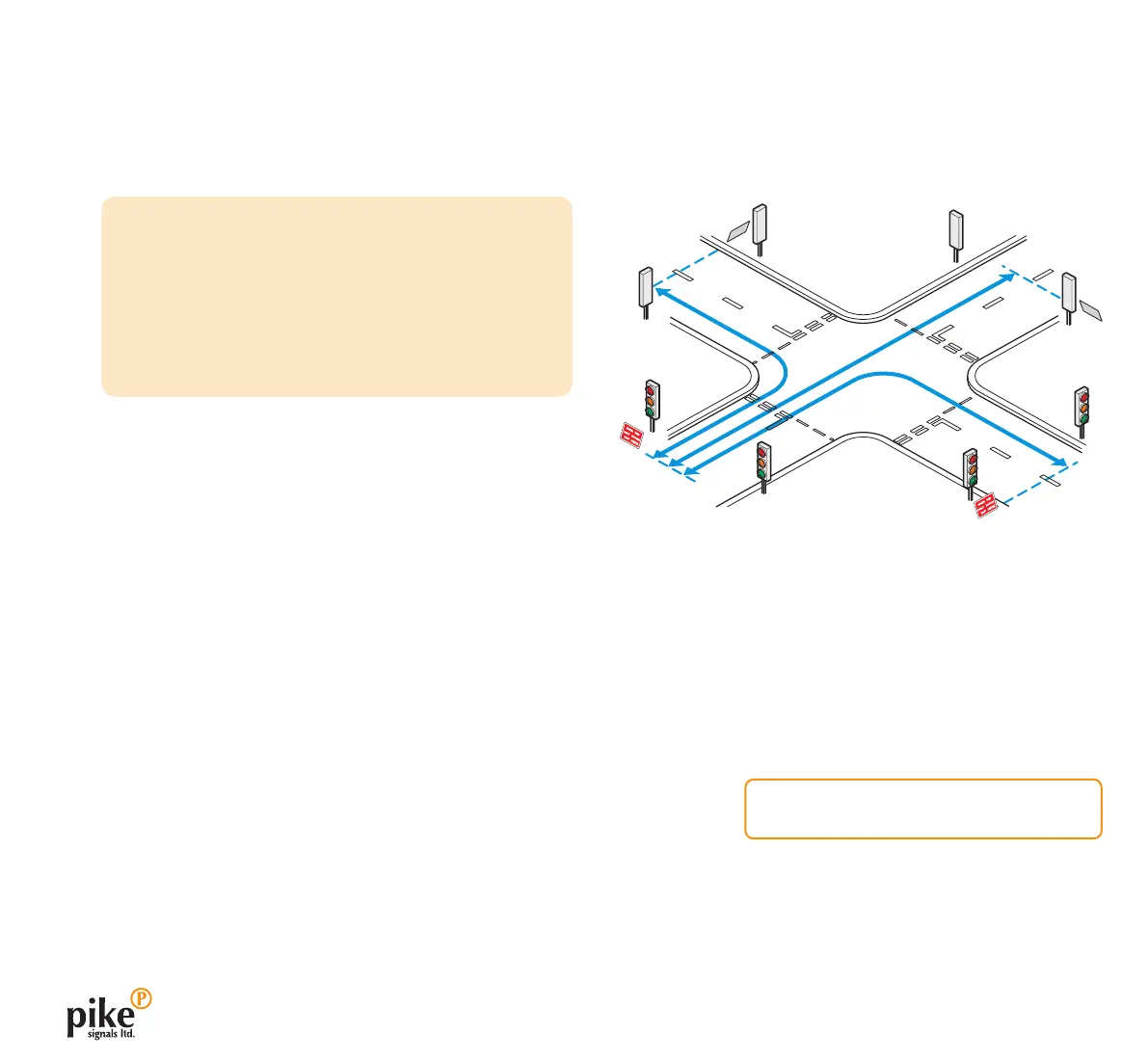

2 For each approach, measure the distance from each WAIT
HERE sign to the WAIT HERE sign furthest away.
3 Follow the system setup procedure beginning on page 6.
Please see Appendix 1, starting on page 26
for example signal head layouts.
