31

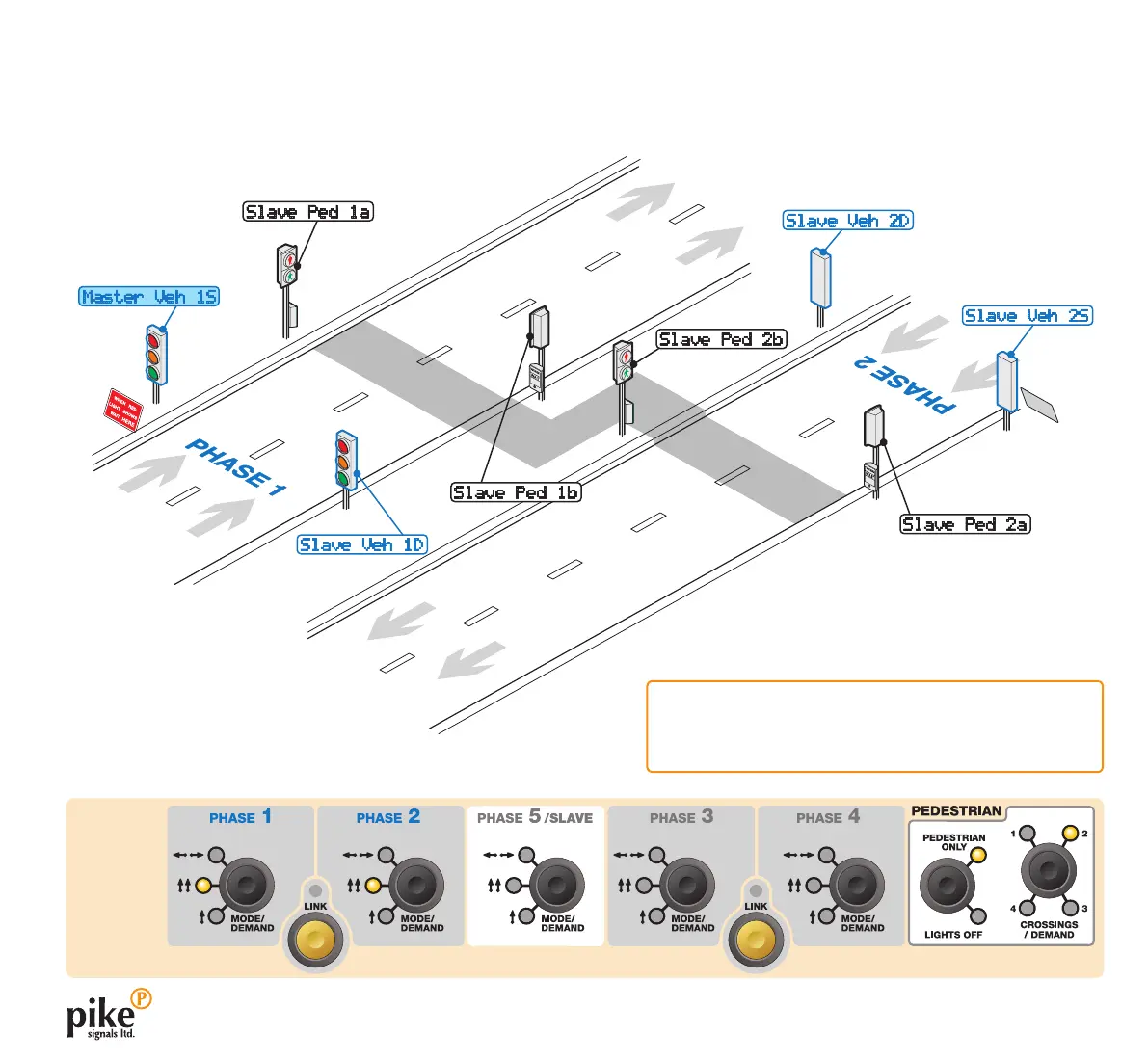

Example 5: Combined carriageway plus pedestrian crossings
This example shows two linked pedestrian crossings that are staggered across two carriageways.
The layout uses the PEDESTRIAN ONLY mode to use the most appropriate settings.
Note: When the PEDESTRIAN ONLY mode is invoked, all active phases operate as one.
Master
phase
modes
Note: All junction layout examples given in this document
are meant for rough guidance only. Please refer to
Highways Agency specifications for actual signal, sign
and cone placements for any particular junction types.
