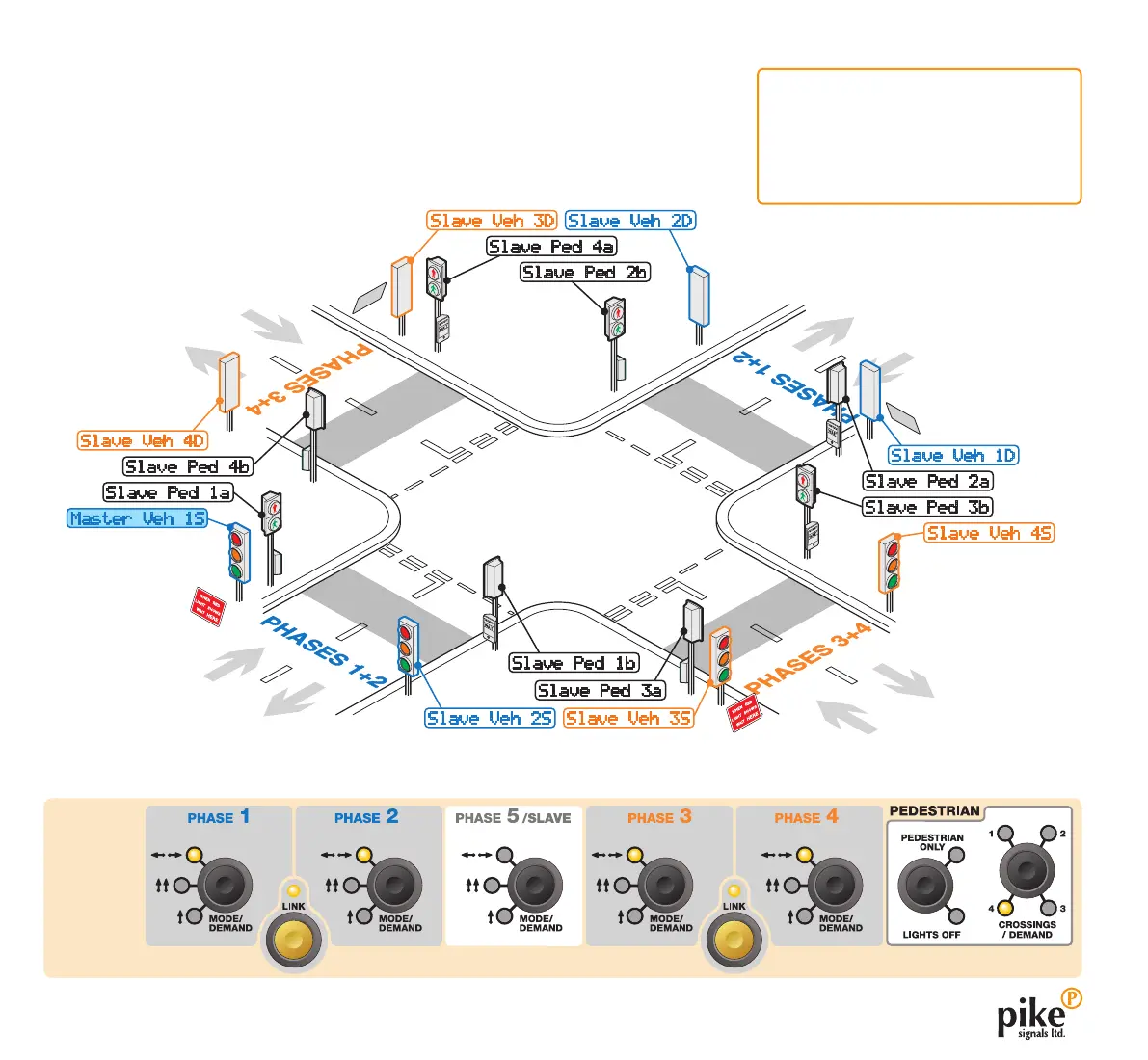

Example 6: Two-way crossroad plus pedestrian crossings

This example shows a crossroad with two vehicle (linked) phases and four

pedestrian crossings.

Master

phase

modes

Note: All junction layout examples given

in this document are meant for rough

guidance only. Please refer to Highways

Agency speciﬁcations for actual signal,

sign and cone placements for any

particular junction types.
