Example 8: Five-way staggered junction plus pedestrian crossings

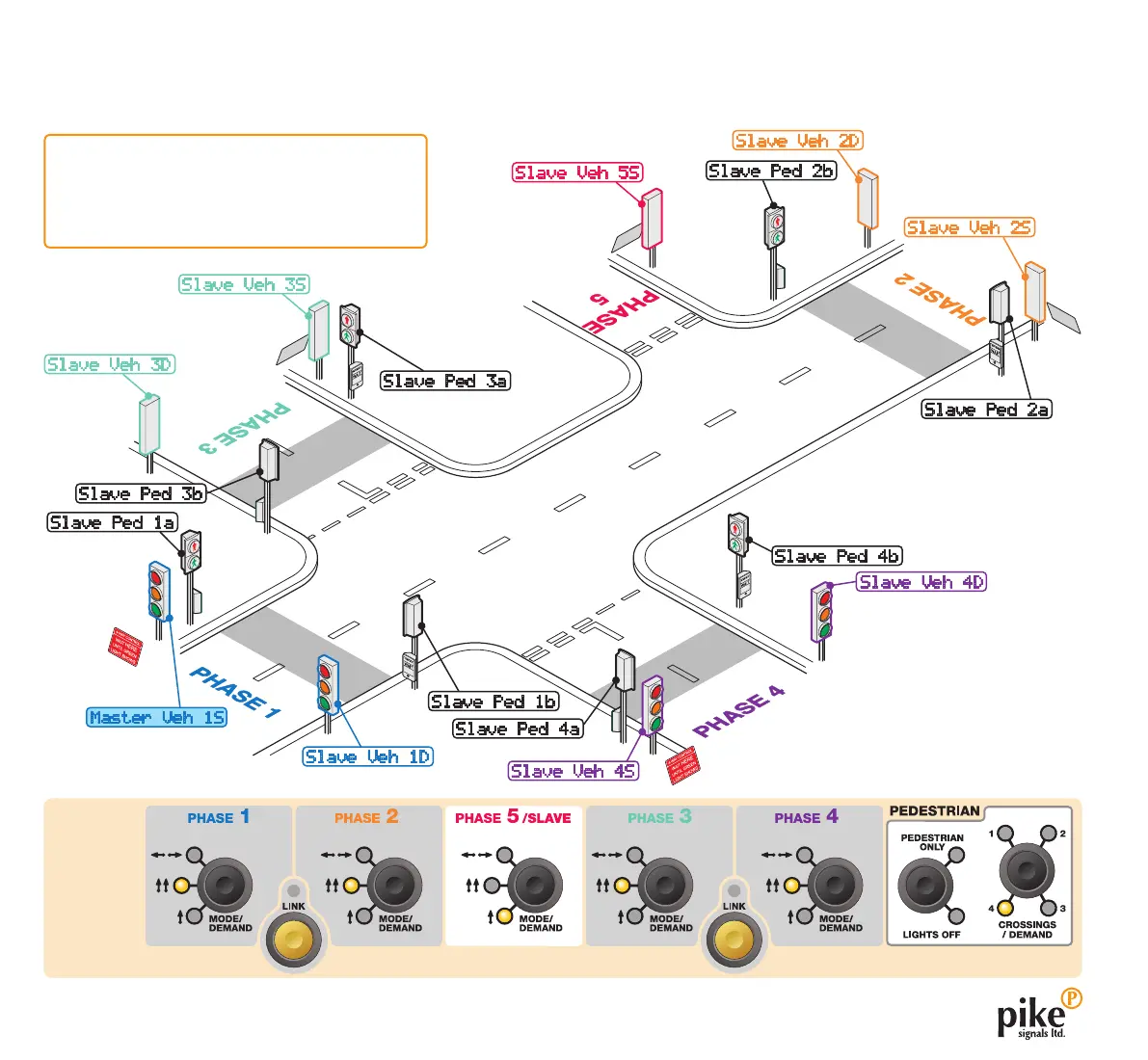

This example shows a major junction controlled using all five vehicle phases
as well as four pedestrian crossings.
Master
phase
modes
Note: All junction layout examples given in this
document are meant for rough guidance only.
Please refer to Highways Agency specifications
for actual signal, sign and cone placements for
any particular junction types.
