PNOZ e1vp
Operating Manual PNOZ e1vp
21236-EN-06
17

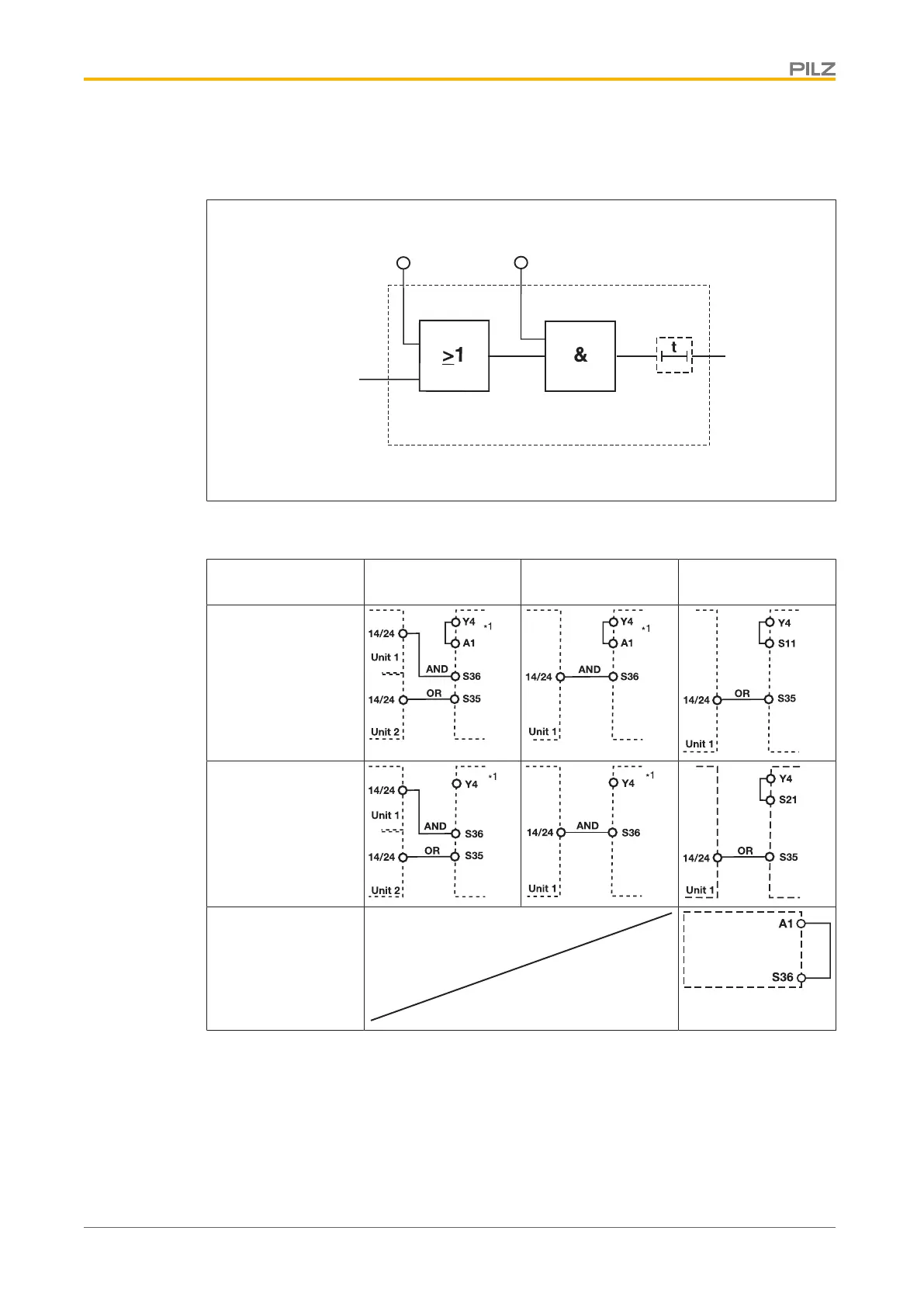

Logic input S35 and S36
The logic inputs are connected to each other as follows:
Input circuit
Safety
outputs
Logic inputs S35 and S36 from the PNOZ e1vp enable additional PNOZelog or PNOZmulti
units to be logically AND/OR connected.
Input circuit Logic AND + OR
connection
Logic AND connec-
tion
Logic OR connec-
tion
without detection of
shorts across con-
tacts
with detection of
shorts across con-
tacts
Safety output 14
delayed
ā1
Where units are linked logically, Y4 must be wired as shown here (differs from the por-
trayal on the input circuit).
