PNOZ e1vp
Operating Manual PNOZ e1vp
21236-EN-06
19

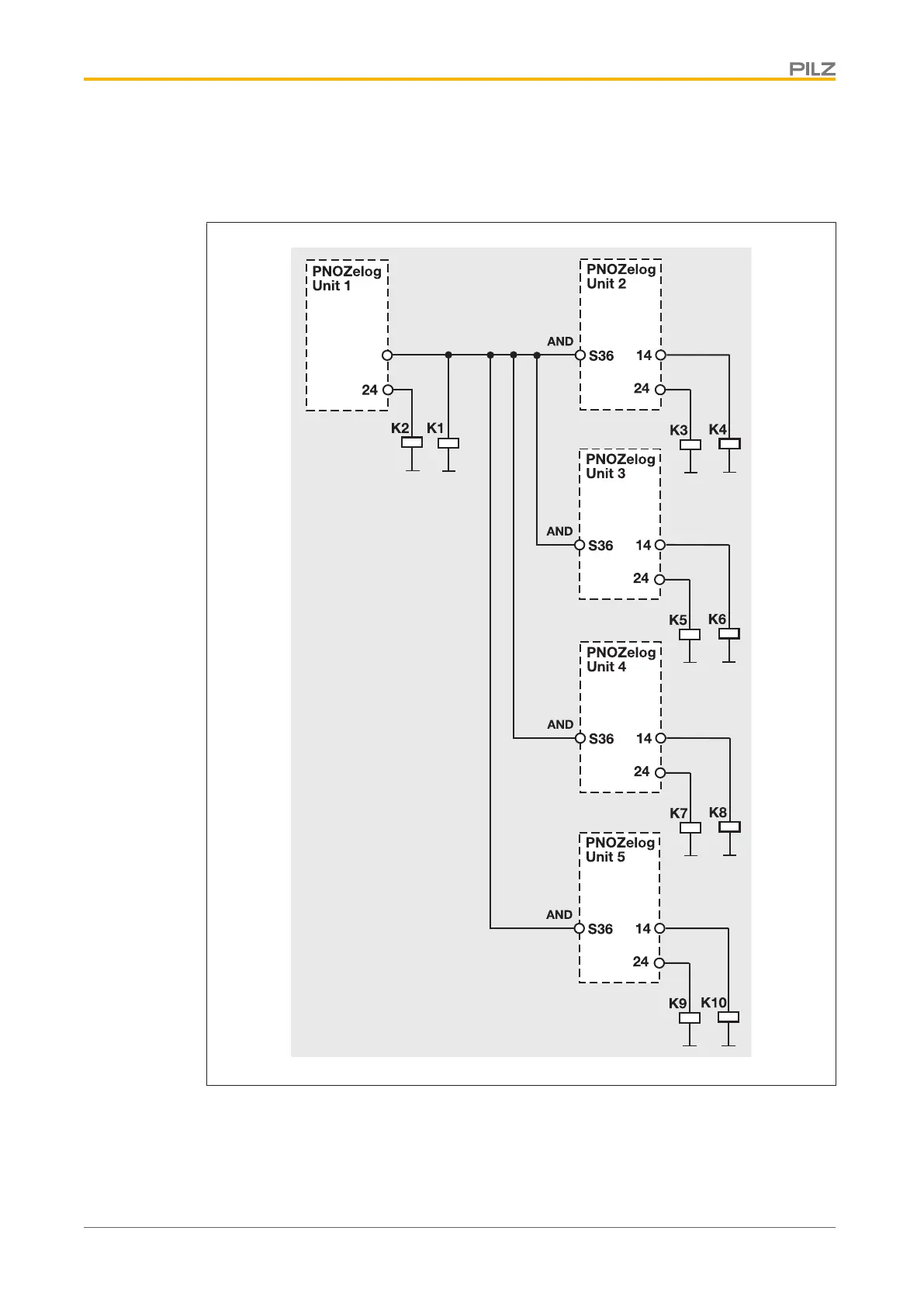

} Example 1:
Loads are connected to the safety outputs of Unit 1. In addition, a safety output is AND-
linked to 4 other PNOZelog units via the logic input S36.
14
