Commissioning
Operating Manual PNOZ m EF Multi Link
1003018-EN-06
| 16

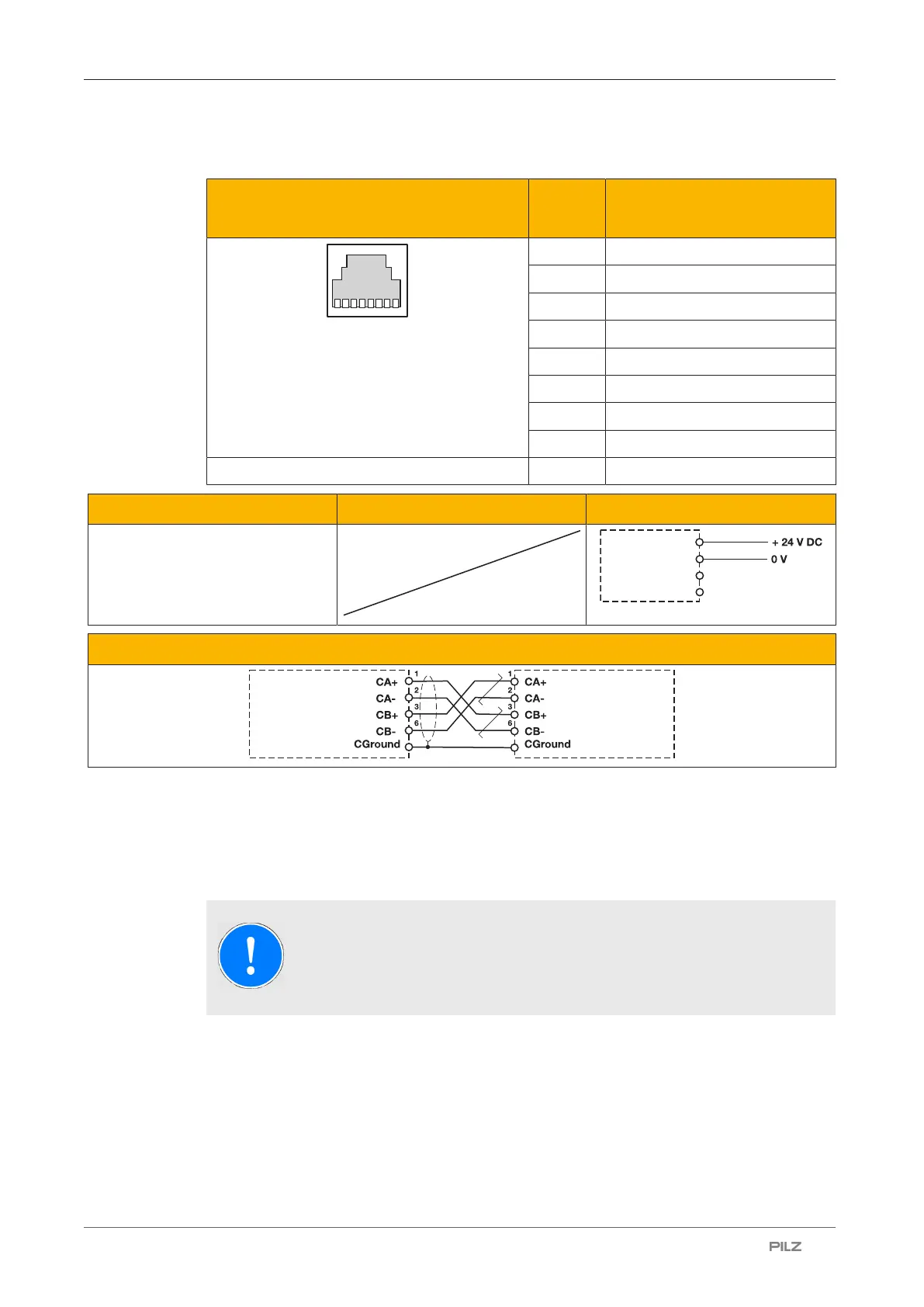

6.2 Connection
RJ45 socket
8-pin
PIN Layout
8 1
1 CA+
2 CA-
3 CB+
4 n.c.
5 n.c.
6 CB-
7 n.c.
8 n.c.
Shield CGround
Supply voltage AC DC
24V
0V
n.c.
FE
Connecting 2 base units PNOZmulti 2 via PNOZ m EF Multi Link
PNOZ m EF Multi Link
PNOZ m EF Multi Link
6.3 Download modified project to the PNOZmulti system
As soon as an additional expansion module has been connected to the system, the project
must be amended in the PNOZmulti Configurator and downloaded back into the base unit.
Proceed as described in the operating manual for the base unit.
NOTICE
For the commissioning and after every user program change, you must
check whether the safety devices are functioning correctly.
