Pilz PNOZ s7.1 User Manual

PNOZ s7.1
Operating Manual PNOZ s7.1
21865-EN-11
| 9

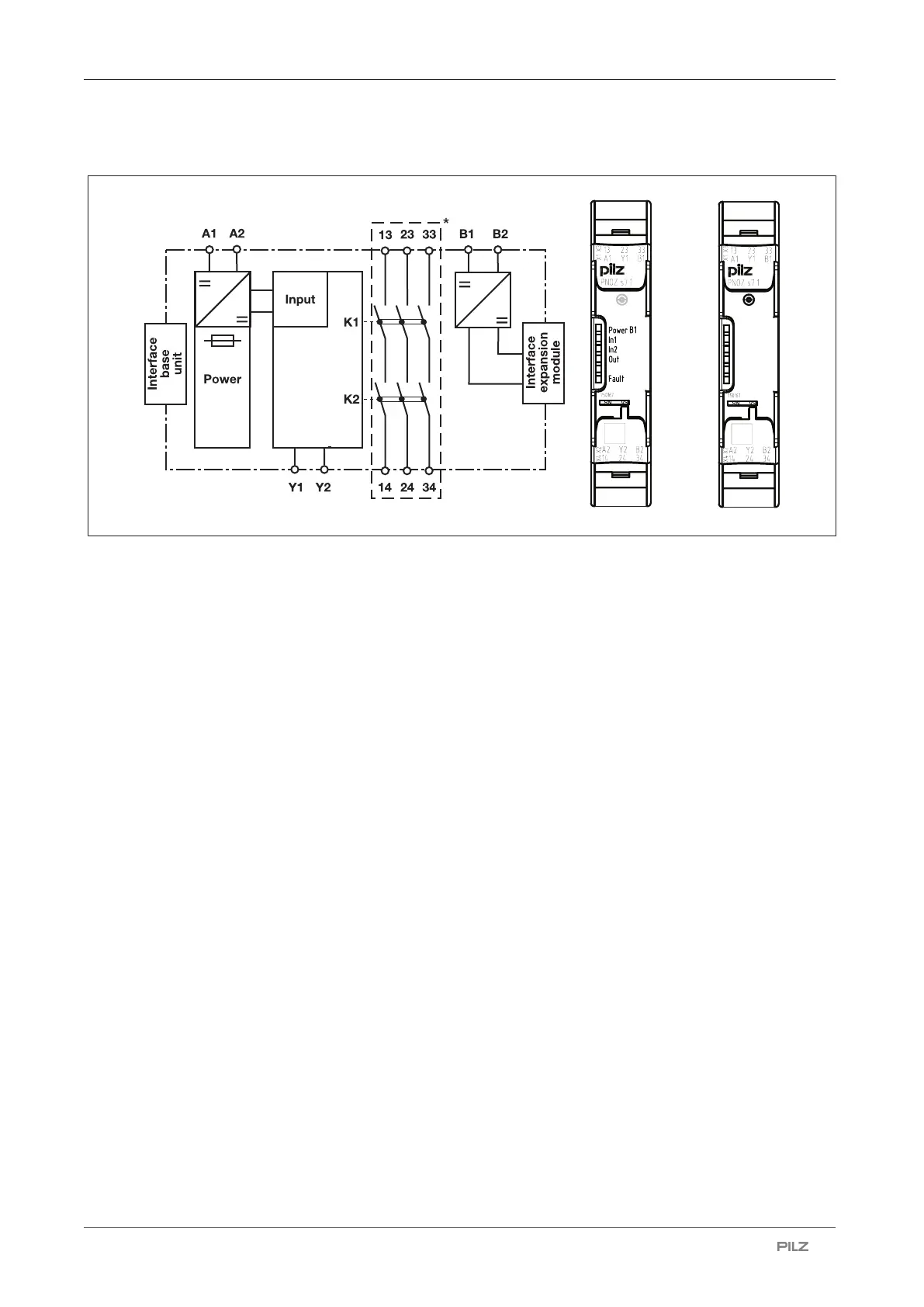

Block diagram/terminal configuration
Fig.: Centre: Front view with cover, right: Front view without cover
*Safe separation from non-marked area in accordance with EN 60947-1,
6 kV, basic insulation between all safety contacts.
Function description
with PNOZsigma base unit:
} Dual-channel operation via PNOZsigma connector
without PNOZsigma base unit:
} Single-channel operation: one input circuit affects the output relays
} Connection for base unit
with PNOZsigma s7.2 expansion modules:
} Dual-channel operation and supply voltage via PNOZsigma connector
