Pilz PNOZ s7 - Dimensions in MM; Technical Details

PNOZ s7
Operating Manual PNOZ s7
21399-EN-10
13

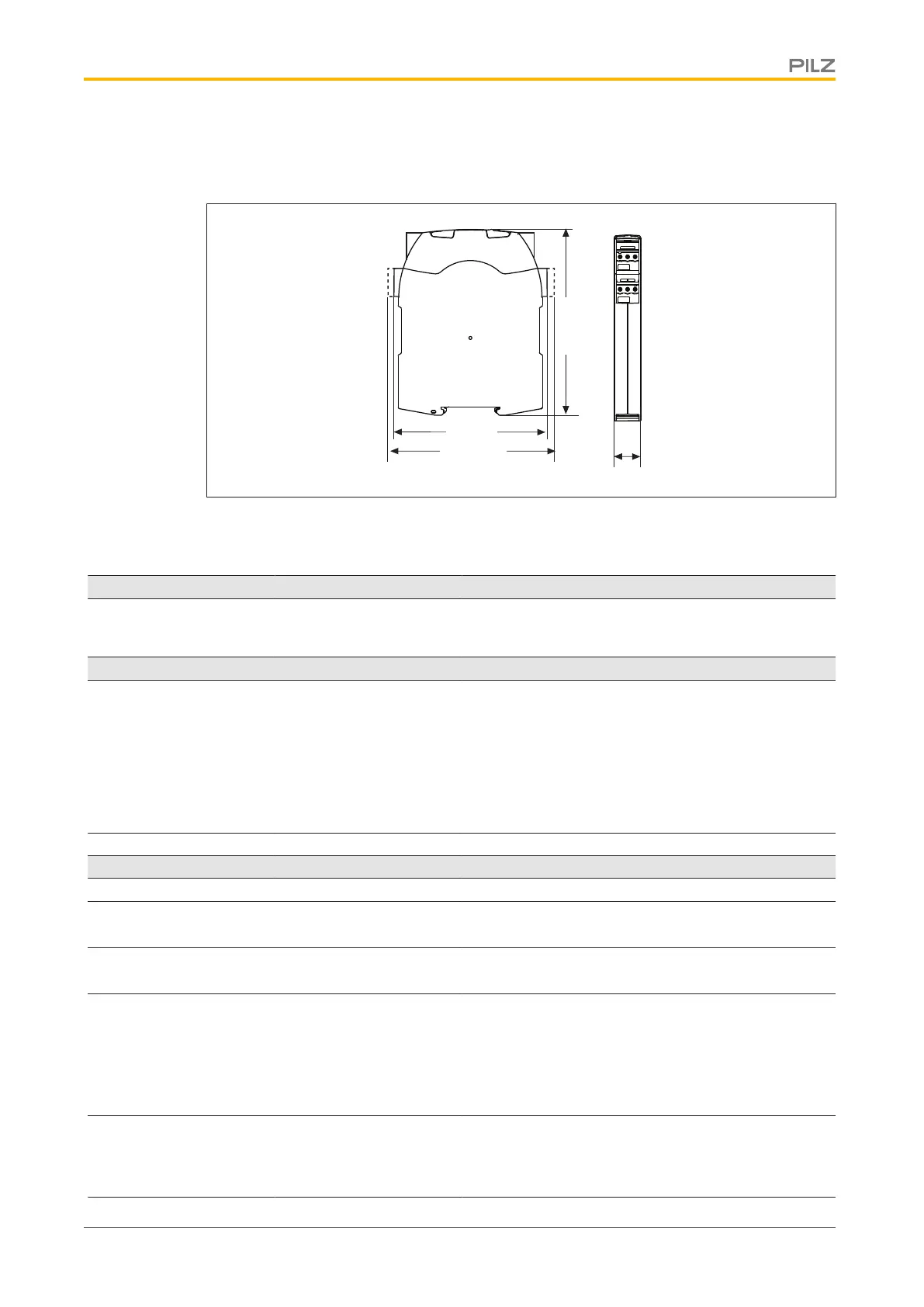

Dimensions in mm
*with spring-loaded terminals
120 (4.72")
* 100 (3,94")
98 (3.86")
17,5
(0.69")
Technical details
General 750107 751107 751187
Approvals
CCC, CE, EAC (Euras-
ian), KOSHA, TÜV, cU-
Lus Listed
CCC, CE, EAC (Euras-
ian), KOSHA, TÜV, cU-
Lus Listed
CCC, CE, EAC (Euras-
ian), KOSHA, TÜV, cU-
Lus Listed
Electrical data 750107 751107 751187
Supply voltage
Voltage 24 V 24 V 24 V
Kind DC DC DC
Voltage tolerance -20 %/+20 % -20 %/+20 % -20 %/+20 %
Output of external
power supply (DC) 2 W 2 W 2 W
Residual ripple DC 20 % 20 % 20 %
Duty cycle 100 % 100 % 100 %
Inputs 750107 751107 751187
Number 1 1 1
Voltage at
Input circuit DC 24 V 24 V 24 V
Current at
Input circuit DC 70 mA 70 mA 70 mA
Max. inrush current im-
pulse
Current pulse, input cir-
cuit 2,7 A 2,7 A 2,7 A
Pulse duration, input
circuit
0,1 ms 0,1 ms 0,1 ms
Max. overall cable resist-
ance Rlmax
Single-channel at UB
DC
30 Ohm 30 Ohm 30 Ohm
