Pilz PNOZ X2.8P User Manual

PNOZ X2.8P
Operating Manual PNOZ X2.8P
1004082-EN-20
| 9

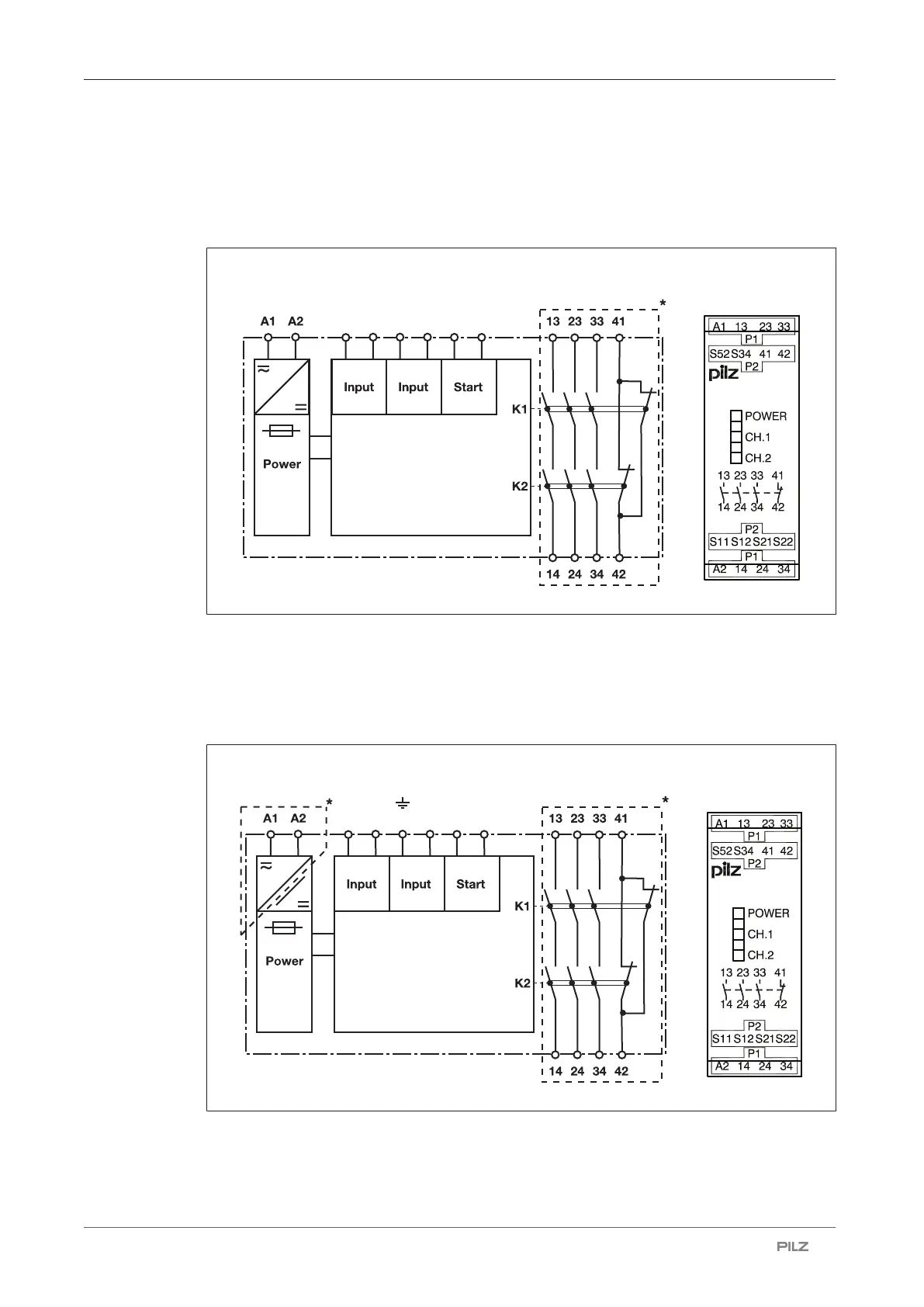

Block diagram/terminal configuration
Type: 24 VAC/DC
} U
B
: 24 VAC/DC; Order no. 777301, 787301
S11 S52 S21 S22 S12 S34
PNOZ X2.8P
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
Type: 24 - 240 V AC/DC
} U
B
: 24 – 240 VAC/DC; Order no. 777302, 787302
S11 S52 S21 S22 S12 S34
PNOZ X2.8P
*Insulation between the non-marked area and the relay contacts: Basic insulation (over-
voltage category III), Protective separation (overvoltage category II)
