PSEN cs4.1 M12/8-1.5m
Operating Manual PSEN cs4.1 M12/8-1.5m
1003810-EN-07
| 23
A1
A2
I0
I1
A1
A2
Y32
Y1
S11
S21
12
22
1
2
3
4
5
6
7
8
PNOZmulti
0 V
24 V
PSENcode
I2
A1
A2
I0
I1
A1
A2
Y32
Y1
S11
S21
12
22
1
2
3
4
5
6
7
8
RxTx
PNOZmulti
0 V
24 V
PSENcode

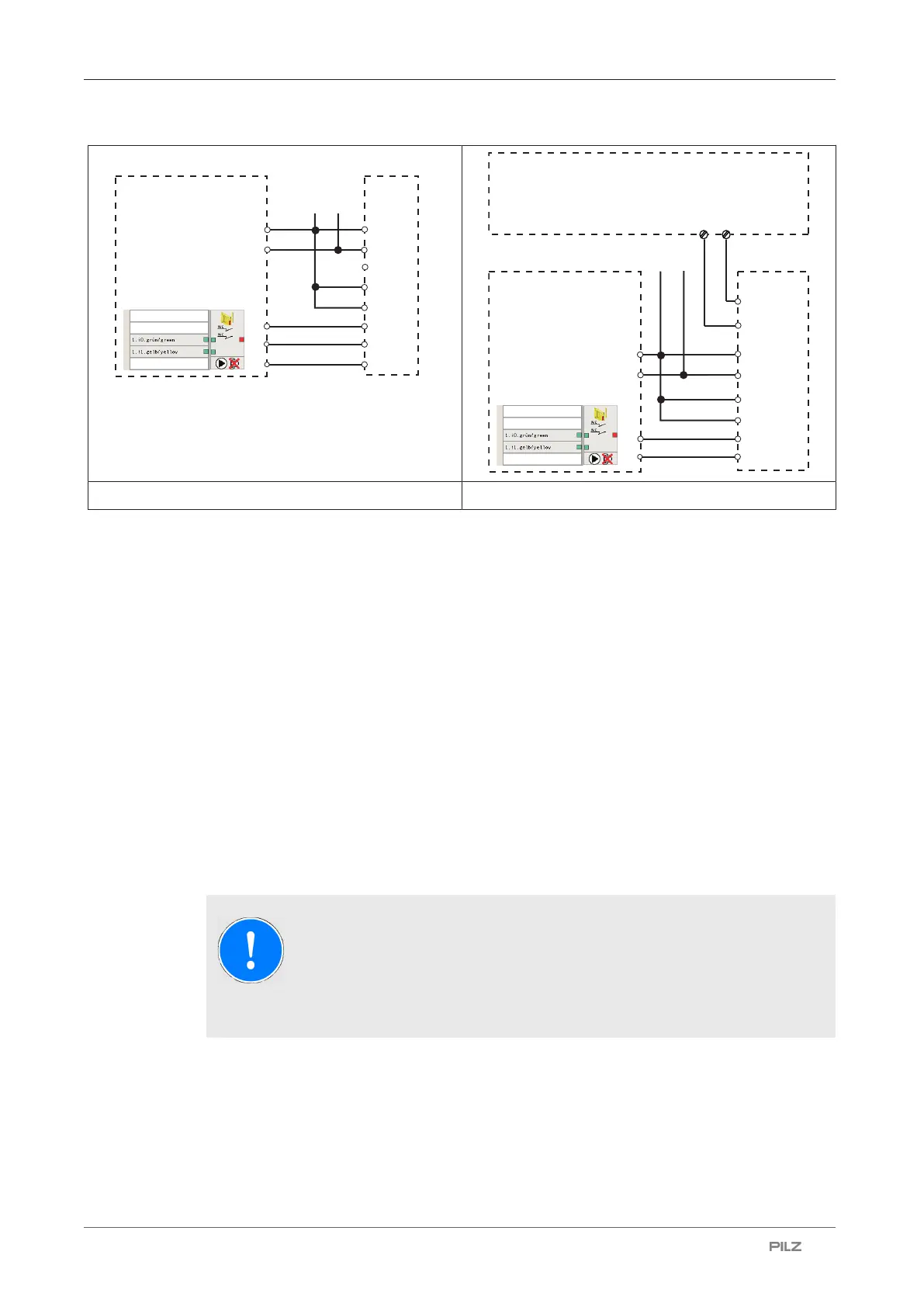

Without SDD With SDD
Teaching in the actuator
Teaching in the actuator for the first time:
The first actuator to be detected by the safety switch (see Intended use) is taught in auto-
matically as soon as it is brought into the response range.
To teach in a new actuator:
A maximum of 8 learning procedures are possible.
1. The actuator that is to be taught in must be brought into the safety switch's response
range as the only transponder. As soon as the actuator is detected, the "Safety Gate"
LED will flash yellow.
2. After 20 s has elapsed, the "Safety Gate" LED turns to quick yellow flashes. Trigger a
system reset in the next 120 s by interrupting the power supply.
3. When the supply voltage is switched back on, the learning procedure is complete and
the number of permitted additional learning procedures is reduced by 1.
NOTICE
– The actuator must not be removed during the learning procedure.
– It is no loner possible to reteach his actuator on the same safety
switch.
