Hunter-Pro Series
27
2. Set the "Audio control" (or any other) output type to trigger the outputs.
3. Set each output's partition/s in the “Part. For Out” screen. You must set a different partition
for each output, i.e., the same partition cannot trigger both messages.
4. Set the outputs' polarity ("P") to (-).
1.5.23. SMS-100

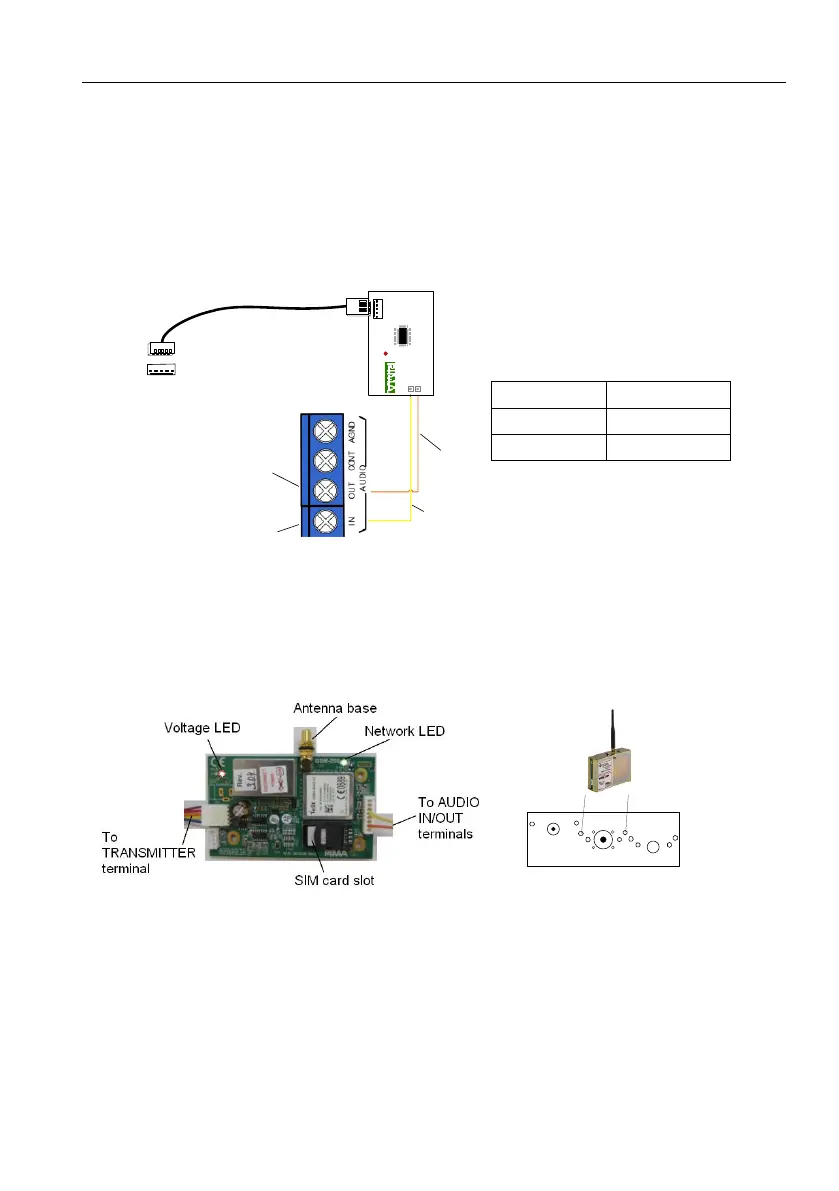

To connect the SMS-100 module to the control panel, see the next diagram and table.
Diagram 27. SMS-100 wiring diagram
SMS-100
Control Panel
P1-Yellow
AUDIO IN
P2-Orange
AUDIO OUT
1.5.24. GSM-200 cellular communicator
The GSM-200 cellular module can serve both as a main or backup communication channel.
It connects integrally at the control panel box.
See mounting guidelines in section 15.6, on page 80.
Figure 2. The GSM-200 PCB and mounting holes
SMS-100
Yellow
Control panel
Orange
TRANSMITTER
JP
1
P2
P1
A out
A in
JP1
AUDIO OUT
AUDIO IN
GSM-200
Control panel case’s top side
