Pioneer DJM-600 Service Manual

DJM-600
28
A
B
C
D
1
23
4
1234
M
2/2
M
2/2
M
2/2
M
1/2
M
2/2
M
1/2
M
1/2
M
2/2
M
1/2
M
2/2
M
1/2
fl
≠
fl IC521 pin1, 7
V: 0.2V/div
H: 0.2msec/div
GND
fl
≠ C692 +
V: 0.5V/div
H: 0.2msec/div
GND

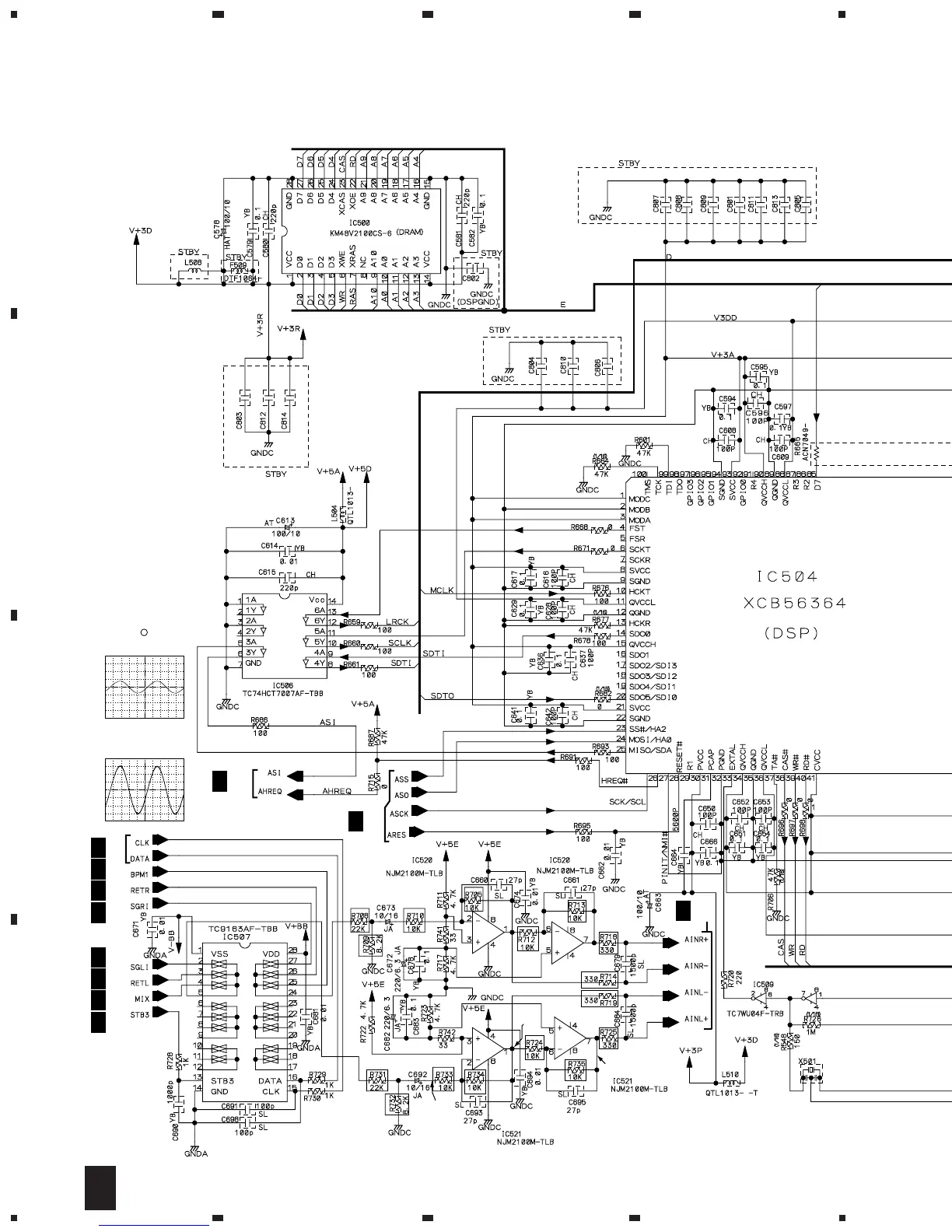

3.11 DSP ASSY (1/2)
1/2
M

Pioneer DJM-600 Specifications

General

Channels	4
Frequency Range	20 Hz - 20 kHz
Weight	6.6 kg
Fader Start	Yes
Output Terminals	RCA, XLR
Outputs	MASTER OUT, BOOTH OUT, REC OUT
Dimensions	320 mm (W) x 107.5 mm (H) x 372 mm (D)
EQ	3-band per channel
Effects	Delay, Echo, Auto Pan, Flanger, Reverb, Pitch Shifter
Power Supply	AC 220 - 240 V, 50/60 Hz
Inputs	3 PHONO, 4 LINE, 2 MIC
