Part Names
04
English
Part Names
Plasma Display
1 a POWER button
(See page 32.)
2 POWER ON indicator
(See page 32.)
3 STANDBY indicator
(See page 32.)
4 REC TIMER indicator
5 Remote control sensor
(Side view)
6 STANDBY/ON button
7INPUT button ( ENTER button*)
8 VOLUME UP/DOWN buttons ( UP/DOWN
buttons*)
9 CHANNEL UP/DOWN buttons ( LEFT/
RIGHT
buttons*)
10 TV GUIDE button*
11 USB port
12 INPUT 4 terminals (COMPONENT VIDEO: Y,
C B /P B , C R /P R )
13 INPUT 4 terminal (VIDEO)
14 INPUT 4 terminals (AUDIO)
15 Stand: PDK-TS15 for the PDP-6072HD
PDK-TS15U for the PDP-6071HD/
PDP-6070HD
16 Speaker: PDP-S41
For details, refer to the operation manual that
came with the stand or speaker.
The buttons with asterisks (*) can operate the TV Guide On
Screen™ system.
ON REC TIMERSTANDBYPOWER
5
6
8
9
10
7
11
13
12
14
ON STANDBY REC TIMERPOWER
1
3
2
4
15 16

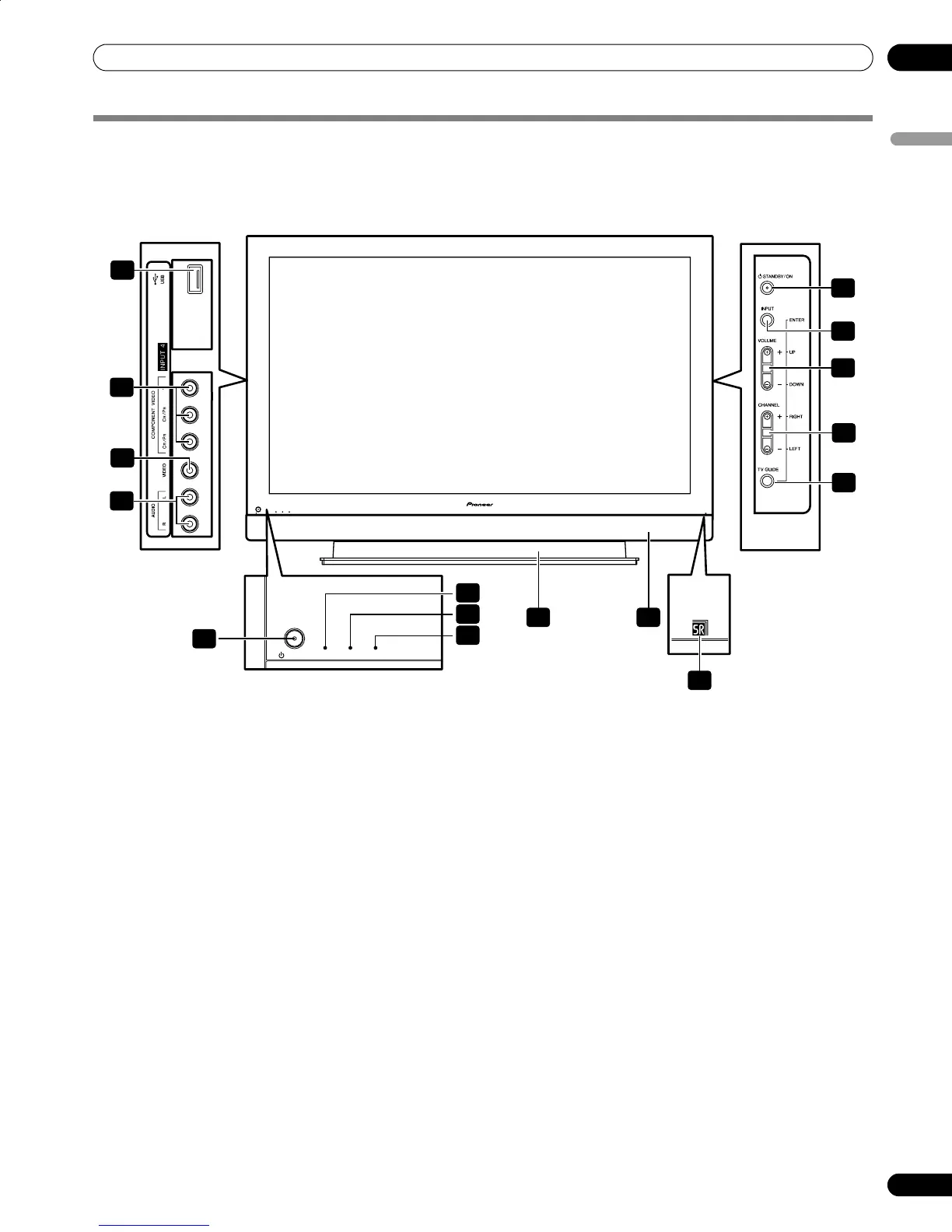

Front/side view
(PDP-6072HD/PDP-6071HD/PDP-6070HD)
