Part Names
04
1 a POWER button
(See page 32.)
2 POWER ON indicator
(See page 32.)
3 STANDBY indicator
(See page 32.)
4 REC TIMER indicator
5 Remote control sensor
(Side view)
6 STANDBY/ON button
7INPUT button ( ENTER button*)
8 VOLUME UP/DOWN buttons ( UP/DOWN
buttons*)
9 CHANNEL UP/DOWN buttons ( LEFT/
RIGHT buttons*)
10 TV GUIDE button*
11 USB port
12 INPUT 4 terminals (COMPONENT VIDEO: Y,
C B /P B , C R /P R )
13 INPUT 4 terminal (VIDEO)
14 INPUT 4 terminals (AUDIO)
The buttons with asterisks (*) can operate the TV Guide On
Screen™ system.
REC TIMER
54
6
8
9
10
7
11
13
12
14
ON STANDBYPOWER
1
3
2

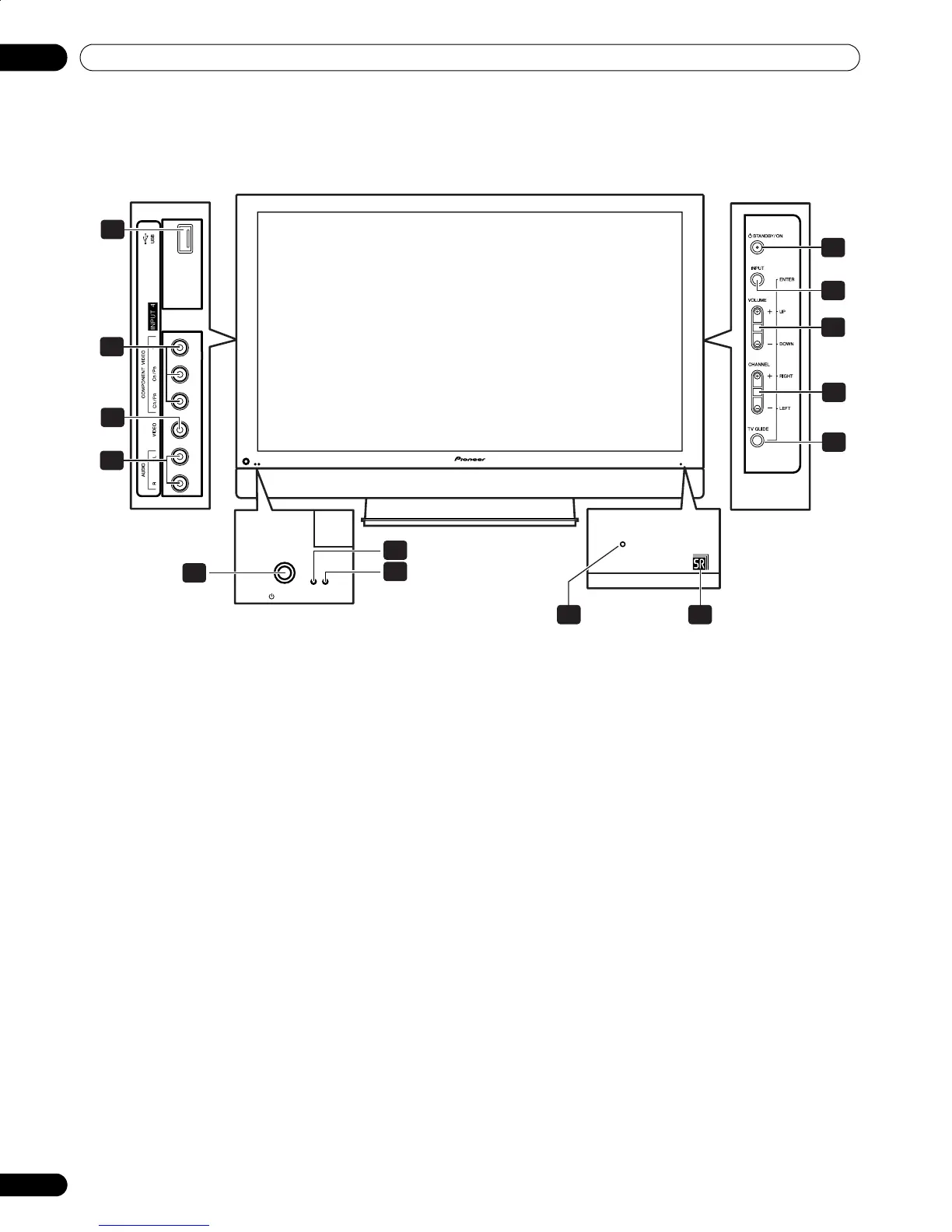

Front/side view
(PDP-5072HD/PDP-5071HD/PDP-5070HD)
