18
En
Part Names
04
1
PC INPUT terminal (ANALOG RGB)
2
CableCARD™ slot
3
ANT/CABLE A IN terminal
4
ANT B IN terminal
5
AC IN terminal
6
HDMI terminals (INPUT 5/INPUT 6)
7
RS-232C terminal (used for factory setup)
8
DIGITAL OUT terminal (OPTICAL)
9
G-LINK terminal
10
INPUT 5 terminals (AUDIO)
11
INPUT 6 terminals (AUDIO)
12
SUB WOOFER terminal
13
INPUT 3 terminals (AUDIO)
14
INPUT 3 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
15
INPUT 2 terminals (COMPONENT VIDEO: Y,
C
B
/P
B
, C
R
/P
R
)
16
INPUT 2 terminal (VIDEO)
17
INPUT 2 terminal (S-VIDEO)
18
INPUT 2 terminals (AUDIO)
19
INPUT 1 terminals (AUDIO)
20
INPUT 1 terminal (S-VIDEO)
21
INPUT 1 terminal (VIDEO)
22
MONITOR OUT terminal (VIDEO)
23
MONITOR OUT terminals (AUDIO)
24
PC INPUT terminal (AUDIO)
25
CONTROL OUT terminal
1 2
3
76 8
9
25
24
15
12
13
10
11
14
16
20
17 21
22
18 1923
4
5

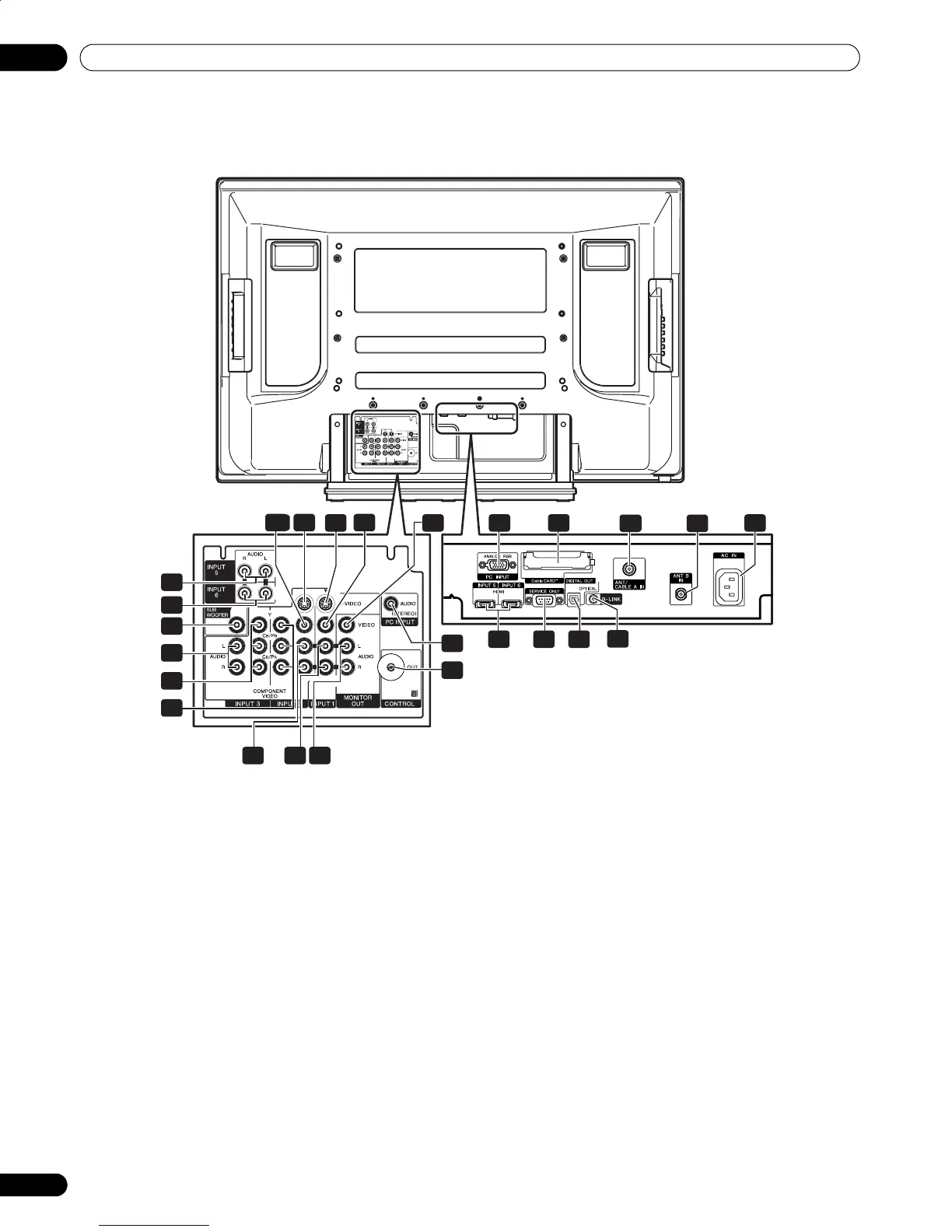

Rear view
(Terminals located on the upper
edge of the compartment)
(PDP-4272HD/PDP-4271HD/PDP-4270HD)
