102

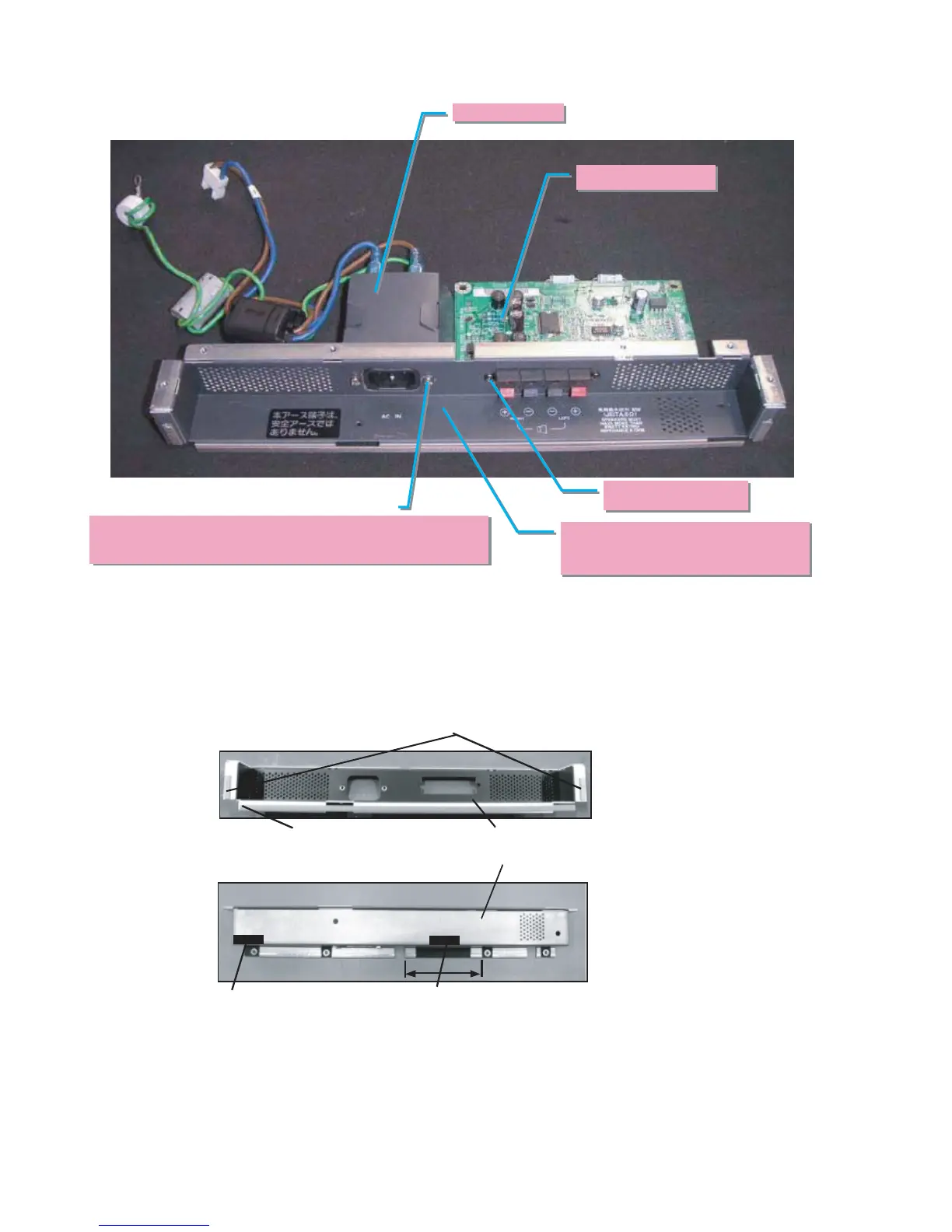

19. TERMINAL PANEL B/AUDIO PWB/AC INLET ASSY
(2)SRW15 TP-M3*6*3
KF 24N04581 4p
(1) SRW33
CLASS A : (PDP-424MV-FI)SCREW PL- CPIMS* 3* 10* 15KFE 29N01431 2p
CLASS B : (PDP-424MV,42MVE1)CPIMS* NO. 6- 32UNC* 8* 3GF 29N01131 2p
(4)A09 AUDIO PWB
ASSY 937F0SH1
(5)AC INLET ASSY
(3) M64 TERMINAL PANEL
CLASS A : (PDP-424MV-FI) 29P01611
CLASS B : (PDP-424MV, 42MVE1) 29P01621
GKT04 GASKET(L20*5*T1)
29C00511
(Caution) Stick the GASKET
based on the corner.
GKT04 GASKET(L20*5*T1)
29C00511
(Caution) Stick the GASKET to the
middle section marked by the arrow.
GKT03 GASKET(L20*5*T1)
29C00511 *2
GKT05 GASKET(L300*5*T1)
29C01481
(Caution) Stick it in alignment with this end.
20. TERMINAL PANEL B
M64
TERMINAL PANEL B : 29P01611(CLASS A)
TERMINAL PANEL B(NO SP) : 29P01621 (CLASS B)
10-12
To Next Page
