1 Power ( )
Turns the monitor’s power on and off.
2 Remote sensor window
Receives the signals from the remote control.
3 STANDBY/ON indicator
When the power is on ............................. Lights green.
When the power is in the standby mode ... Lights red.
4 INPUT/EXIT
Switches the input.
The available inputs depend on the setting of “BNC
INPUT”, “RGB SELECT”, “D-SUB SELECT” and
“DVI SET-UP”.
Functions as the EXIT buttons in the On-Screen
Display (OSD) mode.

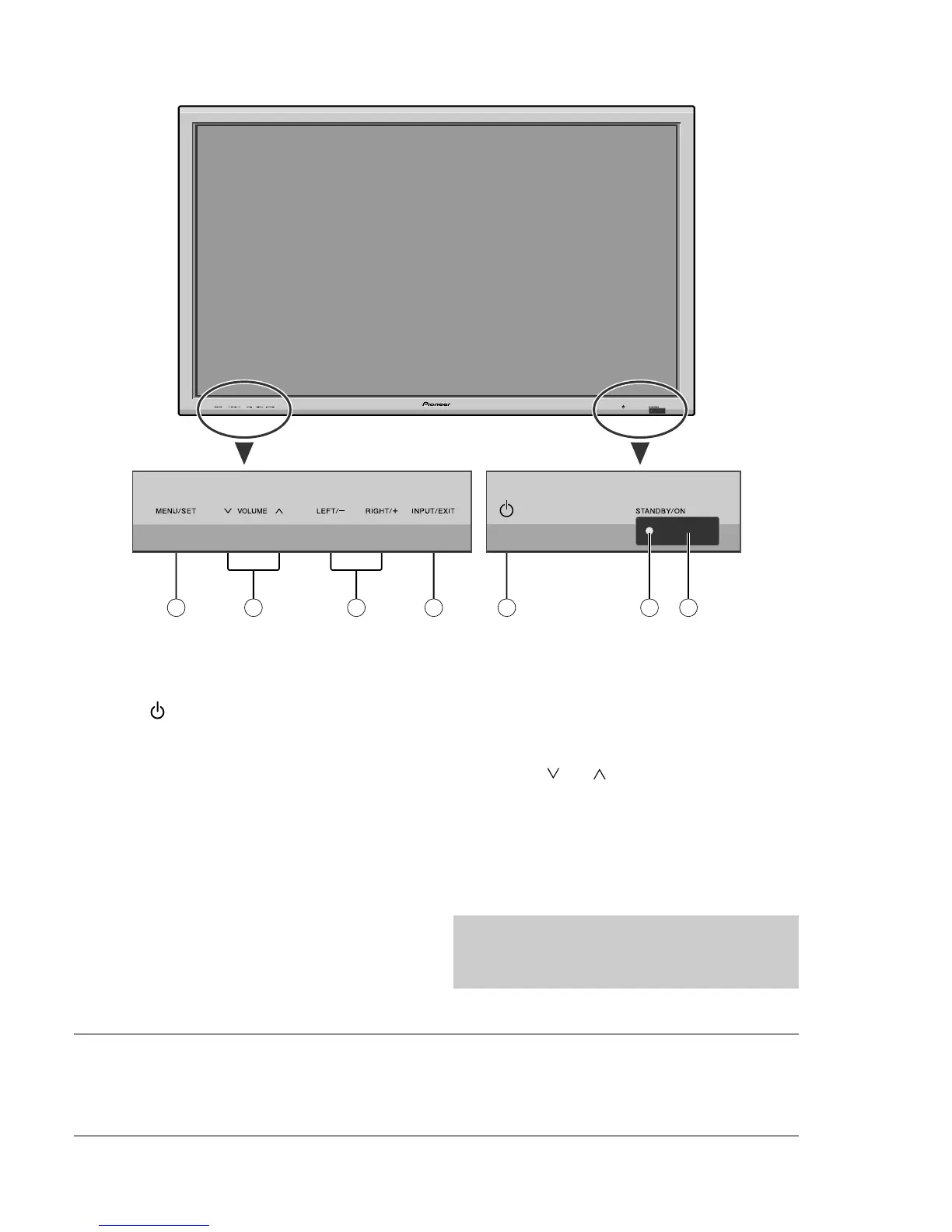

Front View
456
7
1 3 2
5 LEFT/– and RIGHT/+
Functions as the CURSOR ( / ) buttons in the On-
Screen Display (OSD) mode.
6 VOLUME
and
Adjusts the volume. Functions as the CURSOR (/
) buttons in the On-Screen Display (OSD) mode.
7 MENU/SET
Sets the On-Screen Display (OSD) mode and displays
the main menu.
WARNING
The Power on/off switch does not disconnect the plasma
display completely from the supply mains.
Note:
This plasma monitor has the capasity to display images when connected to European DVD players with a SCART
output signal, which is RGB with composite sync.
Your dealer can supply a special SCART cable, which will enable you to use the RGB with composite sync signal.
To obtain the special cable as well as for further information, please contact your dealer.
Please refer to page 19 for selection of the correct mode in the on-screen display.
PDP-42MVE1/LDFK & /TXGB
