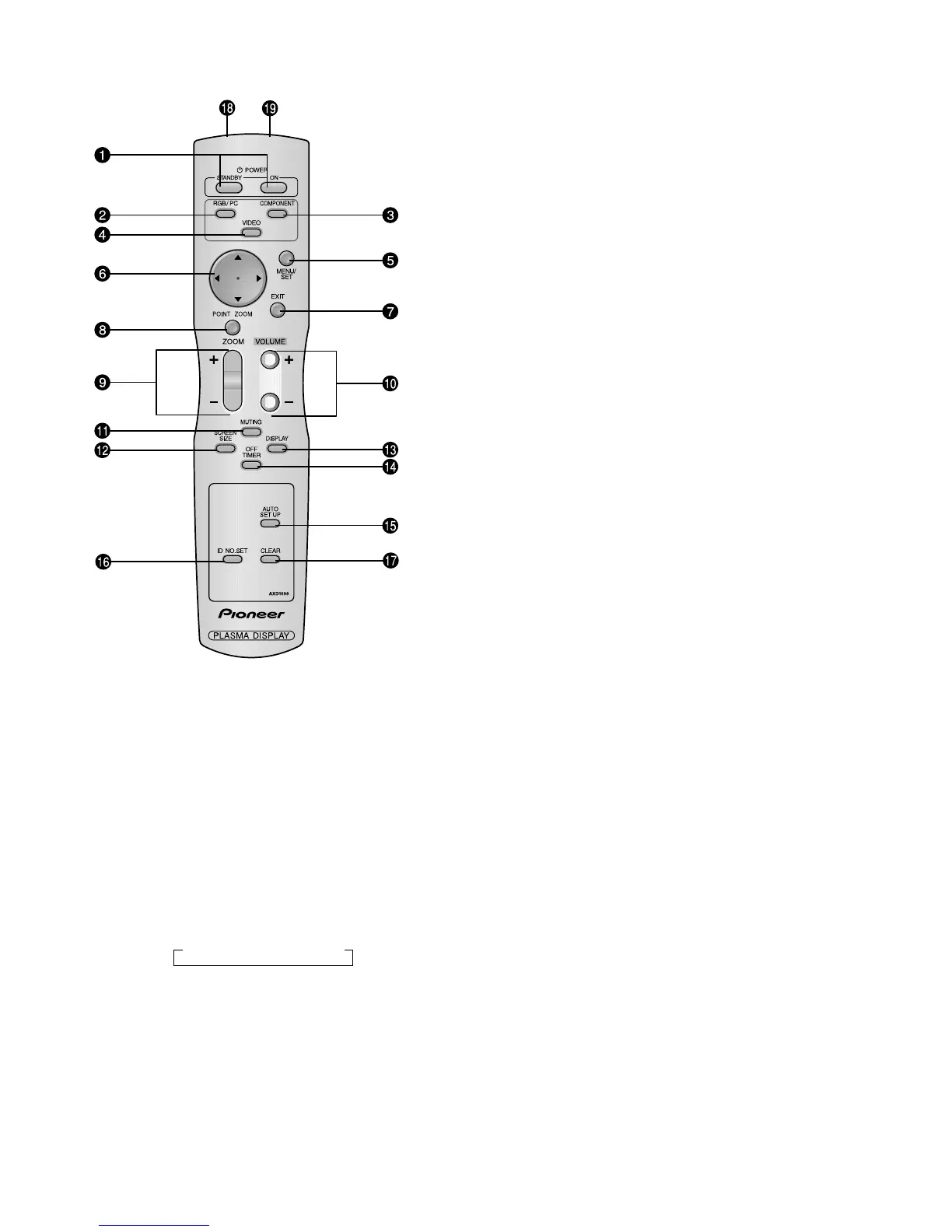

1 POWER ON/STANDBY
Switches the power on/standby.
(This does not operate when STANDBY/ON indicator
of the main unit is off.)
2 RGB/PC
Press this button to select RGB/PC as the source.
RGB/PC can also be selected using the INPUT/EXIT
button on the monitor.
3 COMPONENT
Press this button to select COMPONENT as the source.
COMPONENT can also be selected using the INPUT/
EXIT button on the monitor.
4 VIDEO
Press this button to select VIDEO as the source.
VIDEO can also be selected using the INPUT/EXIT
button on the monitor.
5 MENU/SET
Press this button to access the OSD controls.
Press this button during the display of the main menu
to go to the sub menu.
6 CURSOR ( / /
/ )
Use these buttons to select items or settings and to
adjust settings.
7 EXIT
Press this button to exit the OSD controls in the main
menu. Press this button during the display of the sub
menu to return to the previous menu.
8 POINT ZOOM
Press this button to display the pointer.
9 ZOOM (+ /–)
Enlarges or reduces the image.
0
VOLUME (+/–)
Adjusts the sound volume.
- MUTING
Mutes the sound.
= SCREEN SIZE
Automatically detects the signal and sets the aspect ratio.
SCREEN SIZE button is not active for all signals.
~ DISPLAY
Displays the source settings on the screen.
! OFF TIMER
Activates the off timer for the unit.
@ AUTO SET UP
Press this button to adjust PHASE, CLOCK, Position,
and Contrast automatically, or to switch the screen size
to ZOOM mode automatically with the superimposed
caption displayed fully only when the picture contains
dark areas above and below the picture.
# ID NO. SET
Set the ID number in the remote control. The remote
control can then be used only for a display with the
same ID number. When several displays are used
together they can be controlled individually.
$ CLEAR
Clears the number set by the ID NO. SET button.
% Remote control signal transmitter
Transmits the remote control signals.
^ Remote Jack
Insert the plug of the remote cable (The 1/8 Stereo
Mini cable) here when using the supplied remote
control in the wired condition.
Remote Control
→ VIDEO1 → VIDEO2 → VIDEO3
5-5
