104

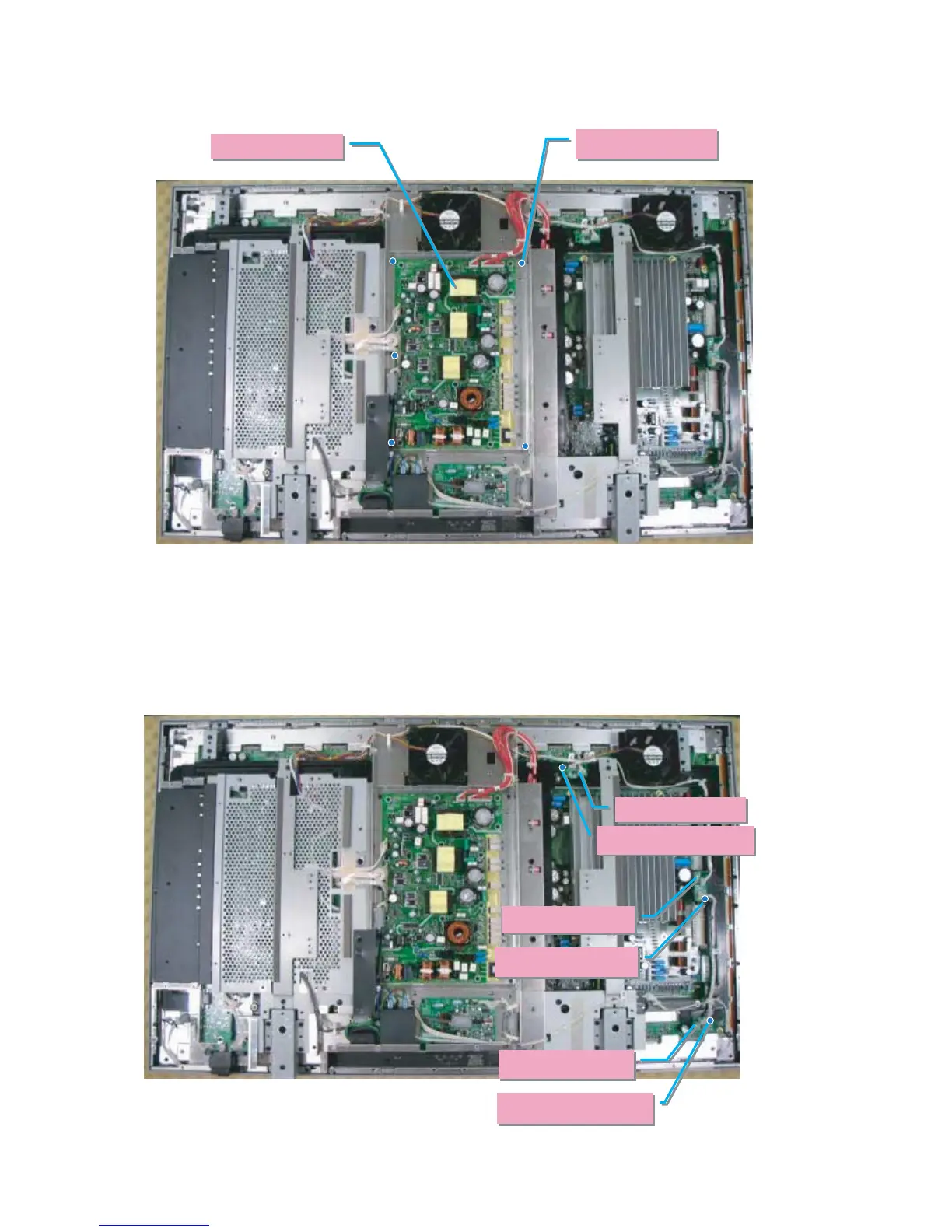

22. POWER UNIT
(1) SRW16 TP-M3*6*3
KF 24N045815p
(2)A11 POWER
UNIT 3S110211
23. SENB PWB/SENC PWB/SEND PWB/FAN
(6) A08 SEND PWB
ASSY 937F0SG1
(2)A06 SENB PWB
ASSY 937F0SE1
(5) SRW06 CBIPS*3*8*3
KF 24N03691
(1) SRW06 CBIPS*3*8*3K
F 24N03691
(4)A07 SENC PWB
ASSY 937F0SF1
(3) SRW06 CBIPS*3*8*3
KF 24N03691
10-14
