24

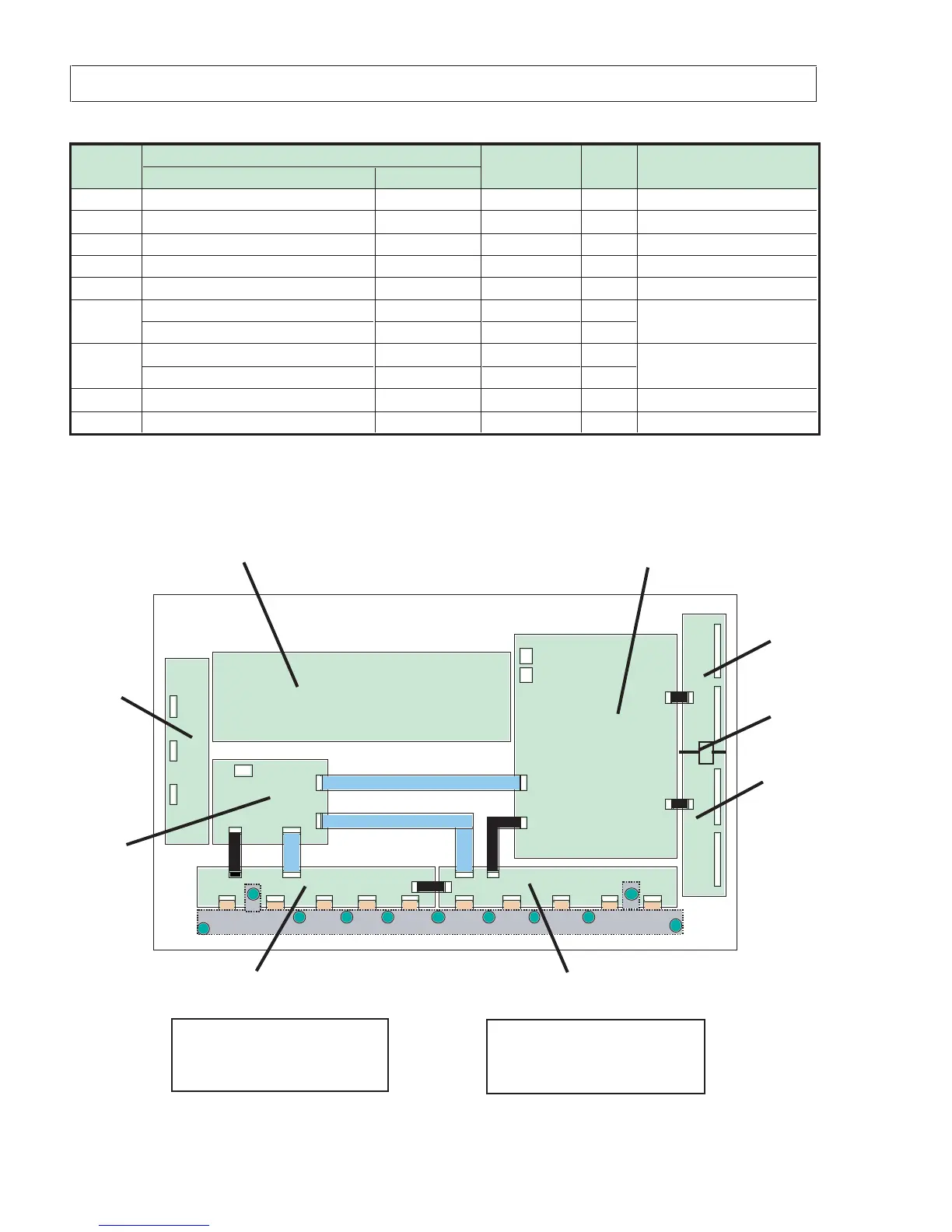

PDP-NP42B3MF01AB
TYPE NAME VERSION
1 PKG42B3G1 01D 9S899523 1 High voltage PKG
2 PKG42B3J4 01A 9S899627 1 Common divergence PKG
3 PKG42B3J3 01A 9S899282 1 Common relay PKG
4 PKG42B3J1 02B 9S899524 1 Signal relay PKG (left)
5 PKG42B3J2 02B 9S899525 1 Signal relay PKG (right)
PKG42B3E1 01C 9S899351 1
PKG42B3E1 01D 9S899528 1
PKG42B3E2 01C 9S899355 1
PKG42B3E2 01D 9S899531 1
8 PKG42B3E3 Version nothing 9S899443 1 Scanning relay PKG-C
9 PKG42B3C2 03J-06 9S899847 1
Digital PKG
Notes: • The version of a board assy (PKG) is indicated on the label on the board assy.
• When replacing the scanning relay board assys (PKG-C), make sure that the PKG-U (PKG42B3E1)
and PKG-D (PKG42B3E2) of the same version are used, to ensure correct scanning timing.
Version label of the board assy (PKG)
Digital PKG
Other PKG
6
Scanning relay PKG-U
7 Scanning relay PKG-D
PARTS LIST
SYMBOL
PART NAME
PART NO QTY NOTE
3
2
1
6
7
4
5
8
9
• Part name
• Serial number
• Version number
• Part name
• Serial number
• HW version • SW version
High voltage PKG
Common divergence PKG
Common relay PKG
Signal relay PKG (left)
Signal relay PKG (right)
Scanning relay PKG-D
Scanning relay PKG-U
Digital PKG
