8
3-1
Screen Size 36.3"(H) 20.4"(V) inches
921(H) 518(V) mm
diagonal 42"
Aspect Ratio 16 : 9
Resolution 853(H) 480(V) pixels
Signals
Synchronization Range
Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals
RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*
1
, DVD*
1
, DTV*
1
Input Terminals
(VIDEO1 and PC1 can also be used as OUTPUT terminals)
PC
Visual 1 (Analog)
mini D-sub 15-pin 1
Visual 2 (Analog)
BNC (R, G, B, H/CS, V) 1*
2
Visual 3 (Digital)
DVI-D 24-pin 1*
3
Video
Visual 1
BNC 1
Visual 2
RCA-pin 1
Visual 3
S-Video: DIN 4-pin 1
COMPONENT
Visual 1
RCA-pin (Y, PB[CB], PR[CR]) 1*
1
Visual 2
BNC (Y, PB[CB], PR[CR]) 1*
1,
*
2
Audio Stereo RCA 3 (Selectable)
RS-232C D-sub 9-pin 1
Sound output 8W+8W at 6 ohm
Power Supply AC120-240V 50/60Hz
Current Rating 4.5A (maximum)
Power Consumption 270W (standby 0.9W)
Dimensions 40 (W) 24 (H) 3.5 (D) inches
1018 (W) 610 (H) 89 (D) mm
Weight 62.8 lbs / 28.5 kg (without stand)
Environmental Considerations
Operating Temperature
0°C to 40°C / 32°F to 104°F
Other Features Motion compensated 3D Scan Converter (NTSC,
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3
pull down Converter (NTSC, 480I, 525I, 1035I,
1080I (60Hz)), 2-2 pull down Converter (PAL,
576I, 625I, NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Video Wall 4-25
multi screen, Self Diagnosis, Image Burn
reduction tools (ABL LOCK1~3, INVERSE,
WHITE, ORBITER (Auto1,2/Manual), SCREEN
WIPER), Color Temperature select (high/mid/mid
low/low, user has 4 memories), Key lock (Except
power SW), Auto Picture, Input Skip, Color
Detail Adjustment, Low Tone (3 mode), Auto ID,
Programmable Timer, Gamma Correction
(4 mode), Loop through interface, Plug and play
(DDC1, DDC2b, PC3: DDC2b only)

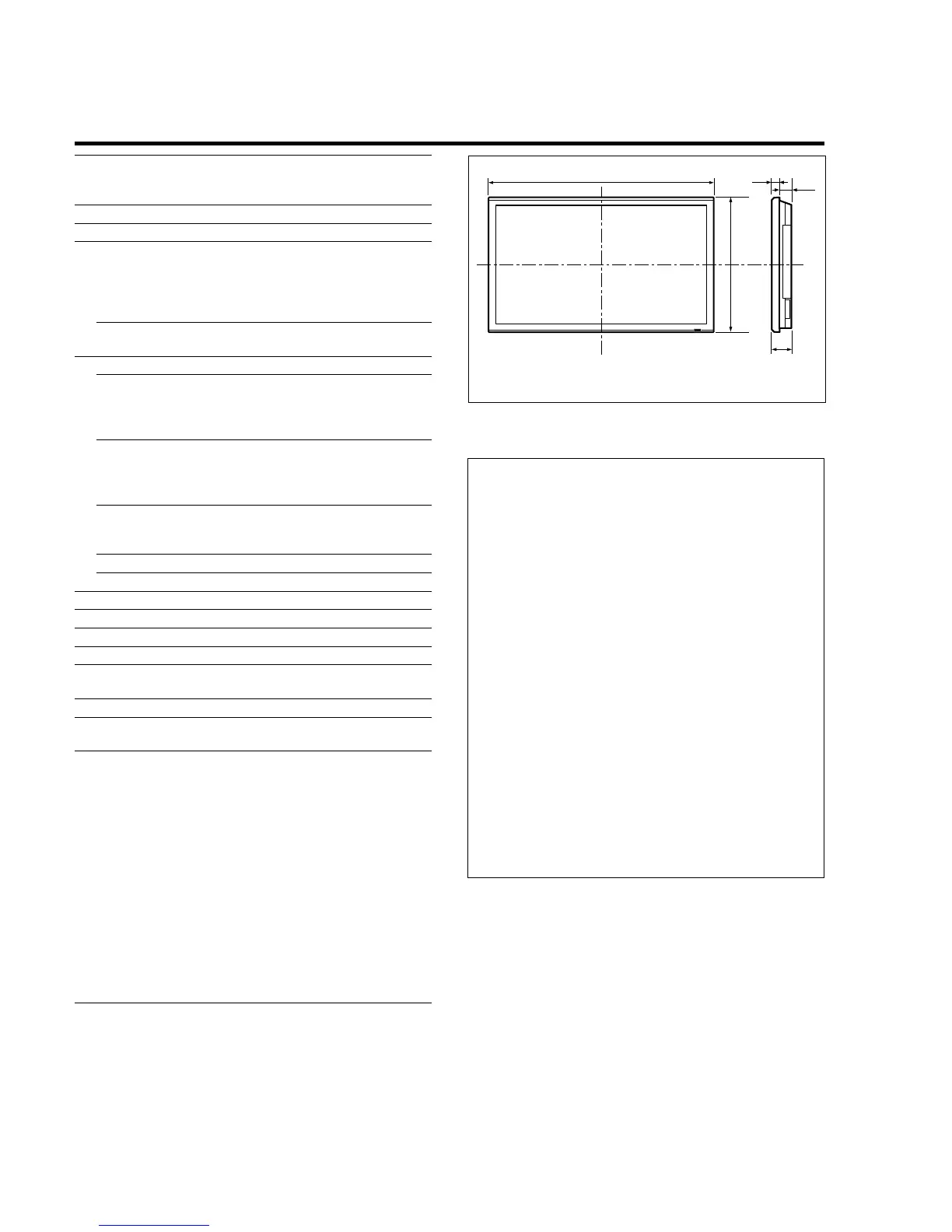

Units are in mm
(inch)
89
(3.5")
35
(1.38")
54
(2.13")
1018 (40")
610 (24")
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this
system
480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
*
2
The 5-BNC connectors are used as PC2 and
COMPONENT2 input. Select one of them under
“BNC INPUT”.
*
3
Compatable with HDCP.
Supported Signals
• 640 x 480P @ 59.94/60Hz • 1920 x 1080I @ 50Hz
• 1280 x 720P @ 59.94/60Hz • 720 x 576P @ 50Hz
• 1920 x 1080I @ 59.94/60Hz • 1440 (720) x 576I @ 50Hz
• 720 x 480P @ 59.94/60Hz
• 1440 (720) x 480I @ 59.94/60Hz
Note: In some cases a signal on the plasma monitor may not be displayed
properly. The problem may be an inconsistency with standards from
the source equipment (DVD, Set-top box, etc...). If you do experience
such a problem please contact your dealer and also the manufacturer of
the source equipment.
• PDP-424MV/LUC
SPECIFICATIONS
