05Teilebezeichnungen
13
Ge
Deutsch
1 2 3
4 5 6

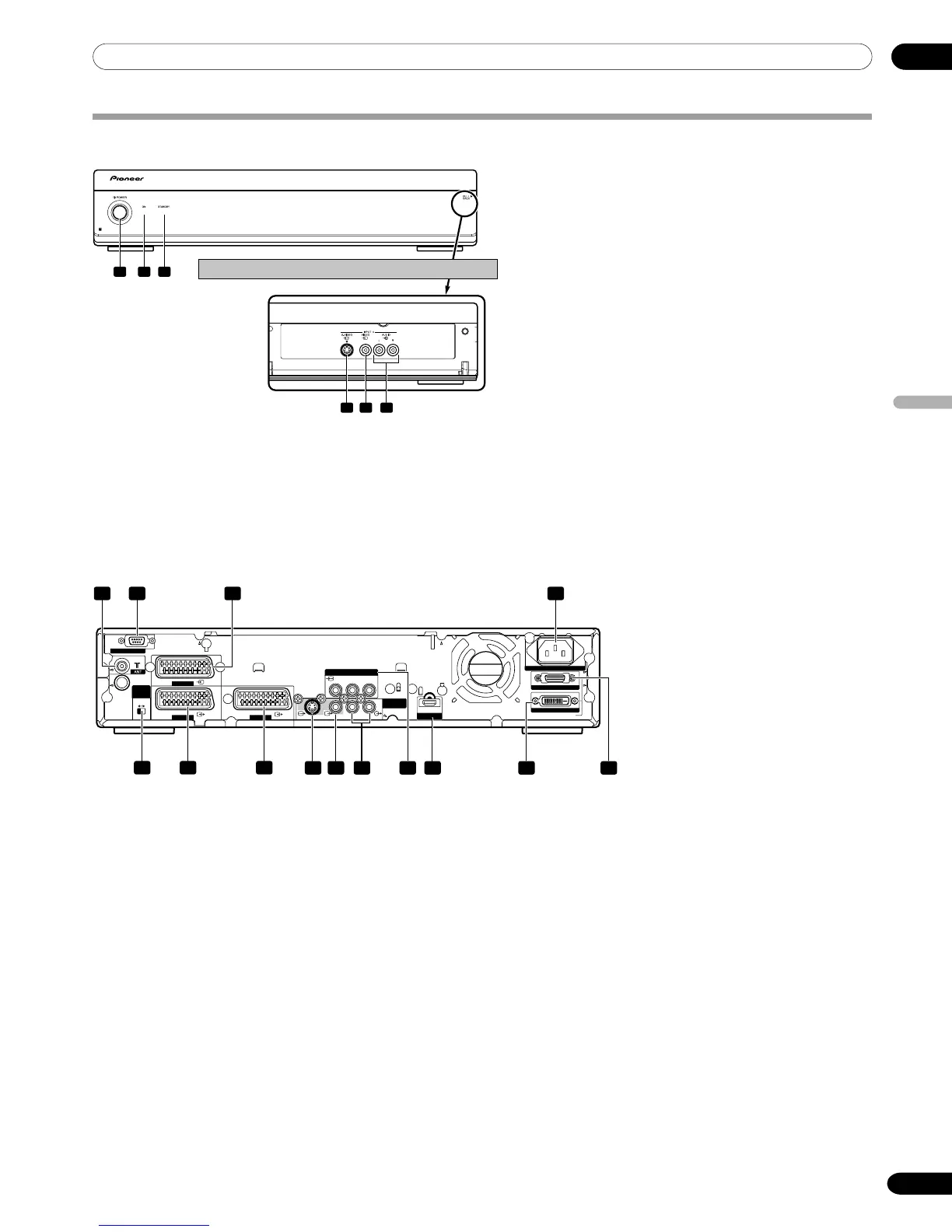

Rückseite
1 Antenneneingang ANT
2 RS-232C-Anschluss (bei
Werksvoreinstellung verwendet)
3 Anschluss INPUT 1 (SCART)
4 Anschluss AC IN (Netzeingang)
5 i/o link.A-Wahlschalter
6 Anschluss INPUT 2 (SCART)
7 Anschluss INPUT 3 (SCART)
8 Anschluss MONITOR OUTPUT (S-
VIDEO)
9 Anschluss MONITOR OUTPUT (VIDEO)
10 Anschlüsse MONITOR OUTPUT (AUDIO)
11 Anschlüsse INPUT 2
(COMPONENT VIDEO: Y, PB, PR)
12 Anschluss INPUT 3 (HDMI)
13 Anschluss SYSTEM CABLE (WHITE)
14 Anschluss SYSTEM CABLE (BLACK)
Media-Receiver
Vorderseite
1 Taste POWER
2 Anzeige POWER ON
3 Anzeige STANDBY
4 Anschluss INPUT 4 (S-VIDEO)
5 Anschluss INPUT 4 (VIDEO)
6 Anschlüsse INPUT 4 (AUDIO)
Ziehen Sie an diesem Abschnitt, um die Klappe zu öffnen.
SERVICE ONLY
i / o link.A
SELECT
INPUT
23
INPUT 2
INPUT 1
INPUT 3
INP UT 2
YP B P R
COMPONENT VI DE O
MONITOR
OUTPUT
R-AUDIO-L
S-VIDEO
VIDEO
BLACK
WHITE
SYSTEM CABLE
AC IN
HDMI
INPUT 3
1 2 3
5 6 7
4
8 9 10 11 12 13 14

Pioneer PDP-435FDE Specifications

General

Depth	93 mm
Width	1120 mm
Weight	26800 g
Tuner type	Analog
Pixel pitch	- mm
Aspect ratio	-
Product color	Aluminium, Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	43 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Built-in subwoofer	No
Display brightness	- cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
Placement supported	Horizontal
SCART ports quantity	3
USB 2.0 ports quantity	0
Contrast ratio (typical)	1200:1
Annual energy consumption	- kWh
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.4 W
Power consumption (typical)	295 W
Sound enhancement technology	FOCUS, SRS, TruBass
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FIN, FRE, GRE, POR, RUS, TUR
