Pioneer PDP-435FDE

05 Part Names
12
En
Plasma Display

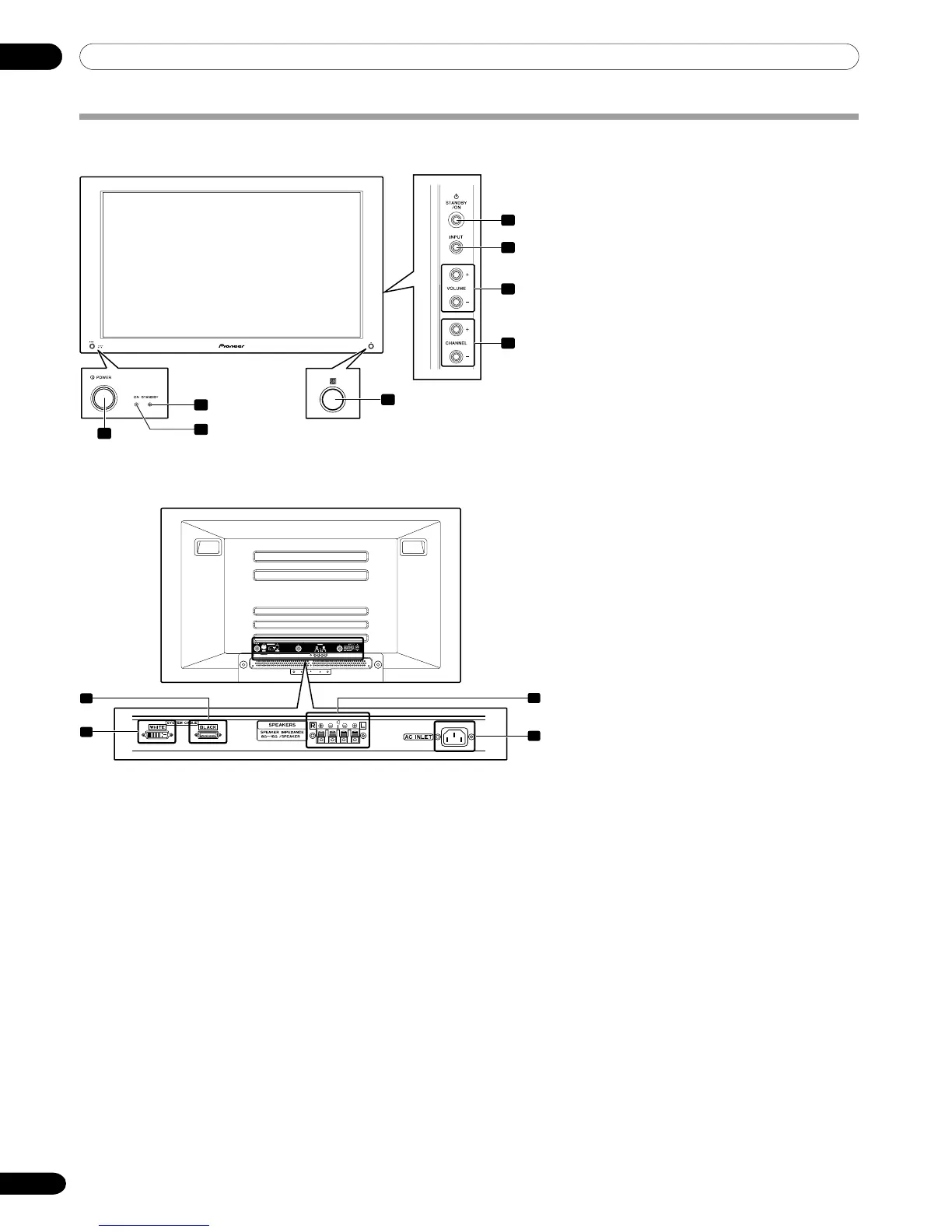

1 POWER button
2 STANDBY indicator
3 POWER ON indicator
4 Remote control sensor
5 STANDBY/ON button
6 INPUT button
7 VOLUME +/– buttons
8 CHANNEL +/– buttons
5
6
7
8
4
2
3
1
(right view)
Front view
9
10
11
12
Rear view
9 SYSTEM CABLE terminal (BLACK)
10 SYSTEM CABLE terminal (WHITE)
11 SPEAKER (right/left) terminals
12 AC INLET terminal
The terminals are set facing down.
