Pioneer PDP-435FDE User Manual

06 Preparation
18
En

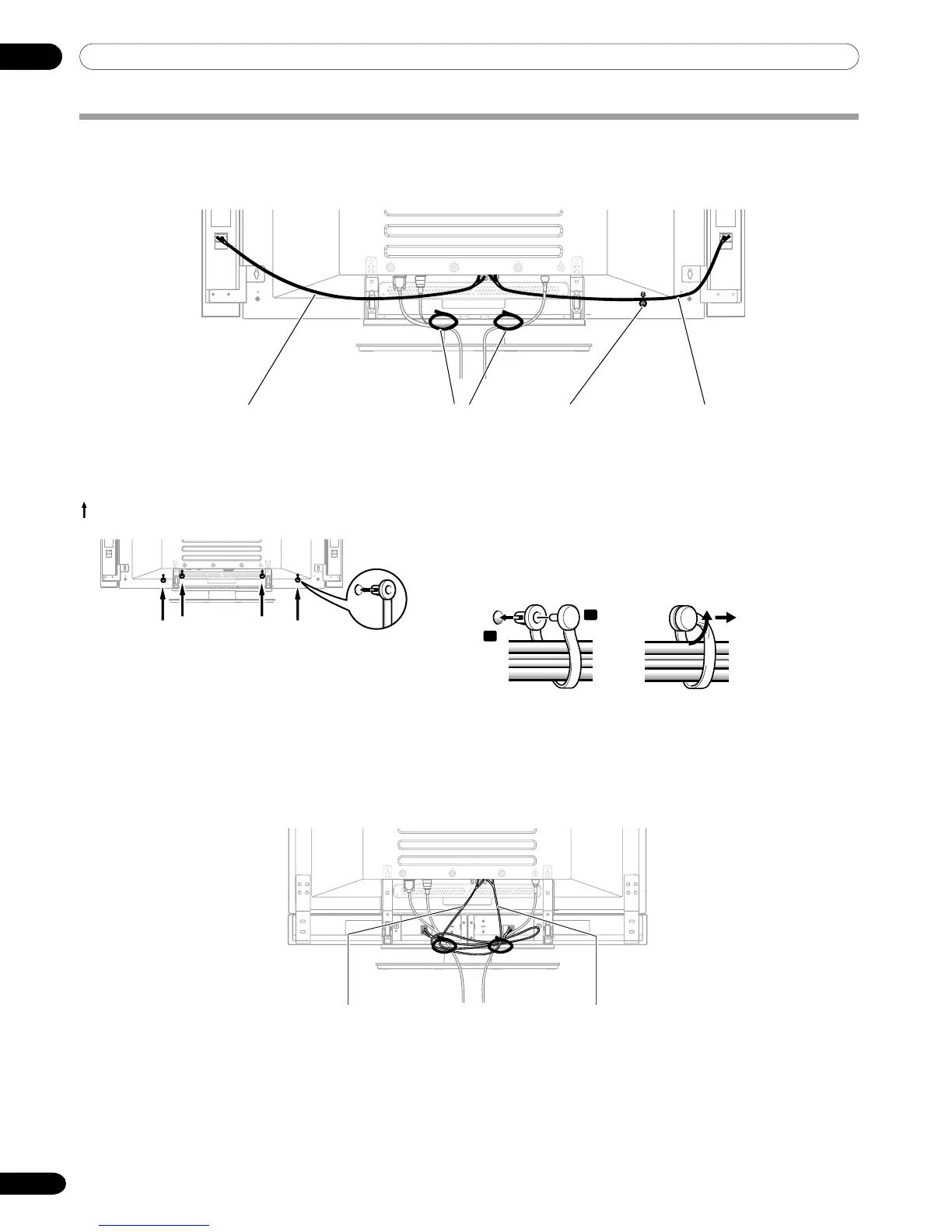

Routing cables
Speed clamps and bead bands are supplied for bunching cables. Once properly bunched, follow the steps below to route the
cables.
When the speakers are installed on the sides
When the speakers are installed at the bottom
(rear view)
Cable binders (supplied
with the stand)*
Attaching speed clamps to the main unit
Attach the speed clamps using the 4 holes marked with
below, depending on your routing system.
Attaching and removing speed clamps
Insert [1] into an appropriate hole on the rear of the Plasma
Display and snap [2] into the back of [1] to lock the clamp.
Speed clamps are designed to be difficult to undo once in
place. Please attach them carefully.
Use pliers to twist the clamp 90°, pulling outward. The clamp
may deteriorate over time and become damaged if removed.
1
2
Speaker cable Speed clamps
Speaker cable Speaker cable
Cable binders (supplied
with the stand)*
Speaker cable
* Cable binder
Using the cable binders supplied with the stand, put the
speaker and system cables together so that the cables are
invisible from the front. At that time be careful not to apply
any force to the connection sections of the cables.

Pioneer PDP-435FDE Specifications

General

Depth	93 mm
Width	1120 mm
Weight	26800 g
Tuner type	Analog
Pixel pitch	- mm
Aspect ratio	-
Product color	Aluminium, Black
LED indicators	Y, Power
Noise reduction	Yes
RMS rated power	26 W
AC input voltage	220 - 240 V
Display diagonal	43 \
Channels quantity	99 channels
AC input frequency	50 - 60 Hz
Built-in subwoofer	No
Display brightness	- cd/m²
Display resolution	1024 x 768 pixels
Display technology	Plasma
Number of speakers	2
Teletext standards	Top-text
Placement supported	Horizontal
SCART ports quantity	3
USB 2.0 ports quantity	0
Contrast ratio (typical)	1200:1
Annual energy consumption	- kWh
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Analog signal format system	NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL BG, PAL DK, PAL I, SECAM, SECAM B/G, SECAM D/K, SECAM L
Power consumption (standby)	0.4 W
Power consumption (typical)	295 W
Sound enhancement technology	FOCUS, SRS, TruBass
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FIN, FRE, GRE, POR, RUS, TUR
