Pioneer PDP-435FDE

05Part Names
English
13
En

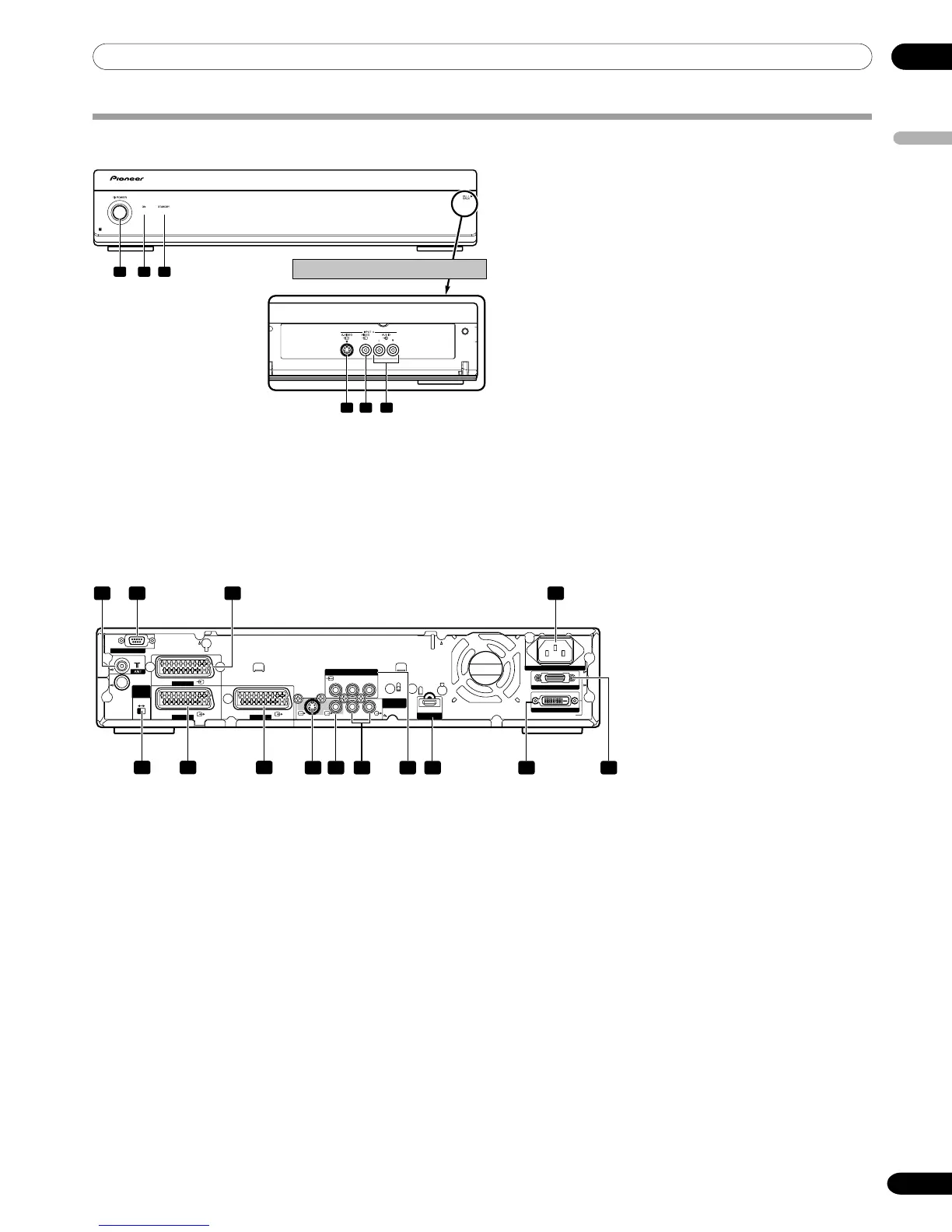

Rear view
1 ANT (Antenna) input terminal
2 RS-232C terminal (used for factory setup)
3 INPUT 1 terminal (SCART)
4 AC IN terminal
5 i/o link.A SELECT switch
6 INPUT 2 terminal (SCART)
7 INPUT 3 terminal (SCART)
8 MONITOR OUTPUT terminal (S-VIDEO)
9 MONITOR OUTPUT terminal (VIDEO)
10 MONITOR OUTPUT terminals (AUDIO)
11 INPUT 2 terminals
(COMPONENT VIDEO: Y, PB, PR)
12 INPUT 3 terminal (HDMI)
13 SYSTEM CABLE terminal (WHITE)
14 SYSTEM CABLE terminal (BLACK)
SERVICE ONLY
i / o link.A
SELECT
INPUT
23
INPUT 2
INPUT 1
INPUT 3
INP UT 2
YP B P R
COMPONENT VI DEO
MONITOR
OUTPUT
R-AUDIO-L
S-VIDEO
VIDEO
BLACK
WHITE
SYSTEM CABLE
AC IN
HDMI
INPUT 3
1 2 3
5 6 7
4
8 9 10 11 12 13 14
Media Receiver
Front view
1 POWER button
2 POWER ON indicator
3 STANDBY indicator
4 INPUT 4 terminal (S-VIDEO)
5 INPUT 4 terminal (VIDEO)
6 INPUT 4 terminals (AUDIO)
1 2 3
4 5 6
Pull this section to open the door.
