Pioneer PDP-435FDE

06Preparation
English
17
En
SERVICE ONLY
i / o link.A
SELECT
INPUT
23
INPUT 2
INPUT 1
INPUT 3
INP UT 2
YP B P R
COMPONENT VI DE O
MONITOR
OUTPUT
R-AUDIO-L
S- VIDEO
VIDEO
BLACK
WHITE
SYSTEM CABLE
AC IN
INPUT 3
HDMI
INPUT 3

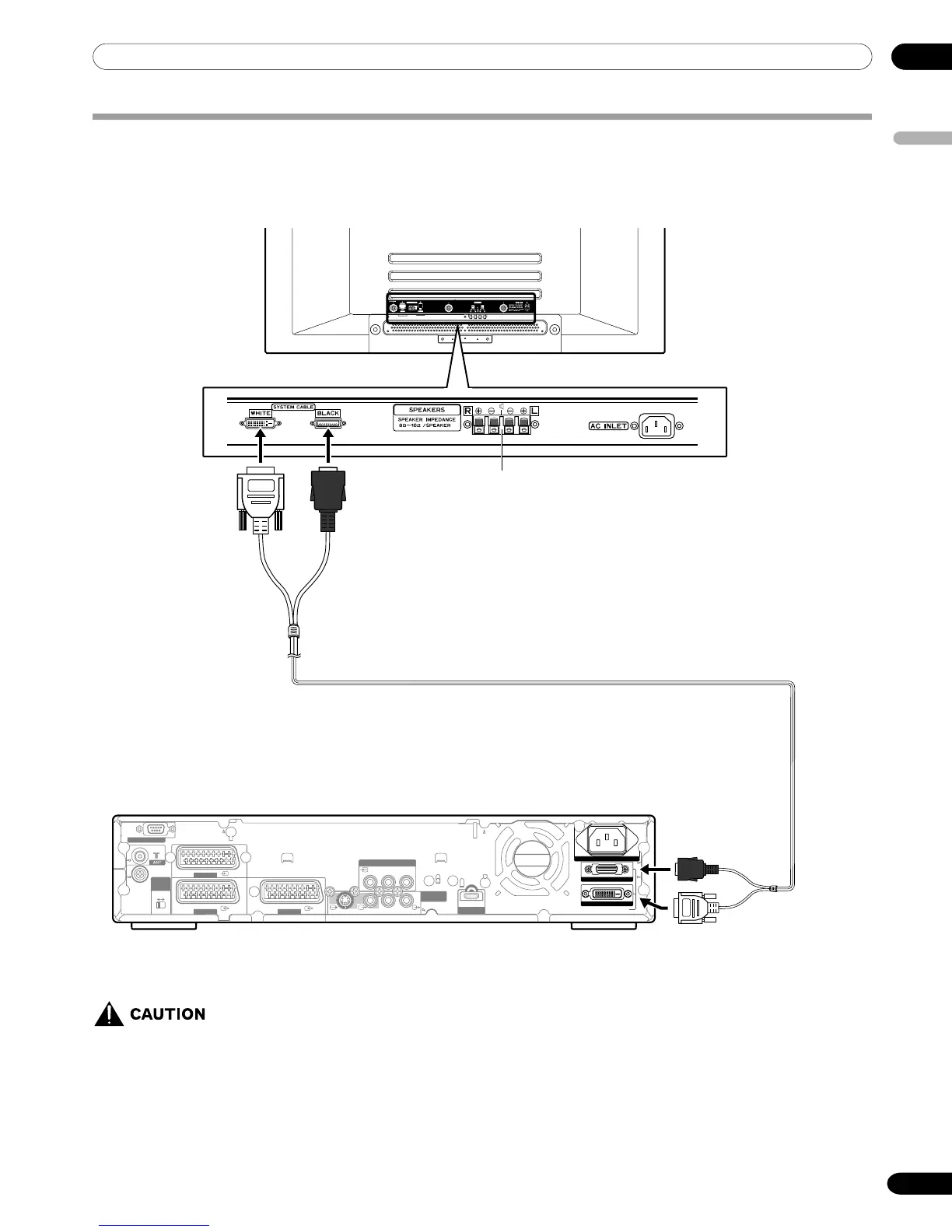

Setting the system
Connecting the system cable to the Plasma Display
• THESE SPEAKER TERMINALS CAN BE APPLIED WITH HAZARDOUS VOLTAGE WHEN YOU CONNECT OR
DISCONNECT THE SPEAKER CABLES, TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT TOUCH
UNINSULATED PARTS BEFORE DISCONNECTING THE POWER CORD.
Connecting the system cable to the Media Receiver
For details on optional PIONEER
speaker installation, refer to the
instruction manual that came
with the speaker.
Plasma Display (rear view)
(WHITE)
(BLACK)
System cable
Media Receiver (rear view)
(WHITE)
(BLACK)
