12
En

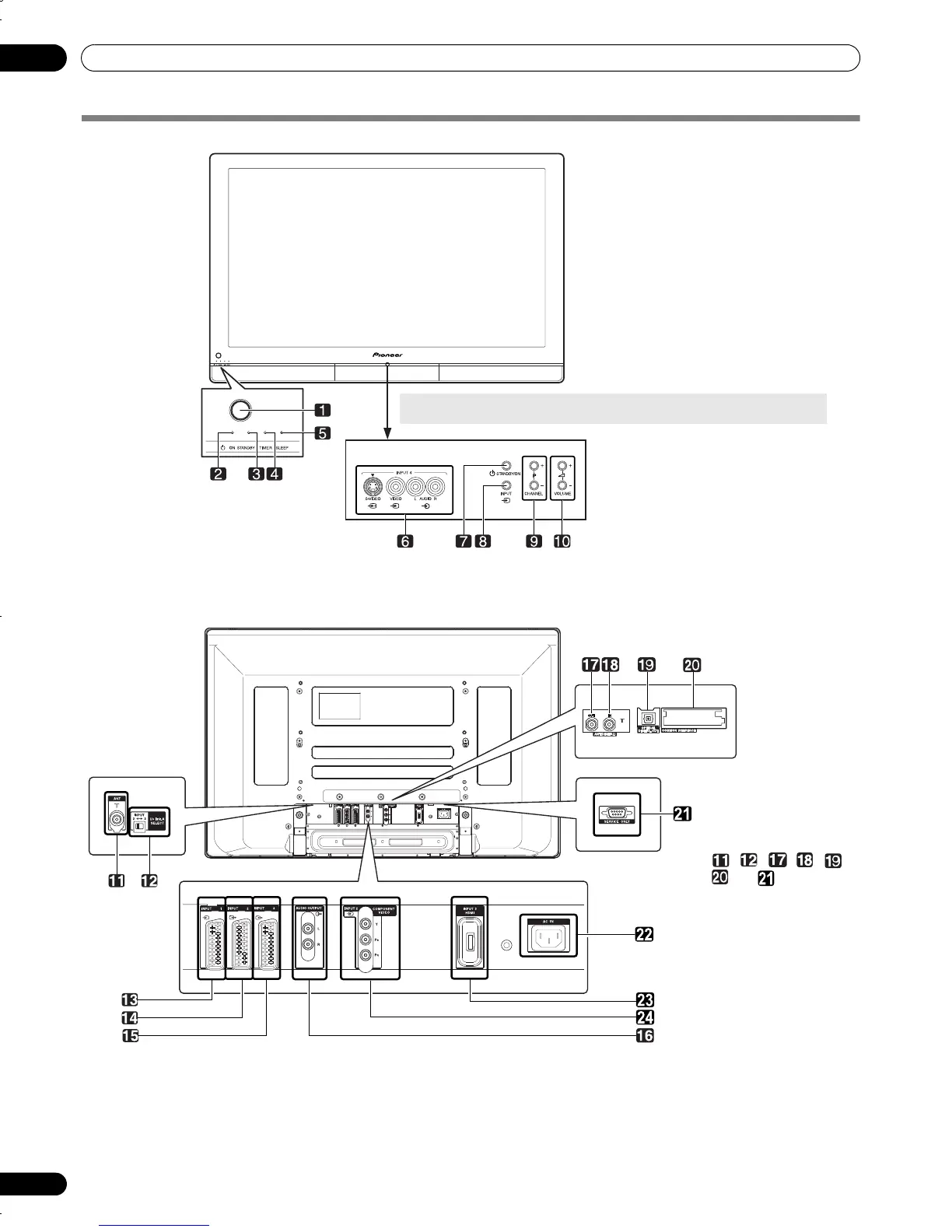

Part Names
04
Part Names
Plasma Display
11
ANT (Antenna) input terminal
12
i/o link.A SELECT switch
13
INPUT 1 terminal (SCART)
14
INPUT 2 terminal (SCART)
15
INPUT 3 terminal (SCART)
16
AUDIO OUTPUT terminals (L - R)
17
ANT OUT terminal (Antenna through out)
18
ANT IN terminal (Antenna in for DTV)
Power can be supplied through this terminal.
19
DIGITAL OUT terminal (OPTICAL)
20
COMMON INTERFACE slot
For a CA Module with a smart card
21
RS232C terminal (used for factory setup)
22
AC IN terminal
23
HDMI terminal (INPUT 3)
24
INPUT 2 terminals (COMPONENT VIDEO:Y, P
B
, P
R
)
Front view
1POWER
button
2
POWER ON indicator
3
STANDBY indicator
4
TIMER indicator
5
SLEEP indicator
6
INPUT 4 terminals
7STANDBY/ON
button
8INPUT
button
9 CHANNEL +/–
buttons
10 VOLUME +/–
buttons
Press this section (PUSH-OPEN) gently to open the door.
Rear view
*
**
* , , , , ,
and are located in
the top wall of the
compartment.
** * *
PDP-436SXE.book Page 12 Tuesday, November 8, 2005 10:04 AM
