12
Fr

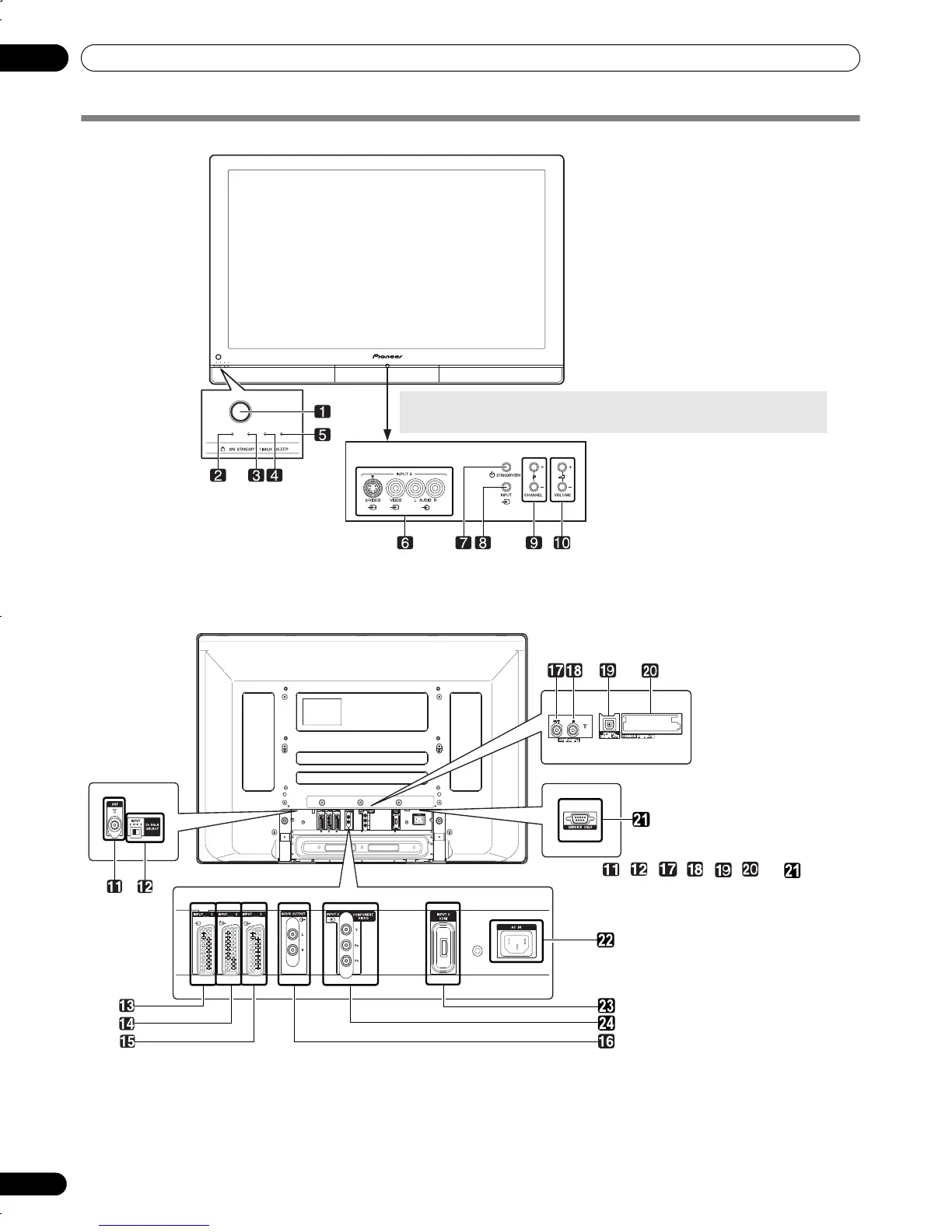

Nomenclature
04
Nomenclature
Écran plasma
11
Prise d’entrée ANT (Antenne)
12
Sélecteur i/o link.A SELECT
13
Prise INPUT 1 (PÉRITEL)
14
Prise INPUT 2 (PÉRITEL)
15
Prise INPUT 3 (PÉRITEL)
16
Prises AUDIO OUTPUT (L - R)
17
Prise ANT OUT (Sortie directe d’antenne)
18
Prise ANT IN (Entrée d’antenne pour DTV)
•L’alimentation peut être fournie par cette prise.
19 Prise DIGITAL OUT (OPTICAL)
20 Fente COMMON INTERFACE
•Pour un module CA avec une carte intelligente
21
Prise RS-232C (utilisée pour la mise au point usine)
22 Prise AC IN
23
Prise HDMI (INPUT 3)
24
Prises INPUT 2 (COMPONENT VIDEO:Y, P
B
, P
R
)
Vue de face
1
Touche
POWER
2
Témoin POWER ON
3
Témoin STANDBY
4
Témoin TIMER
5
Témoin SLEEP
6
Prises INPUT 4
7
Touche
STANDBY/ON
8
Touche
INPUT
9
Touches
CHANNEL +/–
10
Touches
VOLUME +/–
Appuyez doucement sur cette section (PUSH-OPEN) pour
ouvrir la porte.
Vue de dos
*
**
* , , , , , , et se
trouvent sur la paroi supérieure du boîtier.
*
*
**
