Part names04
12
En
Plasma television

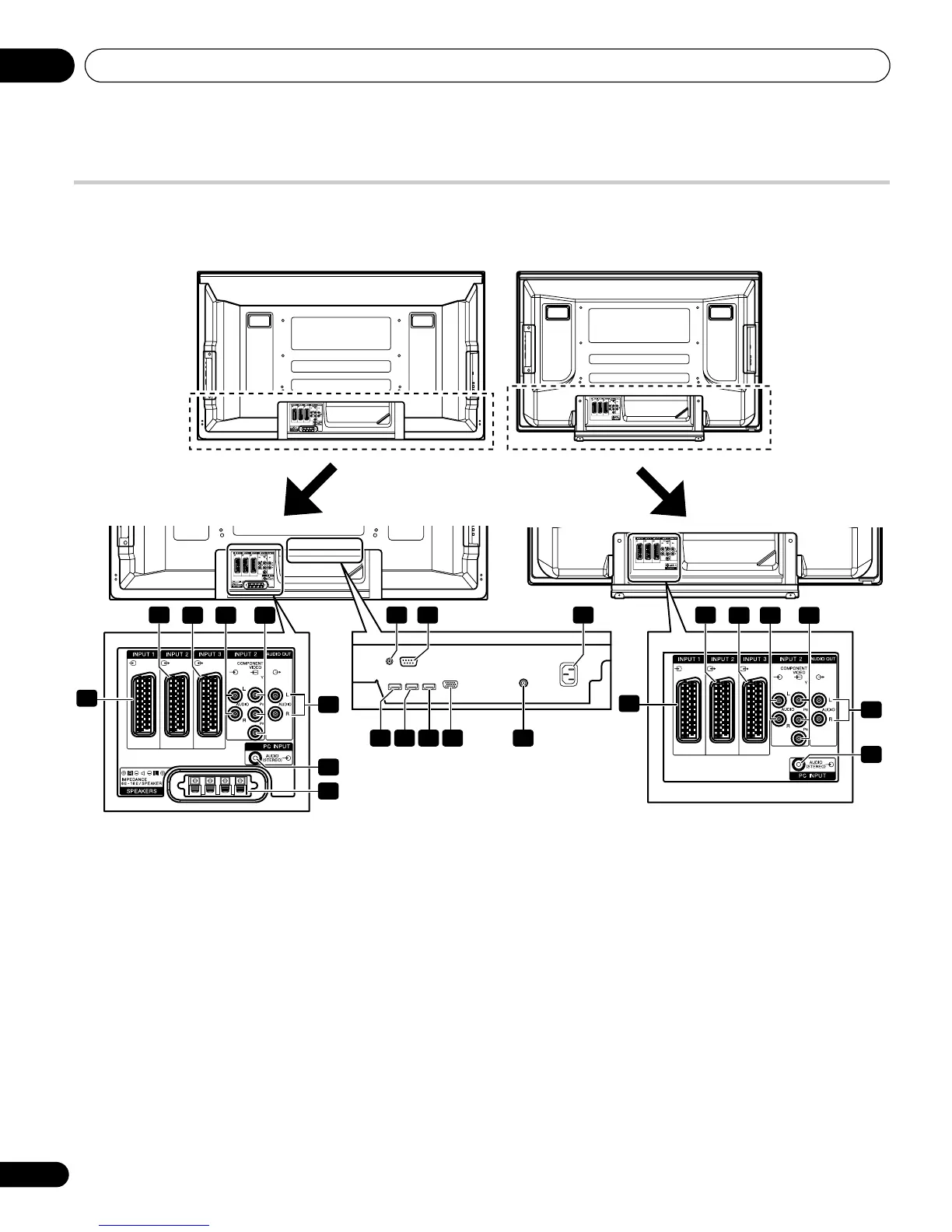

(Rear)
1 AC IN terminal
2 RS-232C terminal (used for factory setup)
3 CONTROL OUT terminal (supports SR+)
4 INPUT 1 terminal (HDMI)
5 INPUT 3 terminal (HDMI)
6 INPUT 4 terminal (HDMI)
7 PC INPUT terminal (Analogue RGB)
8 ANT (Antenna) input terminal
9 INPUT 1 terminal (SCART)
10 INPUT 2 terminal (SCART)
11 INPUT 3 terminal (SCART)
12 INPUT 2 terminals (Audio)
13 INPUT 2 terminals (COMPONENT VIDEO: Y, P
B
, P
R
)
14 AUDIO OUT terminals
15 PC INPUT terminal (Audio)
16 SPEAKERS terminals (right/left)
14
PDP-5080XA PDP-4280XA
9
10
11 12 13
15
16
3 2 1
6 7
8
54
14
9
10
11 12 13
15
The terminals from 1 to 8 are the same as the PDP-5080XA.
*For exact terminal positions, refer to the
terminal position sheet located near the
terminal compartment.

Pioneer PDP-5080XA Specifications

General

Depth	15 mm
Width	1224 mm
Height	717 mm
Weight	34400 g
I/O ports	1 x RCA AV
Tuner type	Analog
Audio system	SRS, TruBass
Product color	Black
Noise reduction	Yes
RMS rated power	17 W
Display diagonal	50 \
Display language	CZ, DK, NL, EN, FN, FR, DE, GR, IT, NR, PL, RU, SP, SE, UA
Channels quantity	999 channels
Composite video in	1
Display resolution	1365 x 768 pixels
Display technology	Plasma
Power requirements	AC220 - 240V, 50/60Hz
SCART ports quantity	3
Contrast ratio (typical)	-
Power consumption (standby)	0.3 W
Power consumption (typical)	361 W
