Pioneer PDP-5080XA User Manual

Part names 04
11
En
English
Chapter 4

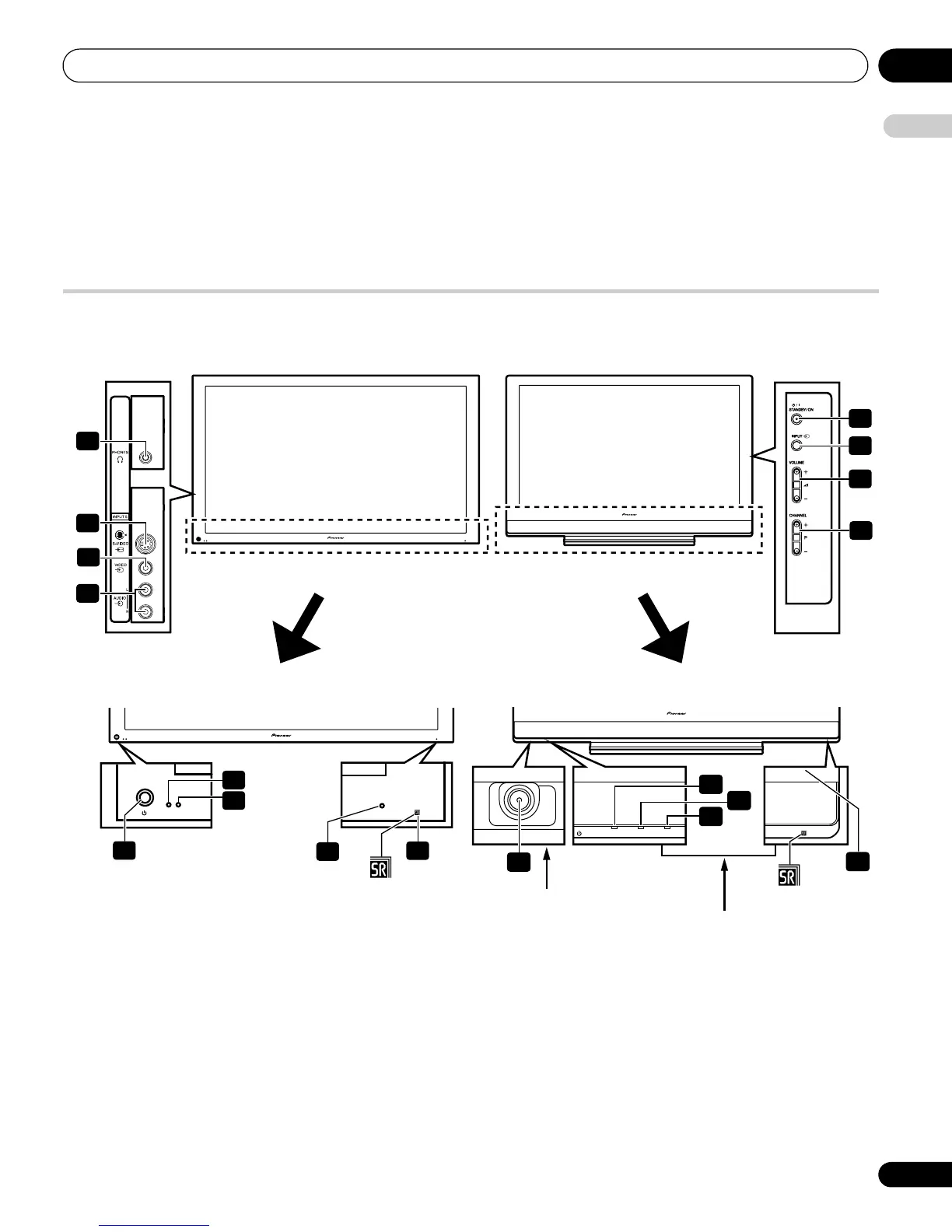

Part names
Plasma television
(Front)
1  button (If the button is off, the power will not turn on even
when
, 0 to 9 on the remote control unit or STANDBY/ON on
the plasma television are pressed.)
2 POWER ON indicator
3 STANDBY indicator
4 SLEEP indicator
5 Remote control sensor
6 STANDBY/ON button
7 INPUT button
8 VOLUME +/– buttons
9 CHANNEL +/– buttons
10 PHONES output terminal
11 INPUT 5 terminal (S-VIDEO)
12 INPUT 5 terminal (VIDEO)
13 INPUT 5 terminals (AUDIO)
SLEEP
ON STANDBY
SLEEPON STANDBY
Viewed from the underside of the display
Viewed from the front of the display
Side PDP-5080XA PDP-4280XA Side
1
4
3
2
5
5
4
3
2
1
6
8
9
7
10
12
11
13
The terminals on side panels are common to the PDP-5080XA and
PDP-4280XA.

Pioneer PDP-5080XA Specifications

General

Depth	15 mm
Width	1224 mm
Height	717 mm
Weight	34400 g
I/O ports	1 x RCA AV
Tuner type	Analog
Audio system	SRS, TruBass
Product color	Black
Noise reduction	Yes
RMS rated power	17 W
Display diagonal	50 \
Display language	CZ, DK, NL, EN, FN, FR, DE, GR, IT, NR, PL, RU, SP, SE, UA
Channels quantity	999 channels
Composite video in	1
Display resolution	1365 x 768 pixels
Display technology	Plasma
Power requirements	AC220 - 240V, 50/60Hz
SCART ports quantity	3
Contrast ratio (typical)	-
Power consumption (standby)	0.3 W
Power consumption (typical)	361 W
