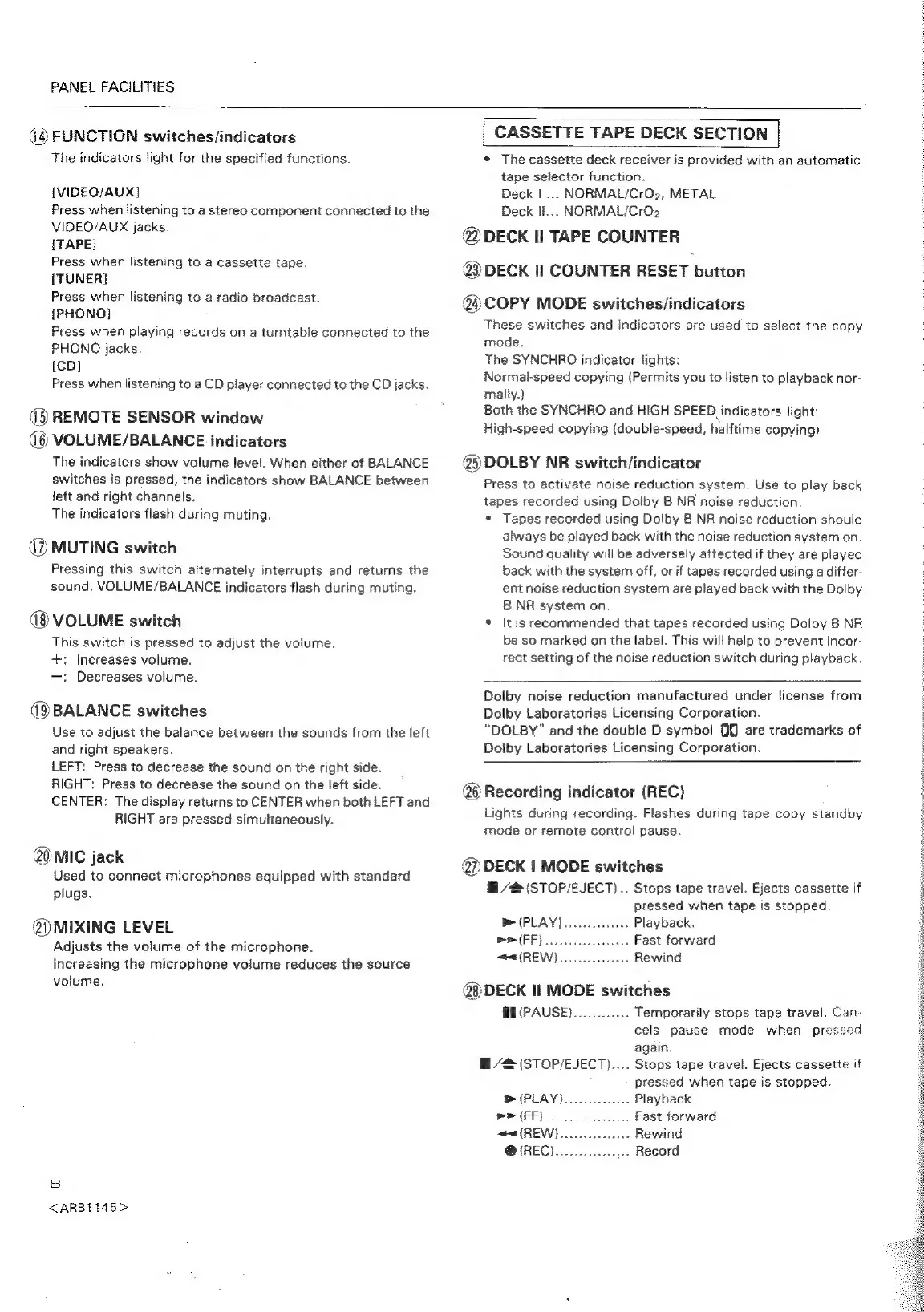

PANEL FACILITIES
44 FUNCTION switches/indicators
The indicators light for the specified functions.
VIDEO/AUX]
Press when listening to a stereo component connected to the
VIDEO/AUX jacks.
[TAPE]
Press when listening to a cassette tape.
TUNER]
Press when listening to a radio broadcast.
PHONO]
Press when playing records on a turntable connected to the
PHONO jacks.
CD]
Press when listening to a CD player connected to the CD jacks.
45 REMOTE SENSOR window
a6) VOLUME/BALANCE indicators
The indicators show volume level. When either of BALANCE
switches is pressed, the indicators show BALANCE between
left and right channels.
The indicators flash during muting.
(? MUTING switch
Pressing this switch alternately interrupts and returns the
sound. VOLUME/BALANCE indicators flash during muting.
VOLUME switch
This switch is pressed to adjust the volume.
+: Increases volume.
—: Decreases volume.
(9 BALANCE switches
Use to adjust the balance between the sounds from the left
and right speakers.
LEFT: Press to decrease the sound on the right side.
RIGHT: Press to decrease the sound on the left side.
CENTER: The display returns to CENTER when both LEFT and
RIGHT are pressed simultaneously.
20 MIC jack
Used to connect microphones equipped with standard
plugs.
@) MIXING LEVEL
Adjusts the volume of the microphone.
Increasing the microphone volume reduces the source
volume.
8
<ARB1145>
CASSETTE TAPE DECK SECTION
© The cassette deck receiver is provided with an automatic
tape selector function.
Deck | ... NORMAL/CrOz, METAL
Deck li... NORMAL/CrO2z
@ DECK tl TAPE COUNTER
23 DECK Il COUNTER RESET button
@ COPY MODE switches/indicators
These switches and indicators are used to select the copy
mode.
The SYNCHRO indicator lights:
Normal-speed copying (Permits you to listen to playback nor-
mally.)
Both the SYNCHRO and HIGH SPEED indicators light:
High-speed copying (double-speed, halftime copying)
25 DOLBY NR switch/indicator
Press to activate noise reduction system. Use to play back
tapes recorded using Dolby B NR noise reduction.
° Tapes recorded using Dolby B NR noise reduction should
always be played back with the noise reduction system on.
Sound quality will be adversely affected if they are played
back with the system off, or if tapes recorded using a differ-
ent noise reduction system are played back with the Dolby
B NR system on.
° Itis recommended that tapes recorded using Dolby B NR
be so marked on the label. This will help to prevent incor-
rect setting of the noise reduction switch during playback.
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol! 0 are trademarks of
Dolby Laboratories Licensing Corporation.
6) Recording indicator (REC)
Lights during recording. Flashes during tape copy standby
mode or remote control pause.
QP DECK | MODE switches
B /@(STOP/EJECT).. Stops tape travel. Ejects cassette if
pressed when tape is stopped.
.. Playback.
Fast forward
.. Rewind
B (PLAY)
ee (FF)...
<ta(REW}...
@ DECK li MODE switches
8B (PAUSE)... Temporarily stops tape travel. Can
cels pause mode when pressed
again.
@ /@ (STOP/EJECT}.... Stops tape travel. Ejects cassette if
pressed when tape is stopped.
B (PLAY)... Playback
ee (FF)... .. Fast forward
<< (REW) Rewind
@ (REC)... Record
