Pioneer UDP-LX500 User Manual

15
En
01

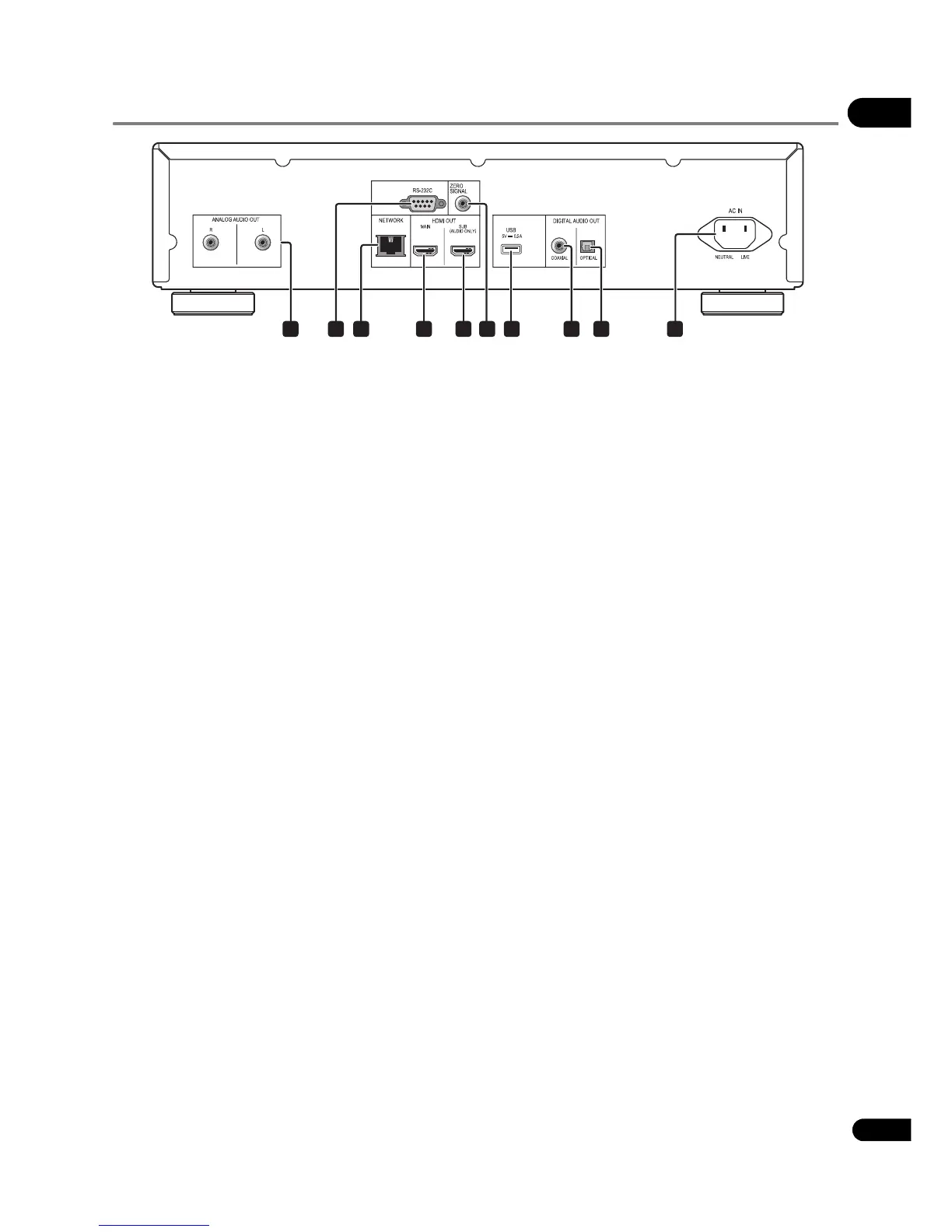

Rear Panel
1 ANALOG AUDIO OUT terminals – (page 20)
2 RS-232C terminal – Connect a home control
system equipped with an RS-232C port. For
installing a home control system, contact a
specialized stores.
3NETWORK terminal – (page 22)
4 HDMI OUT MAIN terminal – Connect with an
HDMI-compatible TV or/and AV receiver or
amplifier. This is the terminal that is used
mainly. (page 16)
5 HDMI OUT SUB (AUDIO ONLY) terminal –
Connect with an HDMI compatible AV receiver
or amplifier. This terminal is for the exclusive
use of audio output. (page 16)
6 ZERO SIGNAL terminal – (page 21)
7USB port – (page 21)
8 DIGITAL AUDIO OUT (COAXIAL) terminal –
(page 20)
9 DIGITAL AUDIO OUT (OPTICAL) terminal –
(page 20)
10 AC IN – (page 22)
54 6 7 8 9 10 1 2 3

Pioneer UDP-LX500 Specifications

General

3D	-
Device type	Blu-Ray player
Cassette deck	No
Product color	Black
USB 2.0 connectors	2
Firmware upgradeable	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.45 W
Power consumption (typical)	28 W
Playback disc types	BD-R, BD-R DL, BD-RE, BD-RE DL, CD, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Disc types supported	BD, BD-R, BD-R DL, BD-RE, BD-RE DL, CD, CD-DA, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Playback disc formats	CD audio, DVD-Audio, DVD-Video

Weight and Dimensions

Depth	337 mm
Width	435 mm
Height	118 mm
Weight	10300 g
