 About the PQLS function
PQLS (Precision Quartz Lock System) is a digital
audio transfer control technology using the HDMI
control function. The player’s output signals are
controlled from the AV receiver to achieve high
sound quality playback using the receiver’s quartz
oscillator. This eliminates the influence of the jitter
generated during signal transfer which can
adversely affect the sound quality.
• This player supports the functions below.
– The “PQLS 2ch Audio” function that is
activated when playing music CDs (CD-DAs)
– The “PQLS Multi Surround” function that is
activated when playing all discs (BDs, DVDs,
etc.) with linear PCM audio output
– The “PQLS Bitstream” function that is
activated when playing with bitstream audio
output
• The various PQLS functions are activated when
a Pioneer AV receiver supporting the PQLS
functions is connected directly to the HDMI
OUT terminal with an HDMI cable and the
player’s settings are set as shown below
(page 41).
Control: On
• Also refer to the AV receiver’s operating
instructions.
• See the Pioneer website for AV receivers
supporting the PQLS function.
Caution
• Turn on the power of the AV receiver
connected to the HDMI OUT terminal, then start
playback of the disc.
• Connect the player directly to the Pioneer AV
receiver compatible with PQLS function.
Interrupting a direct connection with an
amplifier or AV converter (such as an HDMI
switch) can cause malfunction.

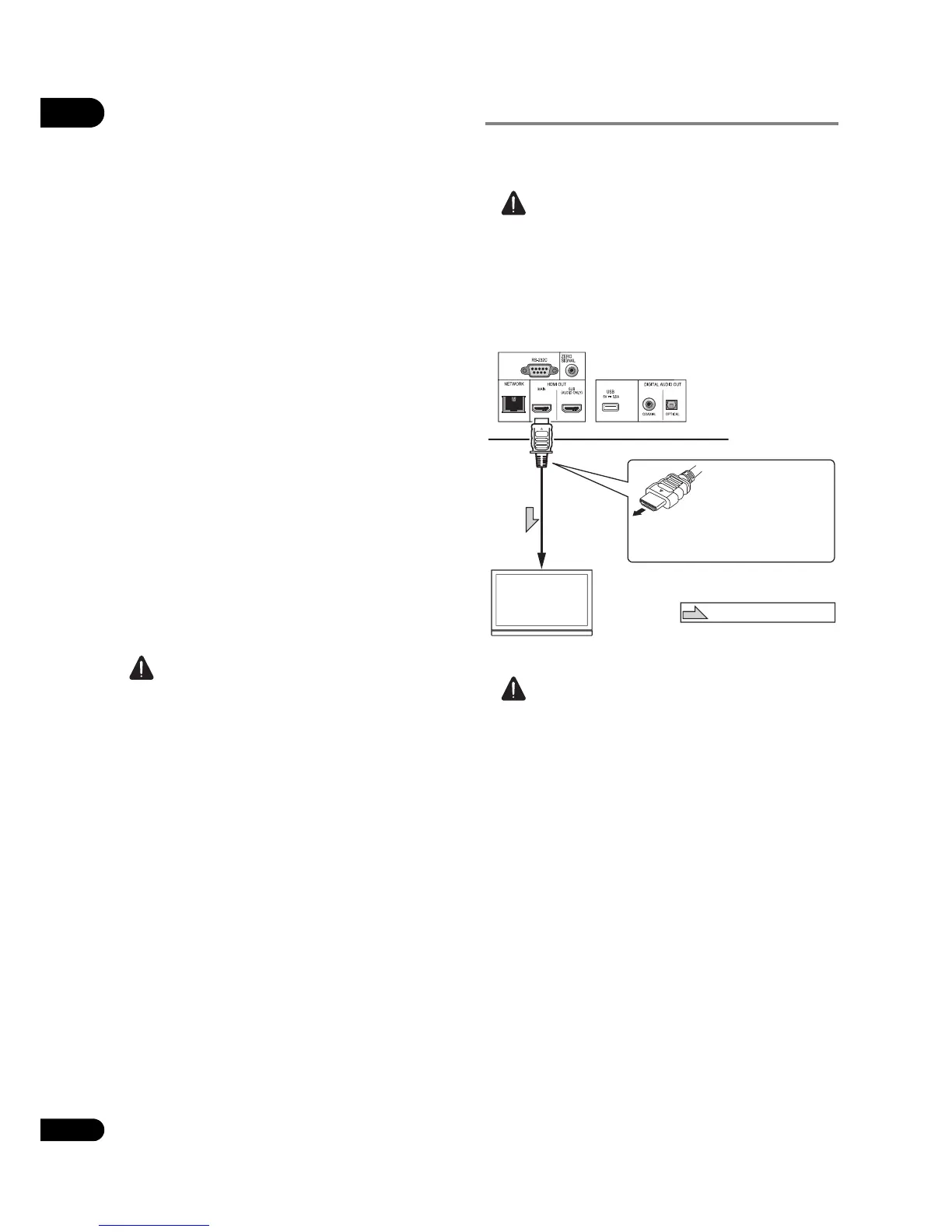

Connecting a TV
See Connecting an AV receiver or amplifier on
page 19 to connect an AV receiver or amplifier
using an HDMI cable.
Caution
• Hold the plug when connecting and
disconnecting the cable.
• Placing a load on the plug could result in faulty
contact and no video signals being output.
Connect a TV to the HDMI OUT (MAIN) terminal.
Caution
• Make sure to set HDMI Mode to Single
(page 41).
TV
Match the direction of
the plug to the terminal
and insert straight.
To HDMI
input terminal
HDMI cable
(commercially
available)
It is also possible to connect to
an AV receiver or amplifier
using an HDMI cable.
Direction of signal flow
UDP-LX500’s rear panel

Pioneer UDP-LX500 Specifications

General

3D	-
Device type	Blu-Ray player
Cassette deck	No
Product color	Black
USB 2.0 connectors	2
Firmware upgradeable	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.45 W
Power consumption (typical)	28 W
Playback disc types	BD-R, BD-R DL, BD-RE, BD-RE DL, CD, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Disc types supported	BD, BD-R, BD-R DL, BD-RE, BD-RE DL, CD, CD-DA, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Playback disc formats	CD audio, DVD-Audio, DVD-Video

Weight and Dimensions

Depth	337 mm
Width	435 mm
Height	118 mm
Weight	10300 g
