Pioneer UDP-LX500 User Manual

02
20
En
Connecting audio
cables

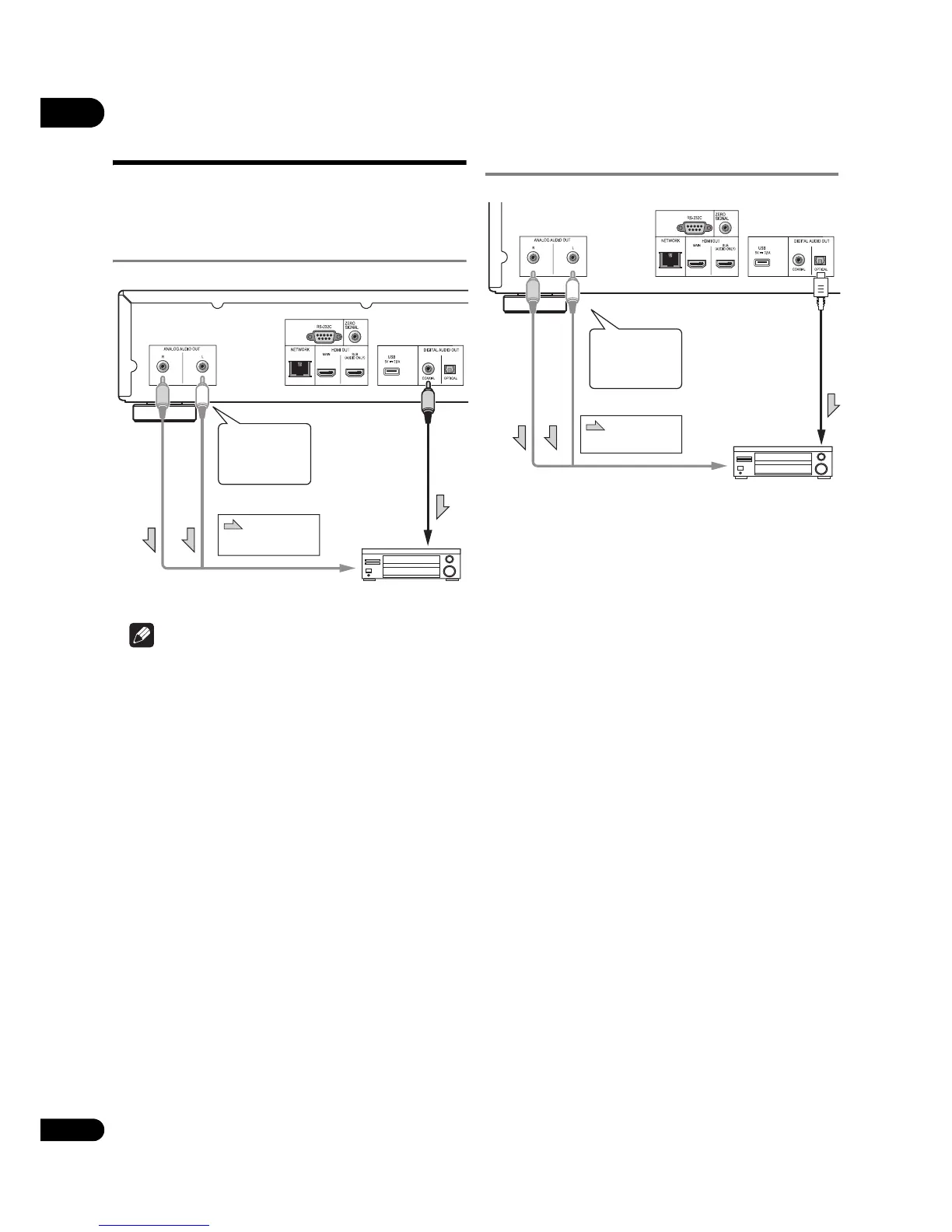

Connecting an AV receiver
or amplifier using an
coaxial digital audio cable
Note
• The volume of analog output audio may be low
depending on the setting of this device and
contents being played.
Connecting an AV receiver
or amplifier using an
optical digital audio cable
AV receiver or amplifier
UDP-LX500’s rear panel
Direction of
signal flow
White
Red
To audio input
terminals
Audio cable
(commercially
available)
Coaxial digital
audio cable
(commercially
available)
To coaxial
digital audio
input terminal
2-channel
analog audio
can also be
connected.
AV receiver or amplifier
UDP-LX500’s rear panel
Direction of
signal flow
White
Red
To audio input
terminals
Optical digital
audio cable
(commercially
available)
To optical
digital audio
input terminal
2-channel
analog audio
can also be
connected.
Audio cable
(commercially
available)

Pioneer UDP-LX500 Specifications

General

3D	-
Device type	Blu-Ray player
Cassette deck	No
Product color	Black
USB 2.0 connectors	2
Firmware upgradeable	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.45 W
Power consumption (typical)	28 W
Playback disc types	BD-R, BD-R DL, BD-RE, BD-RE DL, CD, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Disc types supported	BD, BD-R, BD-R DL, BD-RE, BD-RE DL, CD, CD-DA, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Playback disc formats	CD audio, DVD-Audio, DVD-Video

Weight and Dimensions

Depth	337 mm
Width	435 mm
Height	118 mm
Weight	10300 g
