XR-VS500D, XR-VS300D
5
Notes : For PCB ASSEMBLIES, Refer to “PCB PARTS LIST”, “3. SCHEMATIC DIAGRAM” and “4. PCB CONNECTION DIAGRAM”.
EXPLODED VIEWS
Part No.
Ref. No. Mark Symbol and Description XXA3019 XXA3018 Remarks
(XR-A9800D) (XR-VS300D)
P5-10 CONNECT ASSY (6CH) XWX3023 Not used
P5-10 CONNECT ASSY (2CH) Not used XWX3019
P5-14 25P Flexible Cable XDD3046 Not used
P5-14 15P Flexible Cable Not used XDD3049
P5-18 30P Flexible Cable XDD3044 Not used
P5-18 16P Flexible Cable Not used XDD3043
P5-21 7P Flexible Cable/30V XDD3053 ADD7197
P5-23 DVD Base XNG3034 ANG7262
P5-24 DVD Shield XNK3006 ANK7066
P5-55 21P Flexible Cable XDD3052 Not used
P5-55 7P Flexible Cable Not used XDD3045

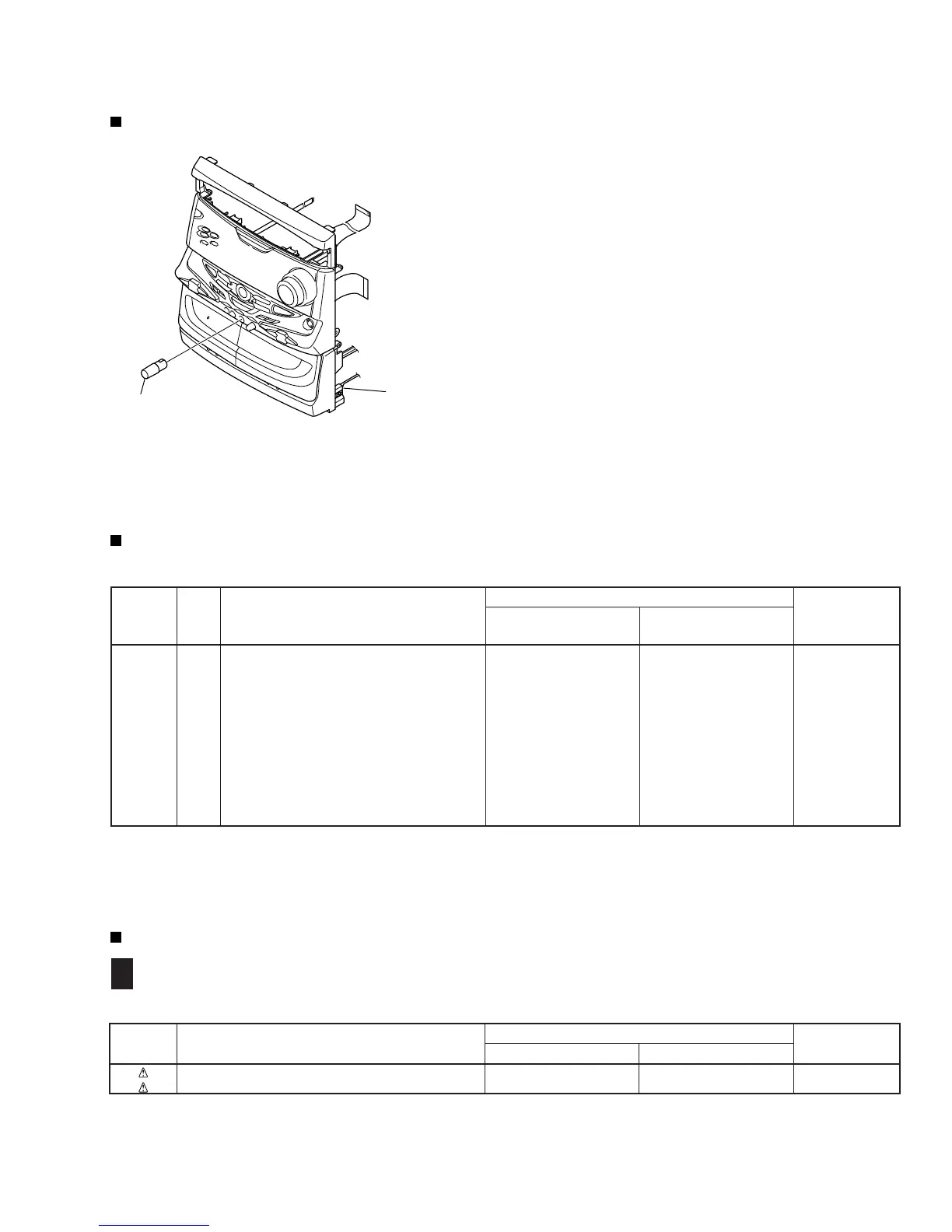

XXA3018 and XXA3019 are constructed the same except for the following :
CONTRAST OF $M MECHA. DVD
Front Panel
1
CONTRAST OF PCB ASSEMBLIES
SECONDARY ASSY
F
J
XWZ3317 and XWZ3323 are constructed the same except for the following :
Mark Symbol and Description
Part No.
Remarks
XWZ3323 XWZ3317
C33, C34 (4700µF/80V) ACH7071 Not used
C33, C34 (4700µF/71V) Not used XCH3001
To Next Page
