, PIPER SENECA II SERVICE MANUAL
26
27~-
1. COMBUSTION AIR BLOWER AND MOTOR ASSEMBLY
2. ADAPTER ASSEMBLY - BLOWER INLET
3. MOUNT· COMBUSTION AIR BLOWER SUPPORT
4. COMBUSTION AIR BLOWER AND MOTOR
5. ADAPTER· OUTLET
6. SCREW-AN530-6R6
7. WASHER· AN936A6
8. FLANGE· INLET
9. SCREW-AN530-6R6
JO. WASHER -AN936A6
I I. CAPACITOR
12. SCREW - AN530-6R6
13. WASHER -AN936A6
14. SLEEVE· HIGH TEMPERATURE
15. HOUSING - BLOWER
16. SCREW-AN530-6R6
17. WASHER -AN936A6
18. GASKET· BACK PLATE
19. FAN -COMBUSTION AIR BLOWER
20. PLATE - BACK
21. NUT - AN345 -10
22. WASHER -AN960-I0L
23. WASHER - AN936-3!0
24. SPACER
25. MOTOR ASSEMBLY -COMBUSTION AIR BLOWER
26. BRUSH ASSEMBLY
27, CAP· BRUSH ASSEMBLY
28. TEHMINAL - PREINSULATED
29. STRAP· CABLE
30, SWITCH ASSEMBLY· ADJUSTABLE DUCT
31. LEVER ASSEMBLY -SWITCH
32. SCREW-AN565D8H3
33. COVER· SWITCH
34, SWITCH - ADJUSTABLE DUCT
35. SPACER
CD
15
-~·
-\'-9
10
1
-~6

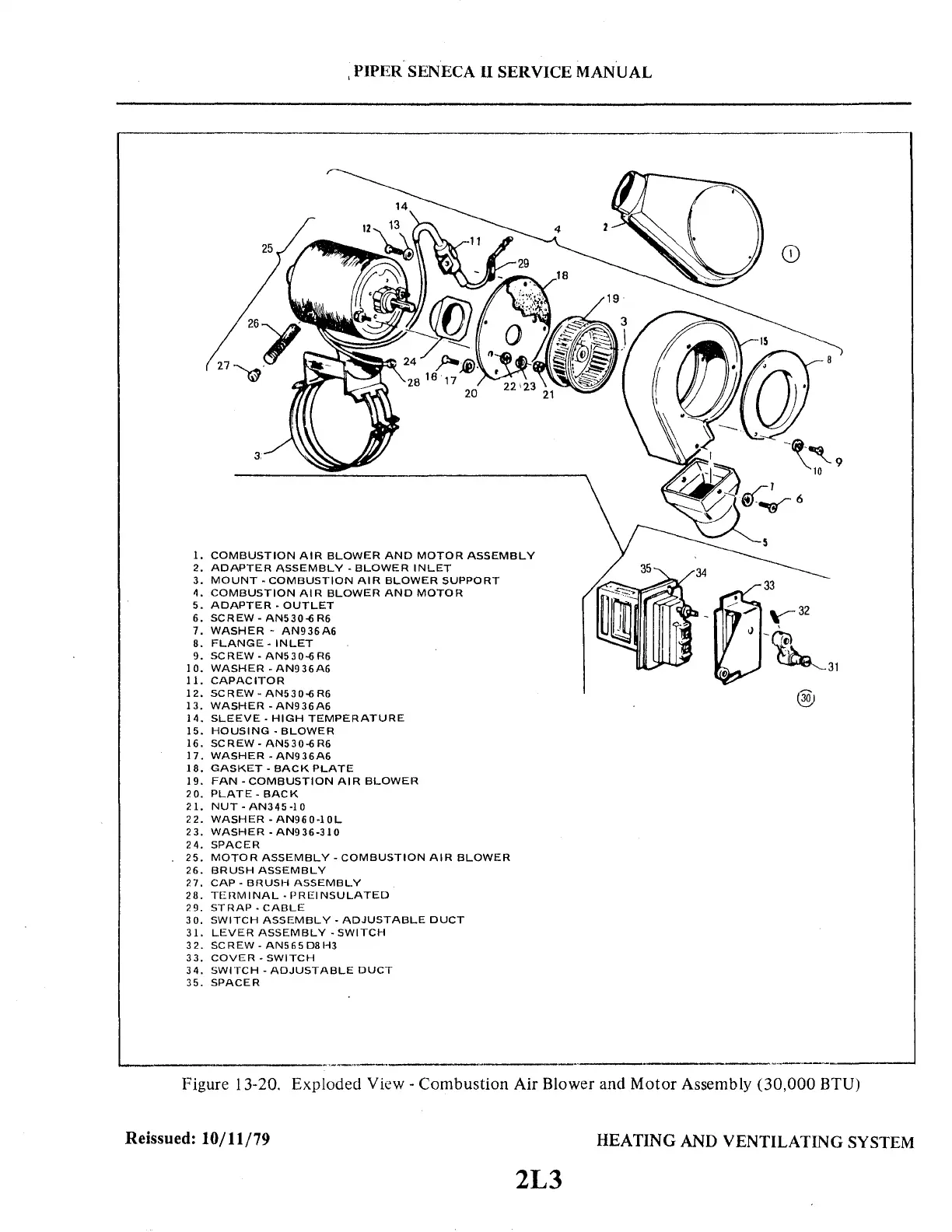

Figure 13-20. Exploded View - Combustion Air Blower and Motor Assembly (30,000 BTU)
Re~sued: 10/11/79
HEATING AND VENTILATING SYSTEM
2L3
