PIPER SENECA II SERVICE MANUAL
1971
13
1. COMBUSTION AIR BLOWER AND MOTOR ASSEMBLY
2. ADAPTER ASSEMBLY - BLOWER INLET
3. HOUSING - BLOWER OUTER HALF
4. COMBUSTION AIR BLOWER AND MOTOR
5. MOTOR ASSEMBLY -COMBUSTION AIR BLOWER
6. SET SCREW - BLOWER FAN
7. FAN - COMBUSTION AIR BLOWER
8. HOUSING - BLOWER INNER HALF
9. STRAP - CABLE
I 0. CAPACITOR
I I. BRUSH ASSEMBLY
12. CAP - BRUSH ASSEMBLY
'Cr
18
CD
21
- y-22
J_~
23
13. MOUNT - COMBUSTION Al R BLOWER SUPPORT
14. ELECTRICAL LEAD
15. SPACER
16. WASHER
17. LOCKNUT-AN345-10
18. SCREWS
19. SPACER
20- SWITCH - ADJUSTABLE DUCT
21- COVER - SWITCH
22. SCREW - AN565 DB H3
23. LEVER ASSEMBLY - SWITCH

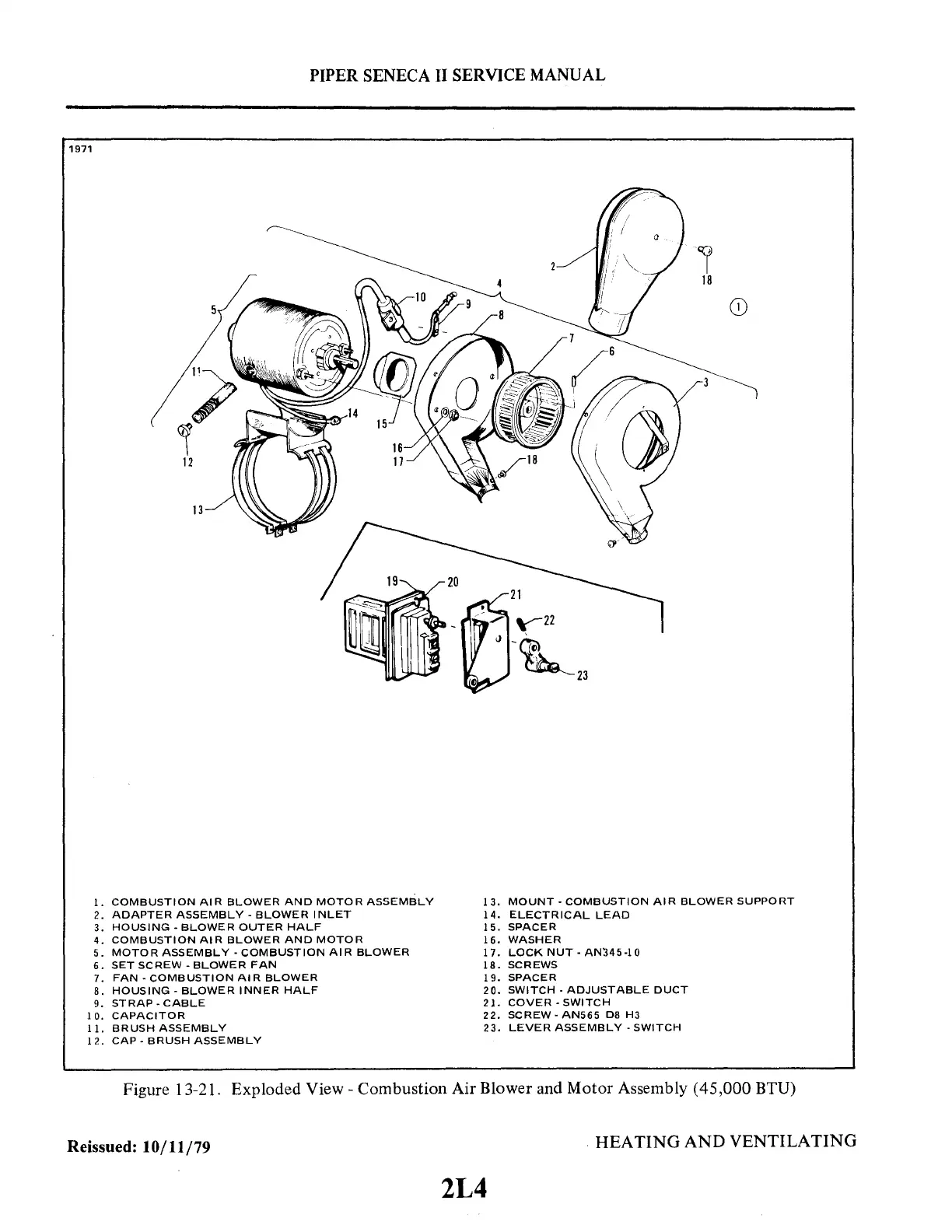

Figure 13-21. Exploded View - Combustion Air Blower and Motor Assembly (45,000 BTU)
Re~sued: 10/11/79
HEATING AND VENTILATING
2L4
