ENGLISH
5
1
2
3
4
5
7
8
9
10
11
12
14
13
15
16
6
MODEL UNIT ASSEMBLED (WxHxD) UNIT WEIGHT COOKING AREA
22
1,330 x 1,185 x 800 mm
/ 52.3 x 46.6 x 31.4 in
105.0 kg
/ 231.48 lb
Main
- 2,126.2 cm / 329.10 sq. in.
Upper Rack
- 1,771.9 cm / 274.65 sq. in.
TOTAL
- 3,898.1 cm / 603.75 sq. in.

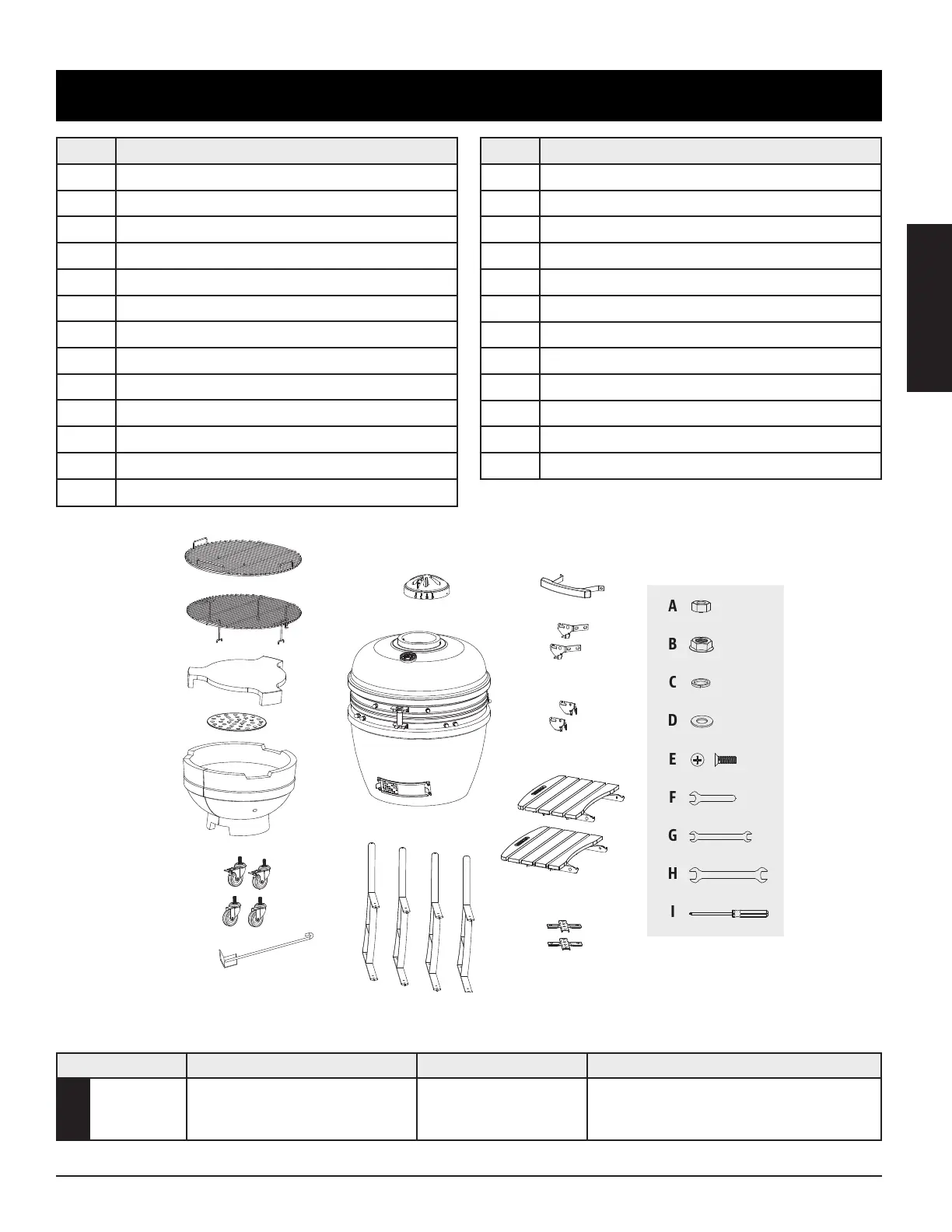

Part# Description
1 Main Cooking Grid (x1)
2 Upper Cooking Grid (x1)
3 Top Damper Vent (x1)
4 Ceramic Body (x1)
5 Lid Handle (x1)
6 Left Side Shelf Bracket (x2)
7 Right Side Shelf Bracket (x2)
8 Side Shelf (x2)
9 Heat Deflector (x1)
10 Charcoal Plate (x1)
11 Firebox (x1)
12 Support Bracket (x4)
13 Support Bracket Crosspiece (x2)
Part# Description
14 Locking Caster Wheel (x2)
15 Caster Wheel (x2)
16 Ash Tool (x1)
Nut - Small (x16)
Nut - Large (x4)
Locking Washer (x16)
D Washer (x16)
E Screw (x16)
F Flat Wrench (x1)
G Wrench 9/11 (x1)
H Wrench 16/19 (x1)
I Screwdriver (x1)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Care if parts are missing when assembling the unit.
