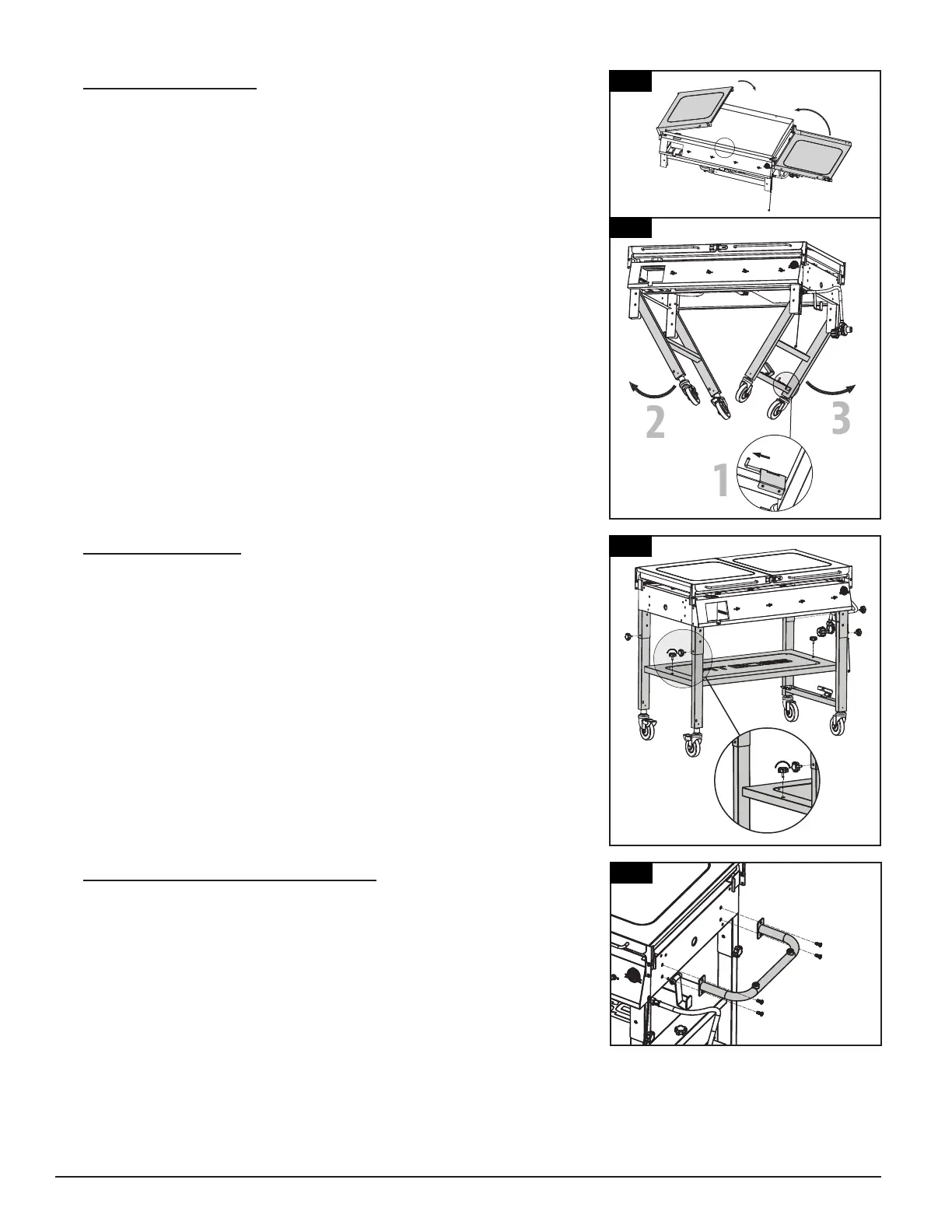

Parts Required:
6 x Bolt
(#B)
1 x Bottom Shelf
(#5)
Installation:
• Secure the cart legs into expanded position using four bolts, one for
each leg.
• Secure the Bottom Shelf to the Cart using two bolts.
5.
Parts Required:
2 x Side Shelf Handle
(#2)
8 x Screw
(#A)
Installation:
• Mount one Side Shelf Handle to the left side of the Firebox using four
screws. Repeat same installation of other Side Shelf Handle on the
right side of the Firebox.
3.
Parts Required:
1 x Firebox
(#1)
Installation:
• Close the side shelves and lock the front latch. Note illustration 3A.
• Unlock the cart of the griddle by pulling back on the locking system
pins near the wheel. Expand the legs completely. Note illustration 3B.
3
5
3
3
4
3
5
2
