MOUNTING DOOR LATCH ASSEMBLY
TO THE UPPER SMOKER CABINET
ASSEMBLY
Parts Required:
1 x Door Latch Assembly (#8)
1 X Upper Smoker Cabinet Assembly (#2)
2 x #10-24*1/2”(#C)
Installation:
•Attach the Door Latch Assembly (#8) to the
Upper Smoker Cabinet Assembly (#2)using

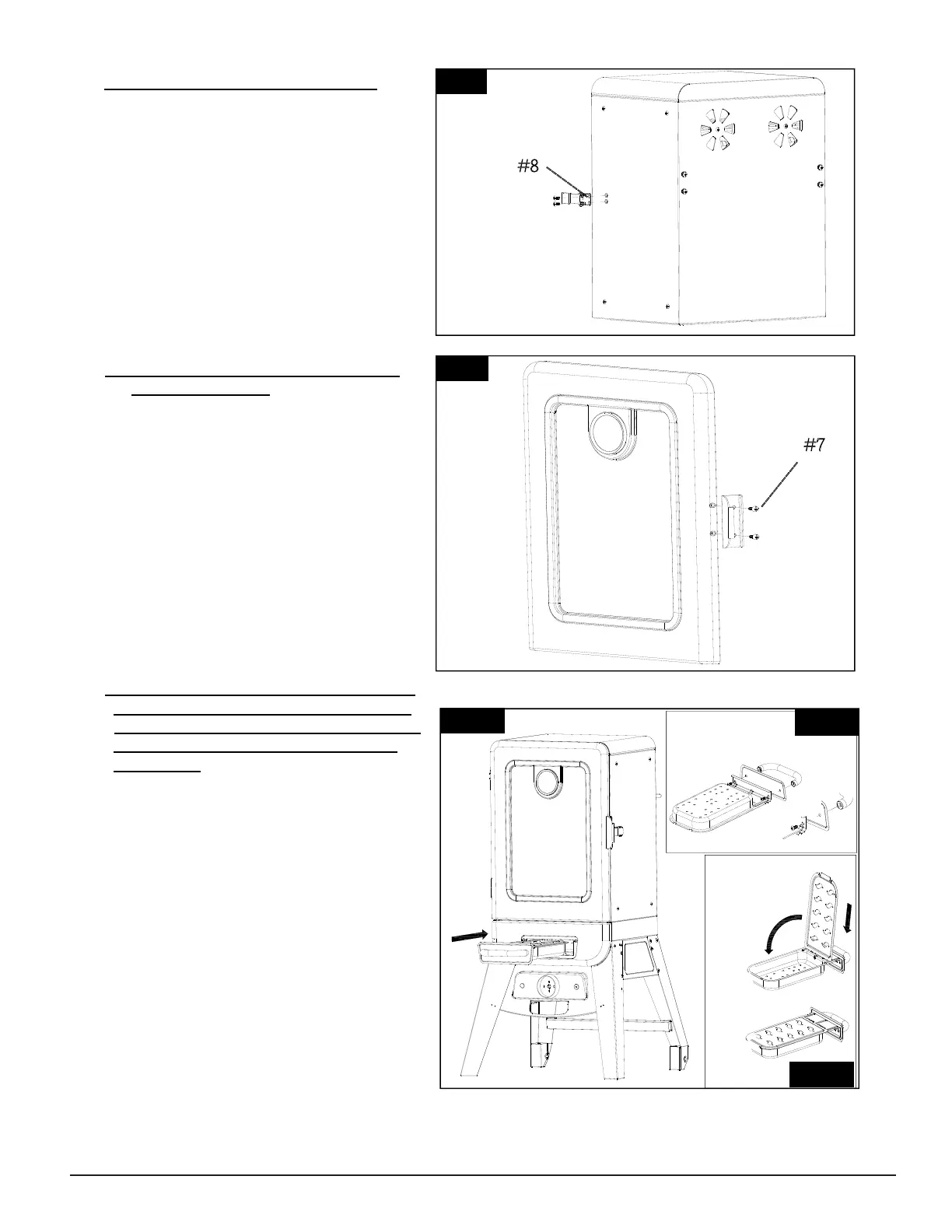

2 x #10-24*1/2”(#C)as Fig.16 shown.
Fig.16
17.
MOUNTING DOOR HANDLE TO THE
DOOR ASSEMBLY
Parts Required:
1 x Door Handle (#9)
1 X Door Assembly (#7)
2 x #10-24*1/2”(#C)
Installation:
• Attach the Door Handle (#9) to the
Door Assembly (#7) using 2 x
#10-24*1/2” (#C) as Fig.17 shown.
18.
MOUNTING WOOD CHIPS BOX HANDLE
ONTO WOOD CHIPS BOX AND SLIDING
WOOD CHIPS BOX WITH LID ASSEMBLY
INTO THE LOWER SMOKER CABINET
ASSEMBLY
Parts Required:
1 x Wood Chip Box Lid (#10)
1 x Wood Chip Box Assembly (#11)
1 X Lower Smoker Cabinet Assembly (#14)
1 X Wood Chip Box (#11.1)
1 X Wood Chip Box Front Panel (#11.2)
1 X Wood Chip Box Handle (#11.3)
2 X #10-24 x 1/2” (#C)
Installation:
•Assemble the Wood Chips Box Handle (#11.3)and
Wood Chips Box Front Panel (#11.2) onto the Wood
Chips Box (#11.1) using 2x #10-24x1/2" (#C) as Fig.
18.1 shown.
•Put the Wood Chip Box Lid (#10) on the Wood Chip
Box Assembly (#11) and slide Wood Chip Box onto
the Wood Chip Box support rails of Lower Smoker
Cabinet Assembly (#14) as Fig.18.2 shown.
Note: When removing the Wood Chip Box from the
smoker, lift up on the handle and pull out the Wood
Chip Box.
Fig.17
#8
-
-
-
-
-
-
-
-
#7
-
---
--
-
-
-
Fig.18
Fig.18.1
Fig.18.2
#11.3
-------
#11.2 ----
#11.1
-------
#11
-----------
